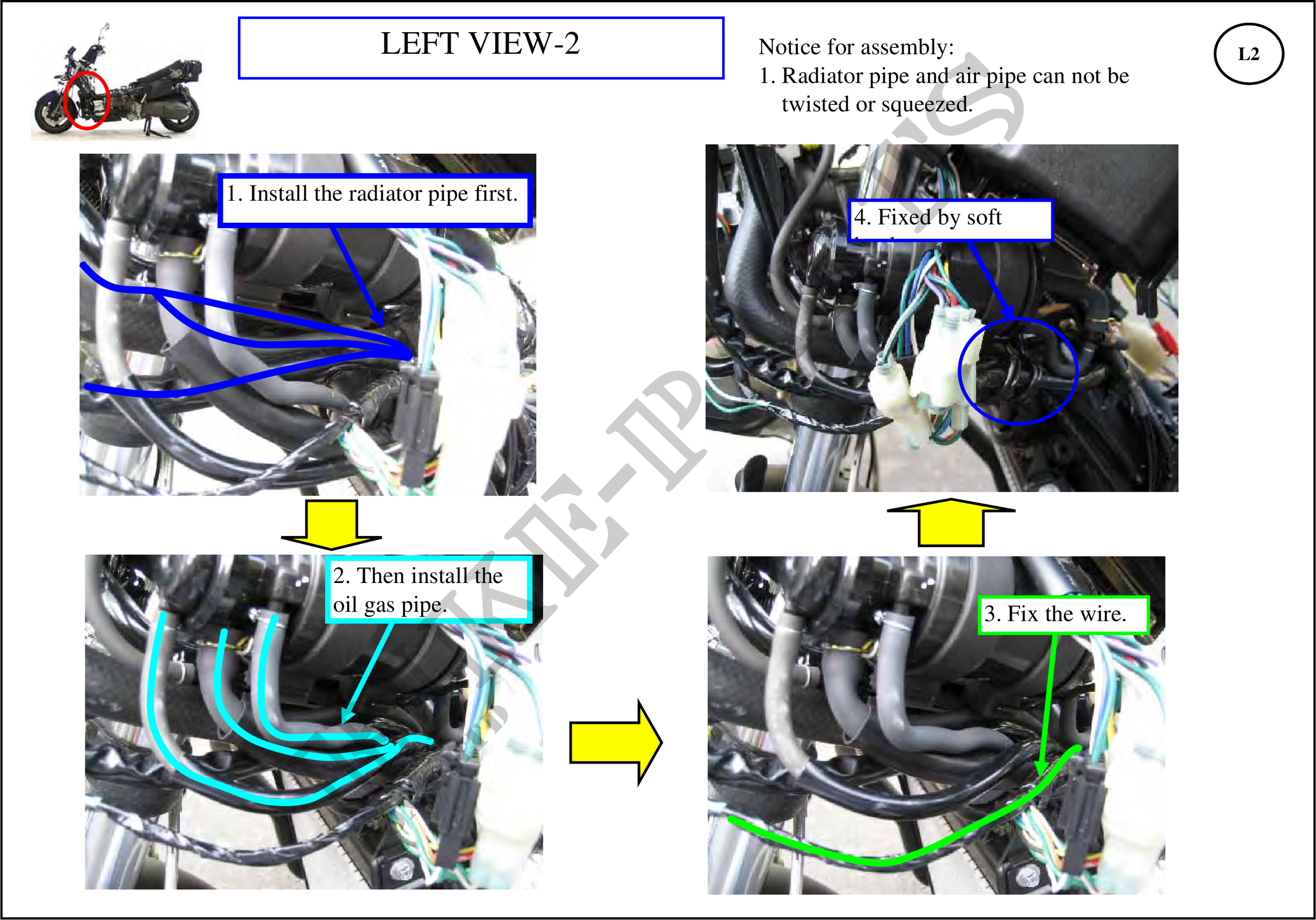

                            LEFT VIEW-2         Notice for assembly:                       L2
                                      1. Radiator pipe and air pipe can not be
                                         twisted or squeezed.


1. Install the radiator pipe first.
                                                4. Fixed by soft
                                                h k




            2. Then install the
            oil gas pipe.                                     3. Fix the wire.
