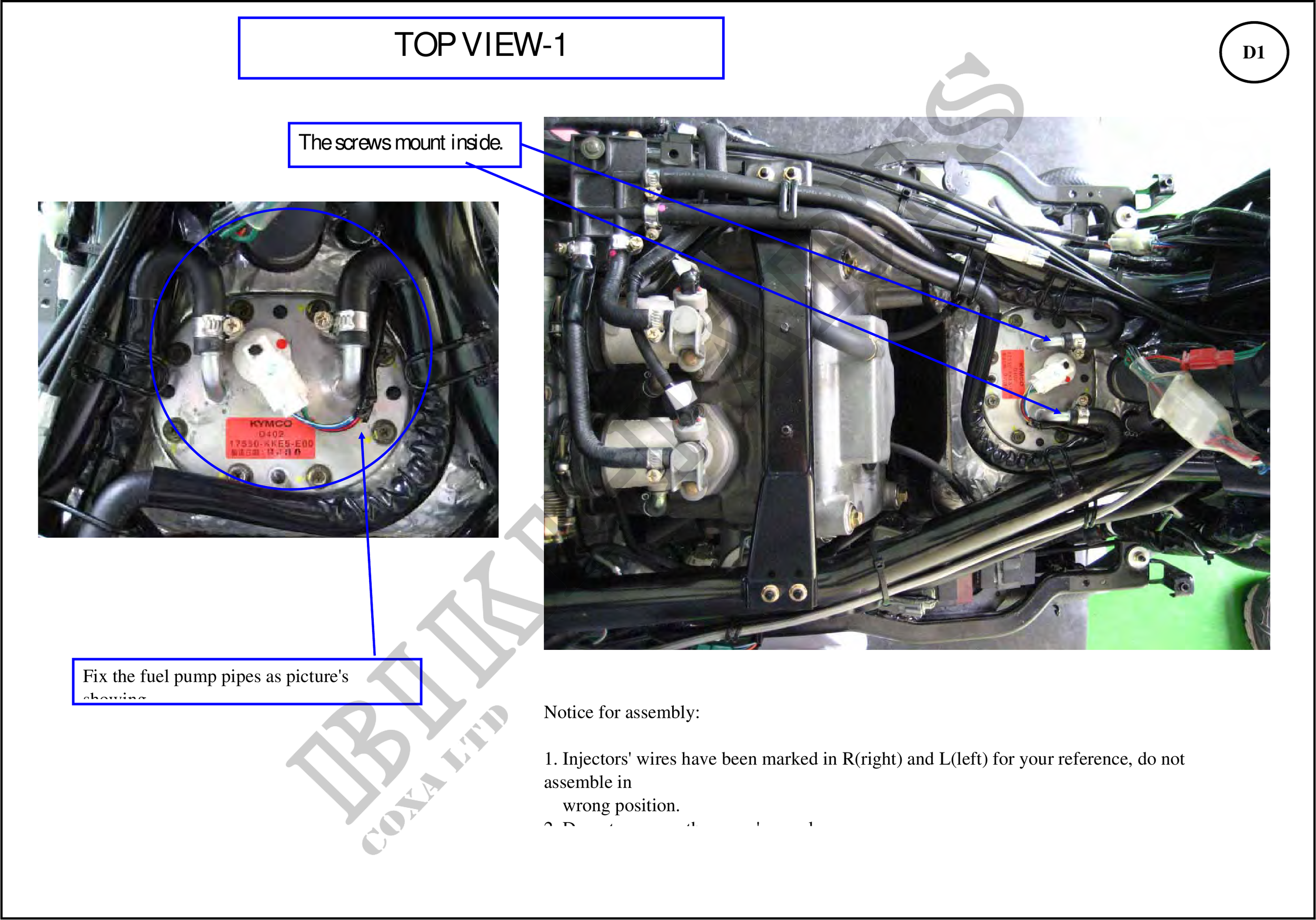

                                                  TOP VIEW-1                                                                                                D1



                             The screws mount inside.




Fix the fuel pump pipes as picture's
showing
                                                        Notice for assembly:

                                                        1. Injectors' wires have been marked in R(right) and L(left) for your reference, do not
                                                        assemble in
                                                           wrong position.
