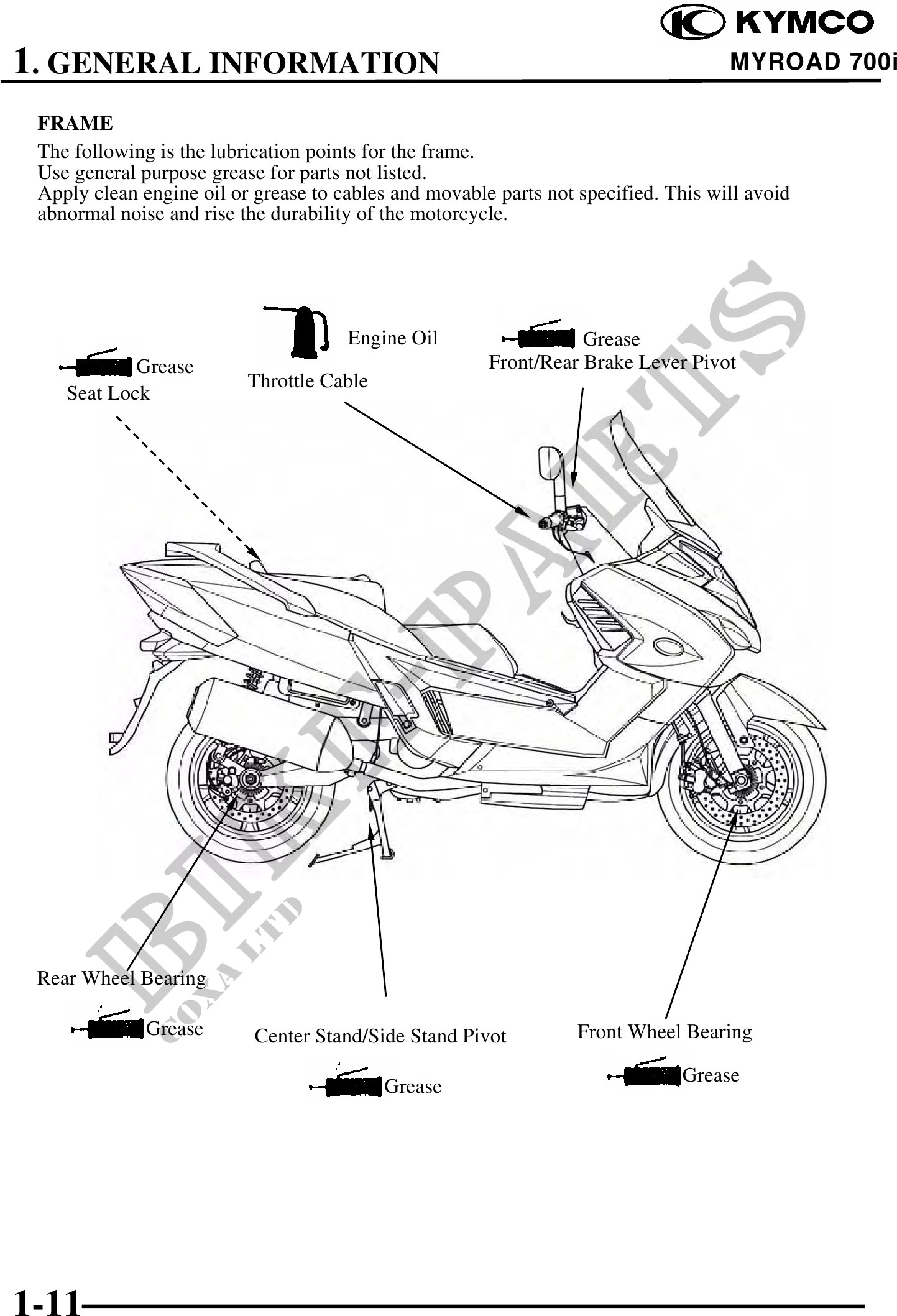

          1. GENERAL INFORMATION                                                              MYROAD 700i

 FRAME
 The following is the lubrication points for the frame.
 Use general purpose grease for parts not listed.
 Apply clean engine oil or grease to cables and movable parts not specified. This will avoid
 abnormal noise and rise the durability of the motorcycle.




                                      Engine Oil                  Grease
            Grease                                     Front/Rear Brake Lever Pivot
                          Throttle Cable
    Seat Lock




 Rear Wheel Bearing

              Grease       Center Stand/Side Stand Pivot          Front Wheel Bearing

                                                                              Grease
                                           Grease




1-11
