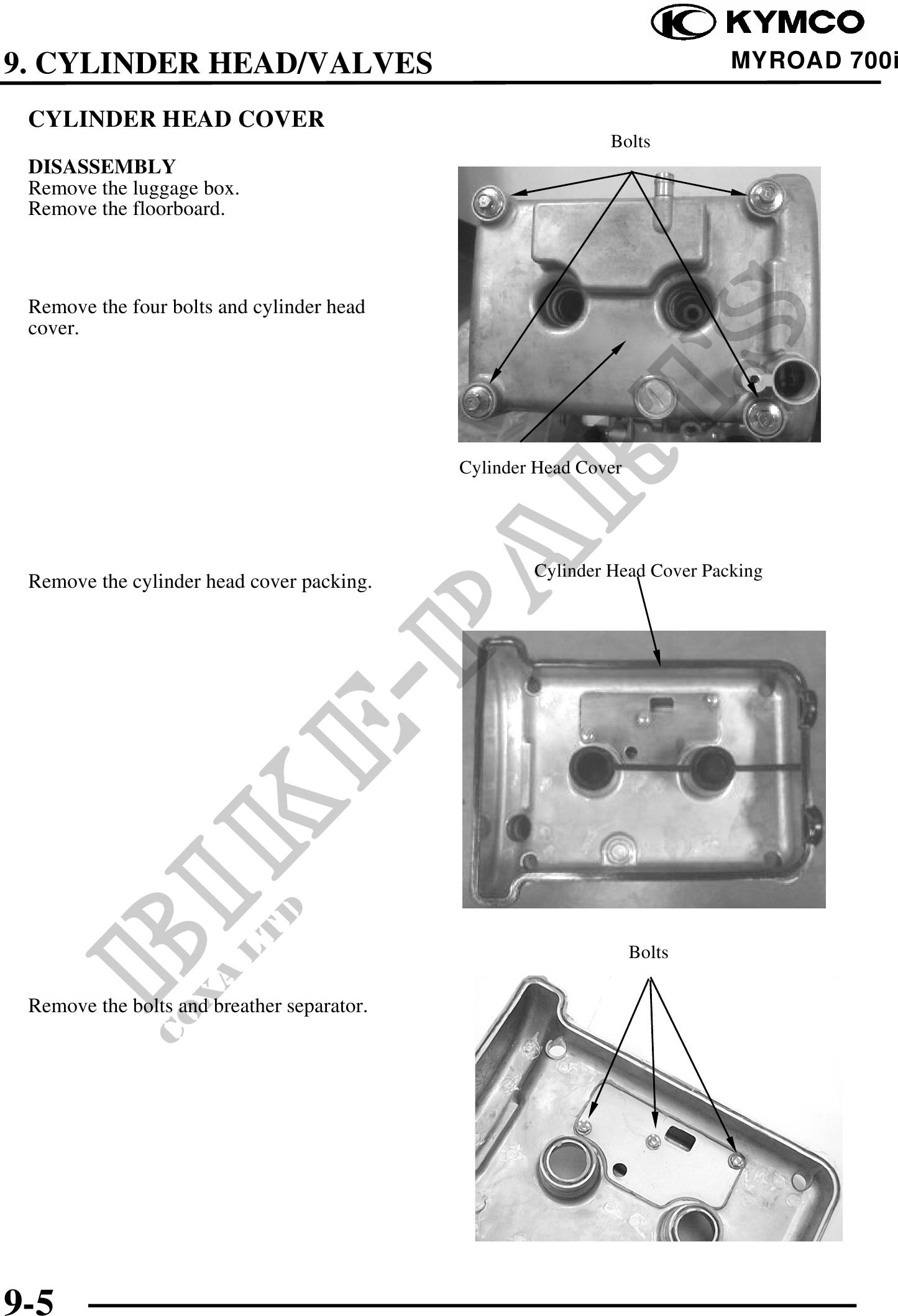

          9. CYLINDER HEAD/VALVES                                                    MYROAD 700i

 CYLINDER HEAD COVER
                                                             Bolts
 DISASSEMBLY
 Remove the luggage box.
 Remove the floorboard.



 Remove the four bolts and cylinder head
 cover.




                                            Cylinder Head Cover




                                                    Cylinder Head Cover Packing
 Remove the cylinder head cover packing.




                                                                  Bolts

 Remove the bolts and breather separator.




9-5
