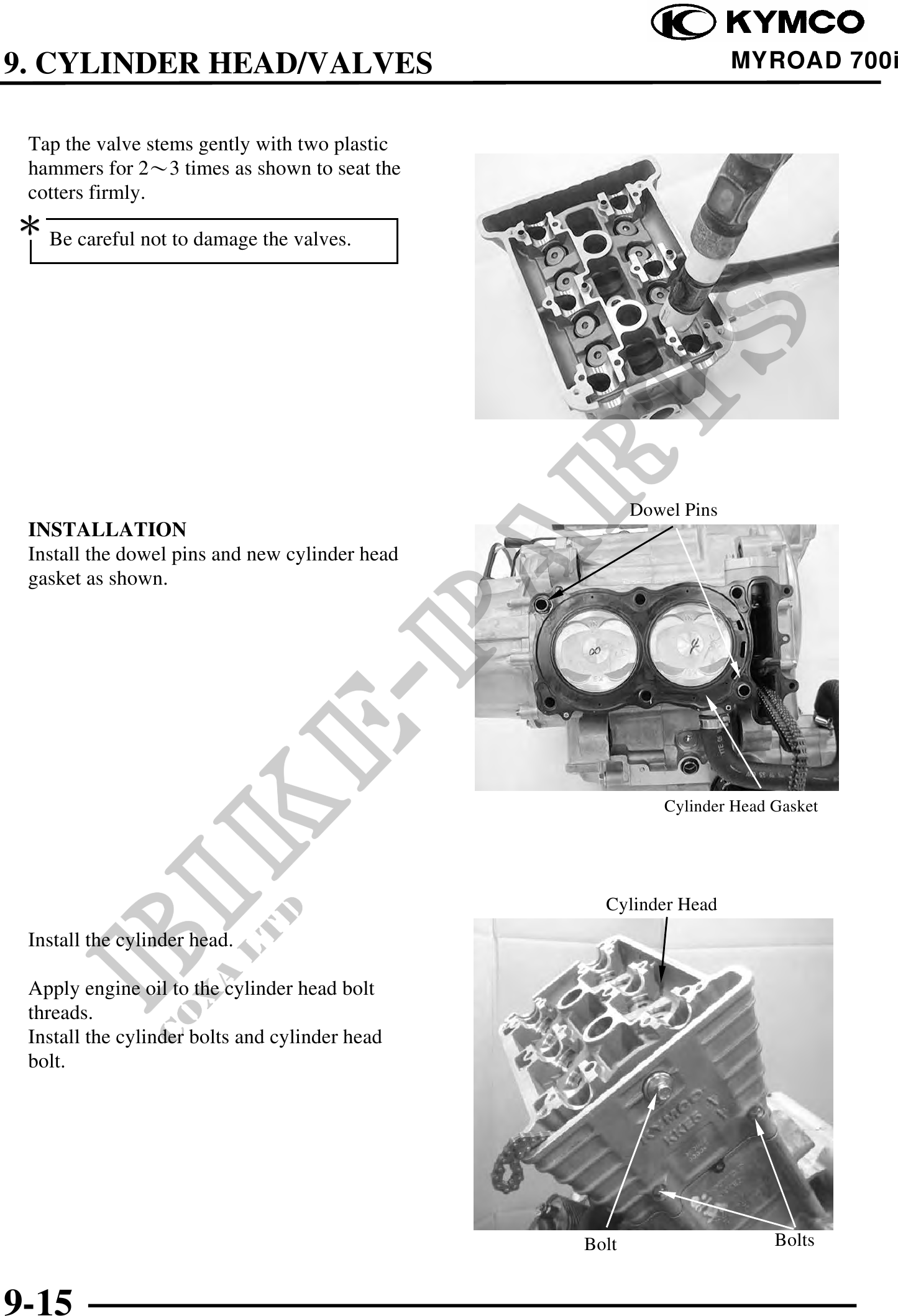

9. CYLINDER HEAD/VALVES MYROAD 700i
Tap the valve stems gently with two plastic
hammers for 23 times as shown to seat the
cotters firmly.
Be careful not to damage the valves.
Dowel Pins
INSTALLATION
Install the dowel pins and new cylinder head
gasket as shown.
Cylinder Head Gasket
Cylinder Head
Install the cylinder head.
Apply engine oil to the cylinder head bolt
threads.
Install the cylinder bolts and cylinder head
bolt.
Bolt Bolts
9-15
