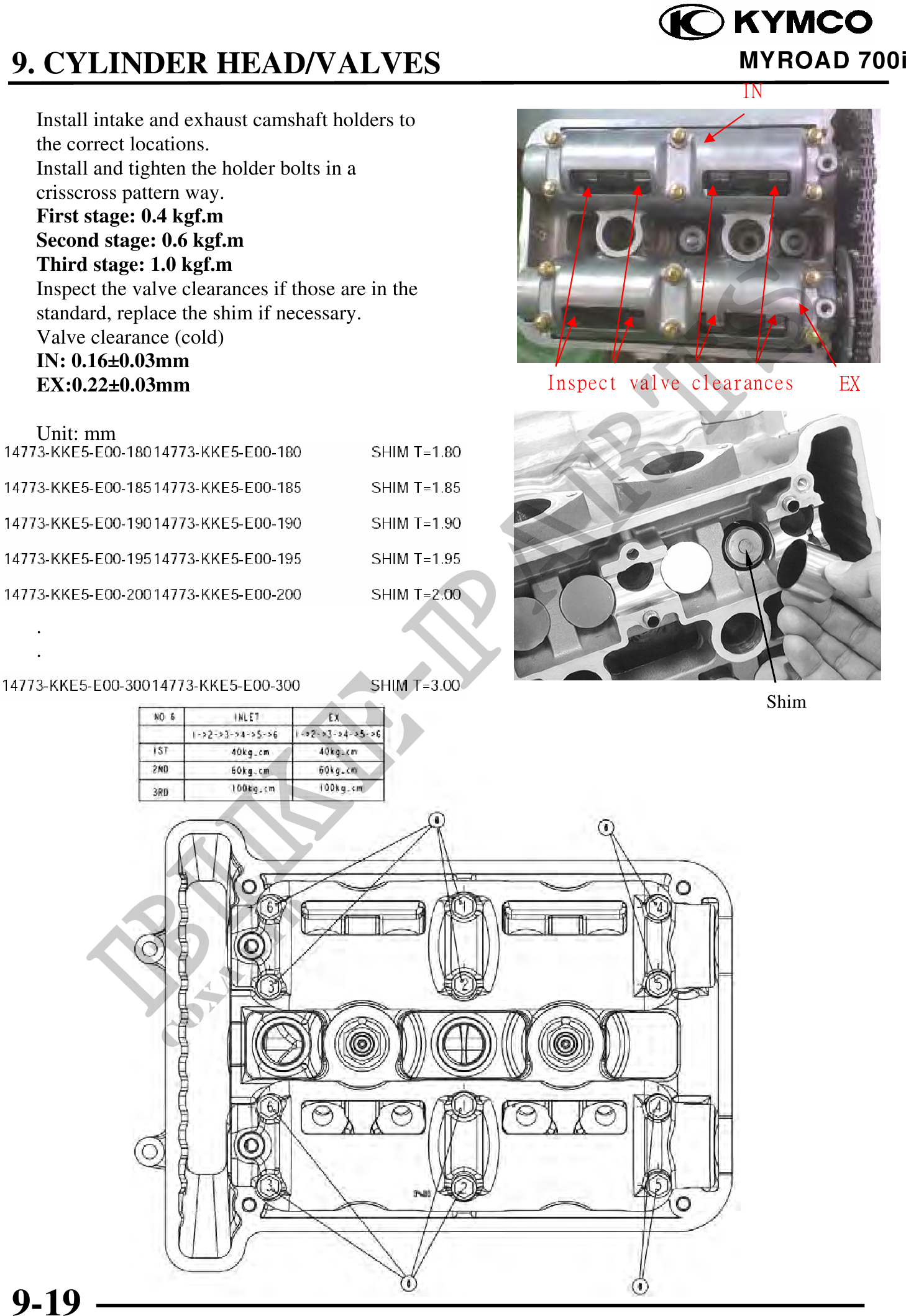

9. CYLINDER HEAD/VALVES MYROAD 700i
IN
Install intake and exhaust camshaft holders to
the correct locations.
Install and tighten the holder bolts in a
crisscross pattern way.
First stage: 0.4 kgf.m
Second stage: 0.6 kgf.m
Third stage: 1.0 kgf.m
Inspect the valve clearances if those are in the
standard, replace the shim if necessary.
Valve clearance (cold)
IN: 0.160.03mm
EX:0.220.03mm Inspect valve clearances EX
Unit: mm
.
.
Shim
9-19
