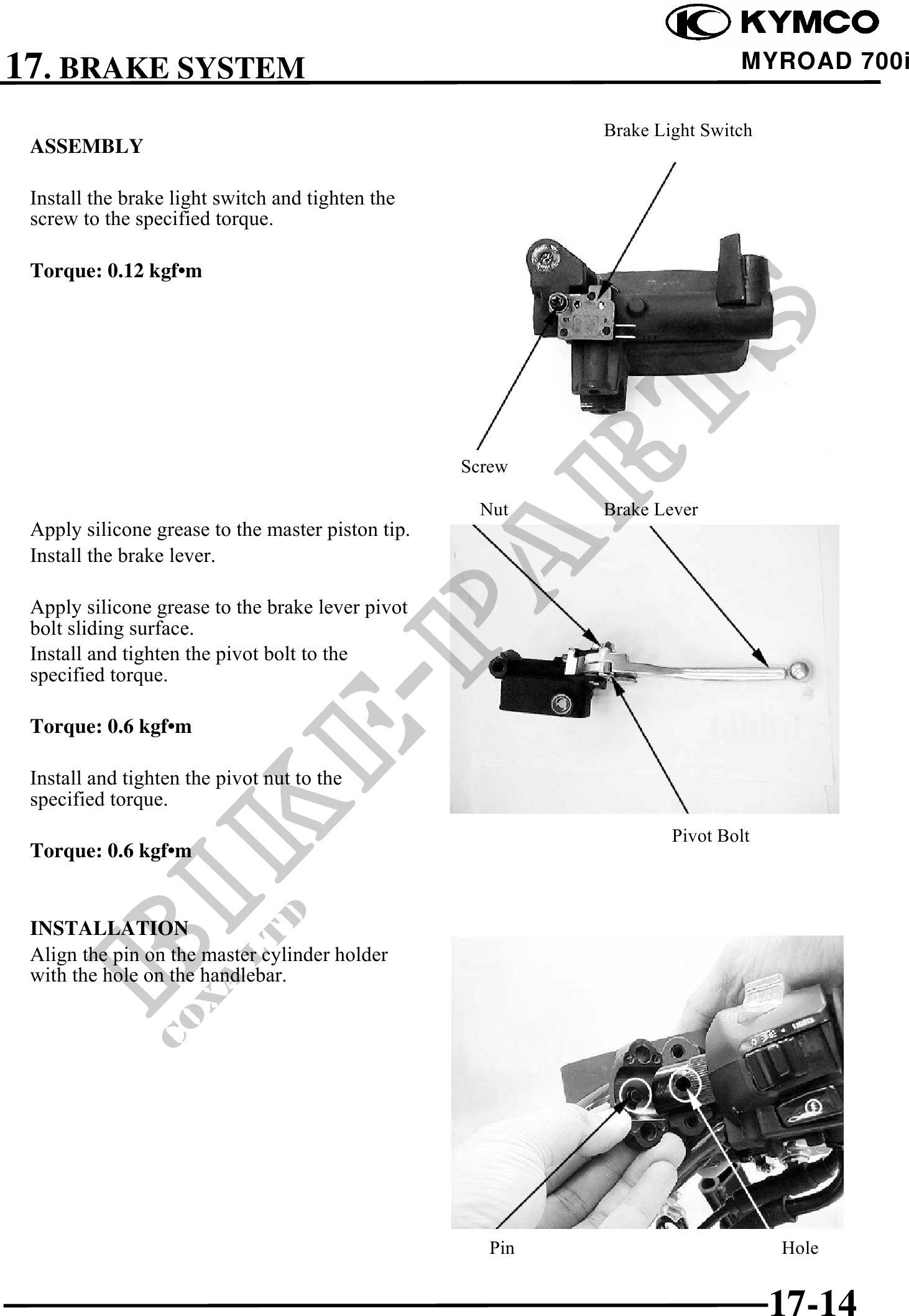

17. BRAKE SYSTEM MYROAD 700i
Brake Light Switch
ASSEMBLY
Install the brake light switch and tighten the
screw to the specified torque.
Torque: 0.12 kgf·m
Screw
Nut Brake Lever
Apply silicone grease to the master piston tip.
Install the brake lever.
Apply silicone grease to the brake lever pivot
bolt sliding surface.
Install and tighten the pivot bolt to the
specified torque.
Torque: 0.6 kgf·m
Install and tighten the pivot nut to the
specified torque.
Pivot Bolt
Torque: 0.6 kgf·m
INSTALLATION
Align the pin on the master cylinder holder
with the hole on the handlebar.
Pin Hole
17-14
