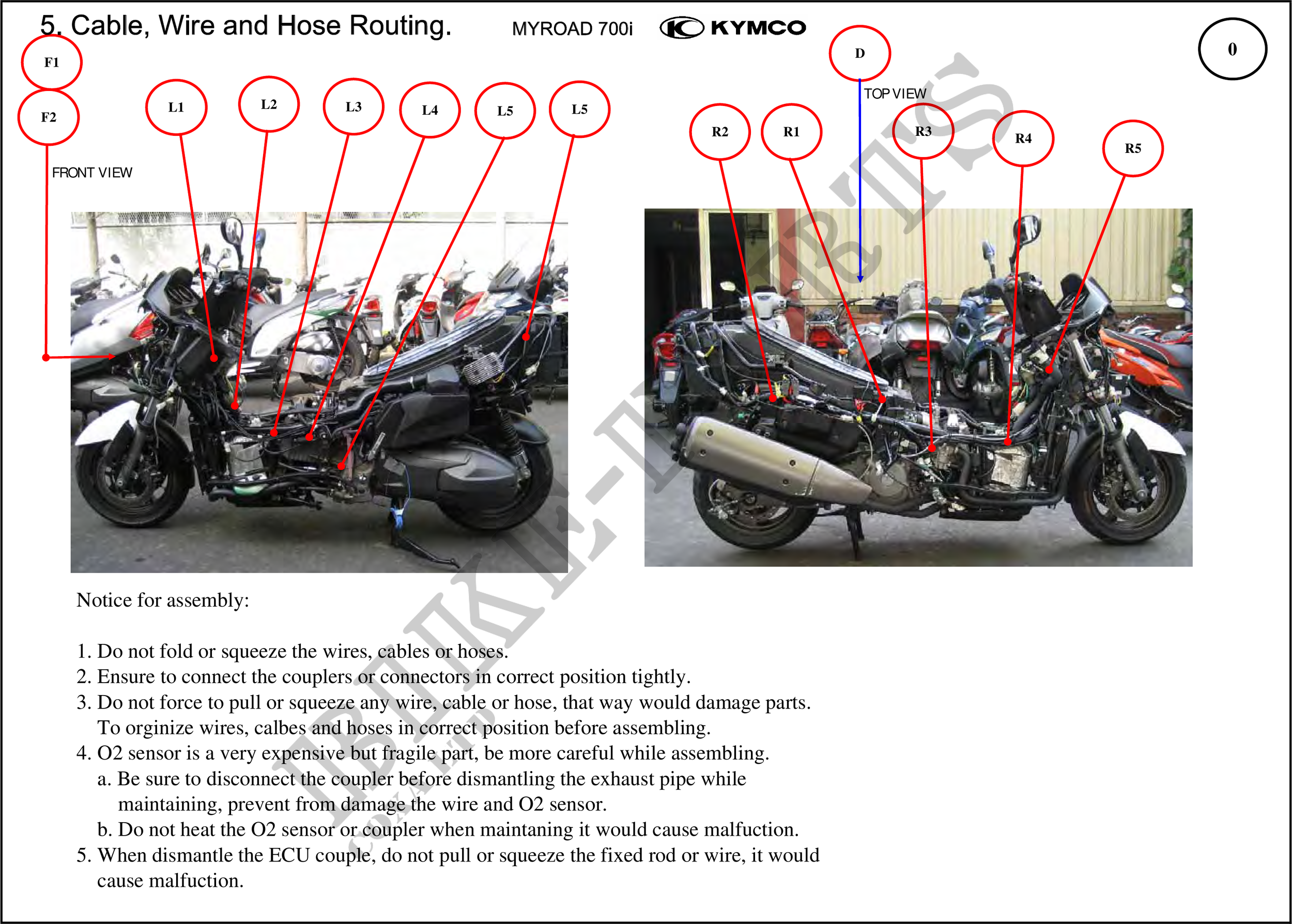

5. Cable, Wire and Hose Routing. MYROAD 700i
D 0
F1
TOP VIEW
L1 L2 L3 L4 L5 L5
F2
R2 R1 R3
R4
R5
FRONT VIEW
Notice for assembly:
1. Do not fold or squeeze the wires, cables or hoses.
2. Ensure to connect the couplers or connectors in correct position tightly.
3. Do not force to pull or squeeze any wire, cable or hose, that way would damage parts.
To orginize wires, calbes and hoses in correct position before assembling.
4. O2 sensor is a very expensive but fragile part, be more careful while assembling.
a. Be sure to disconnect the coupler before dismantling the exhaust pipe while
maintaining, prevent from damage the wire and O2 sensor.
b. Do not heat the O2 sensor or coupler when maintaning it would cause malfuction.
5. When dismantle the ECU couple, do not pull or squeeze the fixed rod or wire, it would
cause malfuction.
