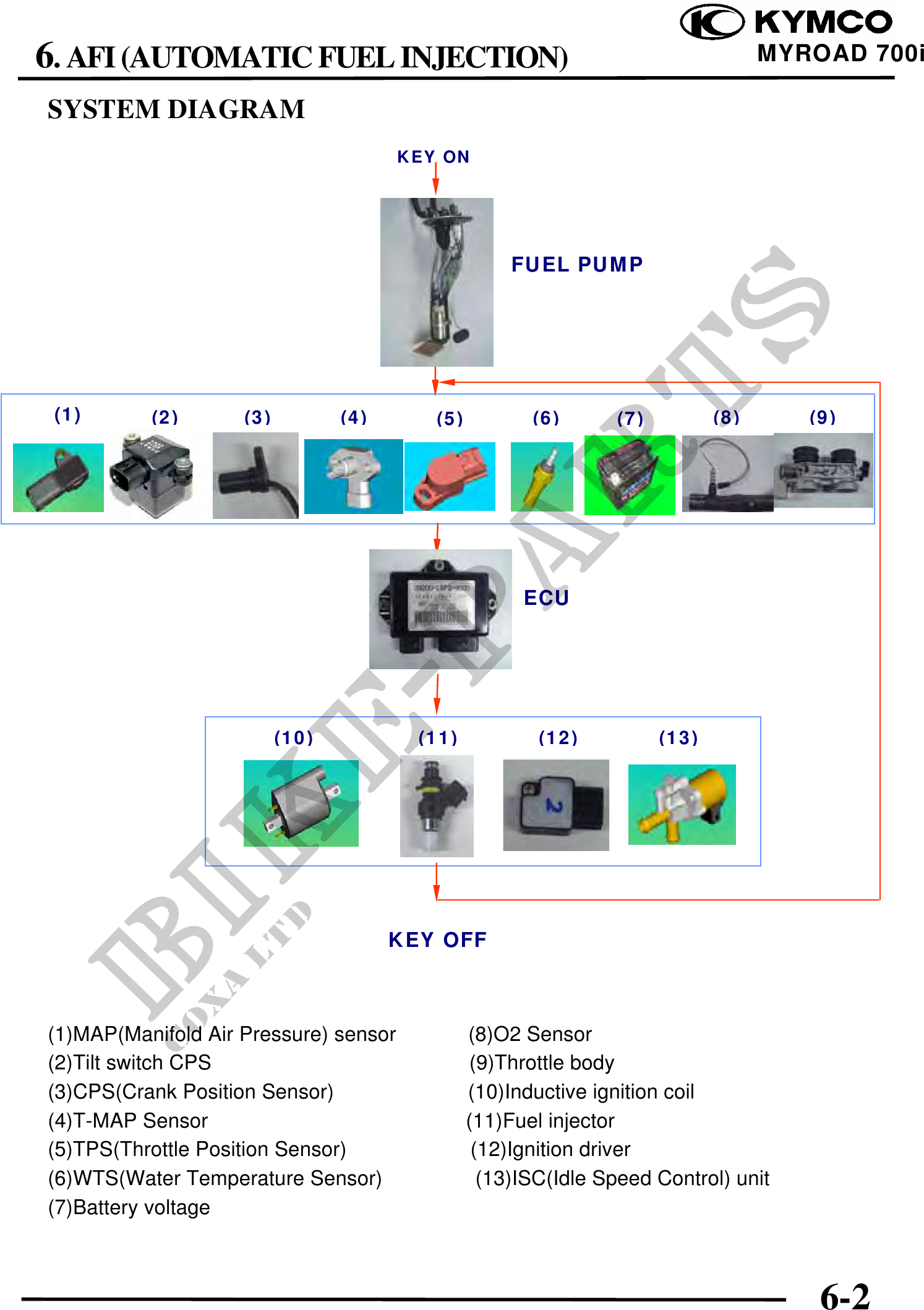

6. AFI (AUTOMATIC FUEL INJECTION) MYROAD 700i
SYSTEM DIAGRAM
KEY ON
FUEL PUMP
(1) (2) (3) (4) (5) (6) (7) (8) (9)
ECU
(10) (11) (12) (13)
KEY OFF
(1)MAP(Manifold Air Pressure) sensor (8)O2 Sensor
(2)Tilt switch CPS (9)Throttle body
(3)CPS(Crank Position Sensor) (10)Inductive ignition coil
(4)T-MAP Sensor (11)Fuel injector
(5)TPS(Throttle Position Sensor) (12)Ignition driver
(6)WTS(Water Temperature Sensor) (13)ISC(Idle Speed Control) unit
(7)Battery voltage
6-2
