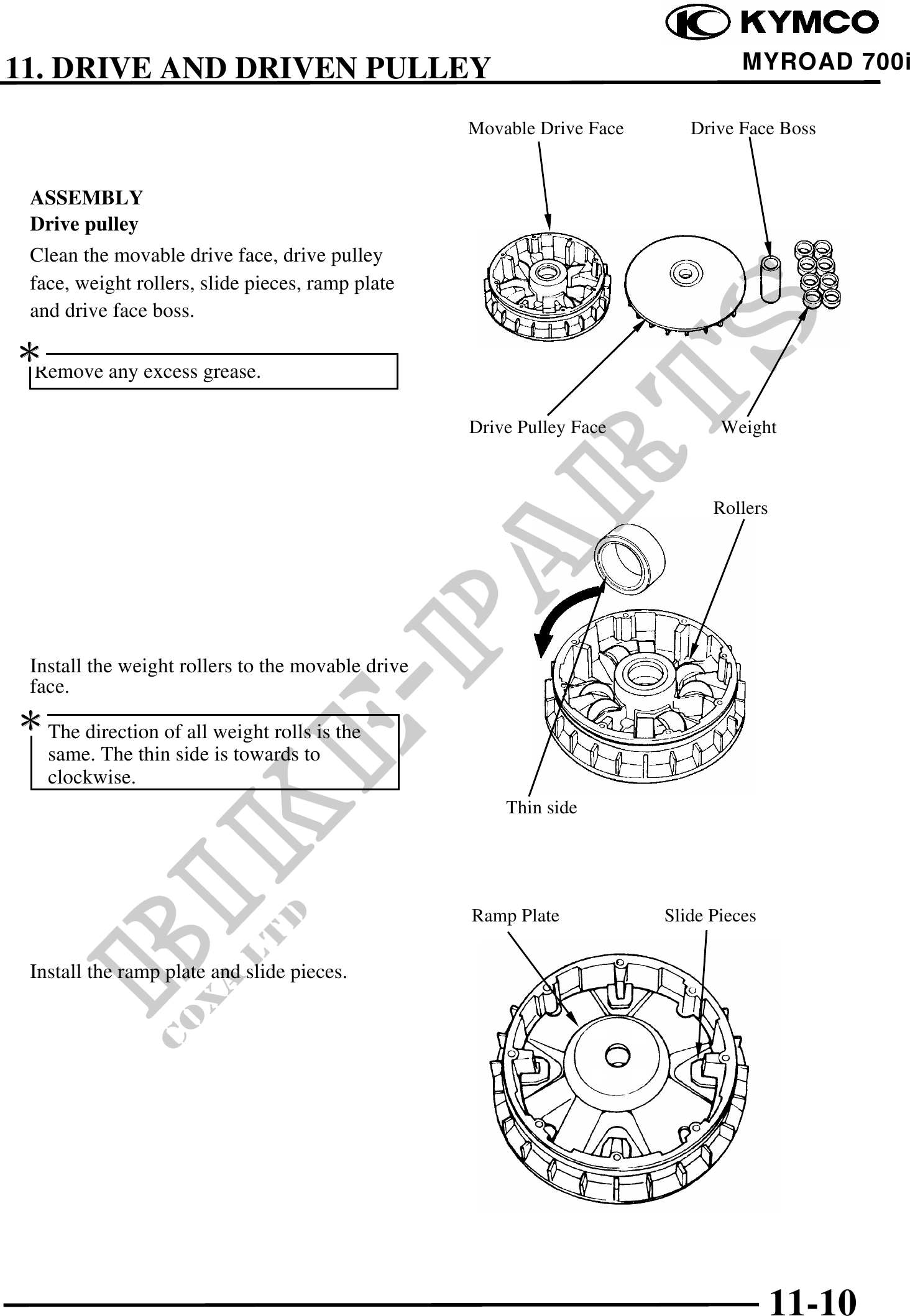

11. DRIVE AND DRIVEN PULLEY MYROAD 700i
Movable Drive Face Drive Face Boss
ASSEMBLY
Drive pulley
Clean the movable drive face, drive pulley
face, weight rollers, slide pieces, ramp plate
and drive face boss.
Remove any excess grease.
Drive Pulley Face Weight
Rollers
Install the weight rollers to the movable drive
face.
The direction of all weight rolls is the
same. The thin side is towards to
clockwise.
Thin side
Ramp Plate Slide Pieces
Install the ramp plate and slide pieces.
11-10
