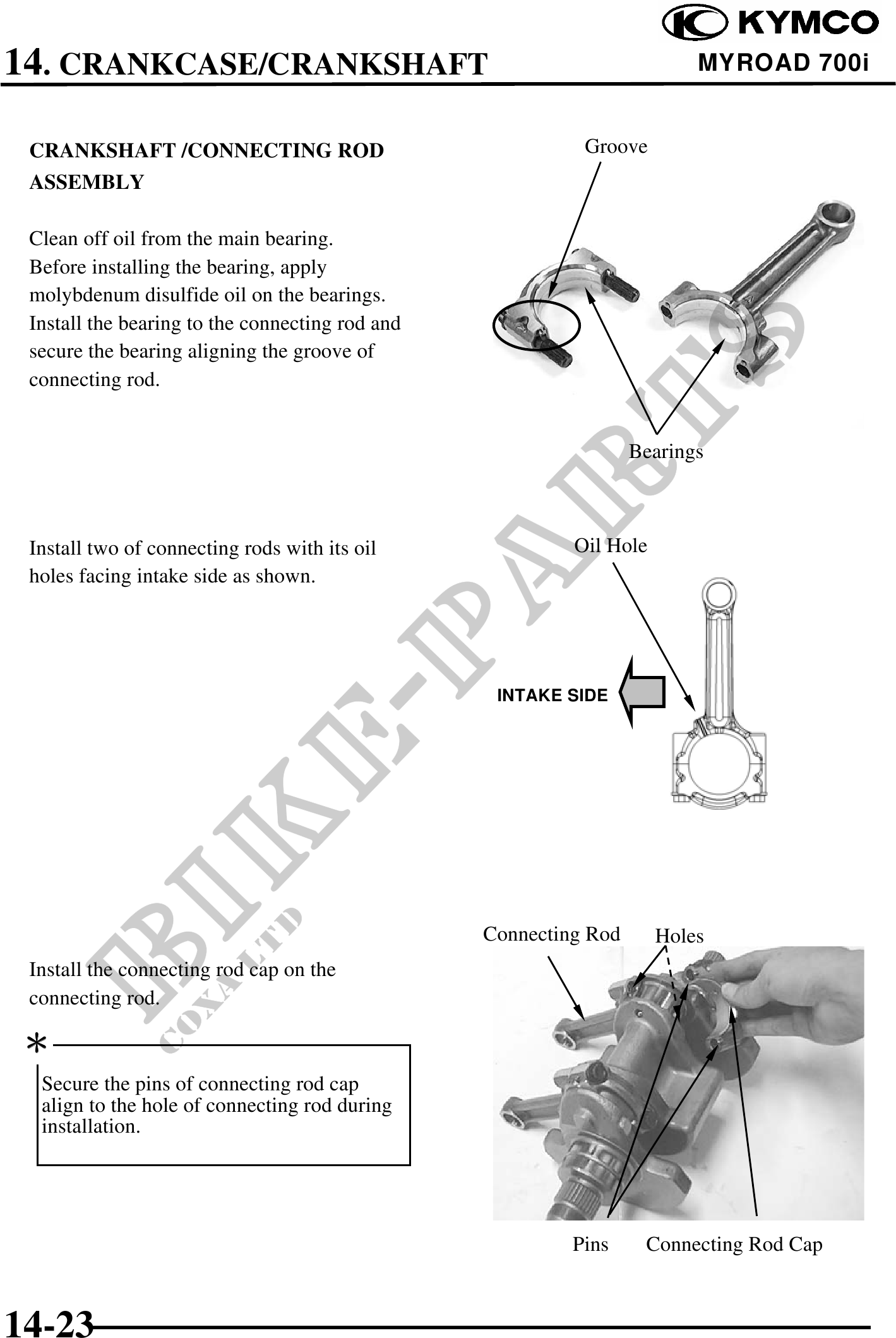

14. CRANKCASE/CRANKSHAFT MYROAD 700i
CRANKSHAFT /CONNECTING ROD Groove
ASSEMBLY
Clean off oil from the main bearing.
Before installing the bearing, apply
molybdenum disulfide oil on the bearings.
Install the bearing to the connecting rod and
secure the bearing aligning the groove of
connecting rod.
Bearings
Install two of connecting rods with its oil Oil Hole
holes facing intake side as shown.
INTAKE SIDE
Connecting Rod Holes
Install the connecting rod cap on the
connecting rod.
Secure the pins of connecting rod cap
align to the hole of connecting rod during
installation.
Pins Connecting Rod Cap
14-23
