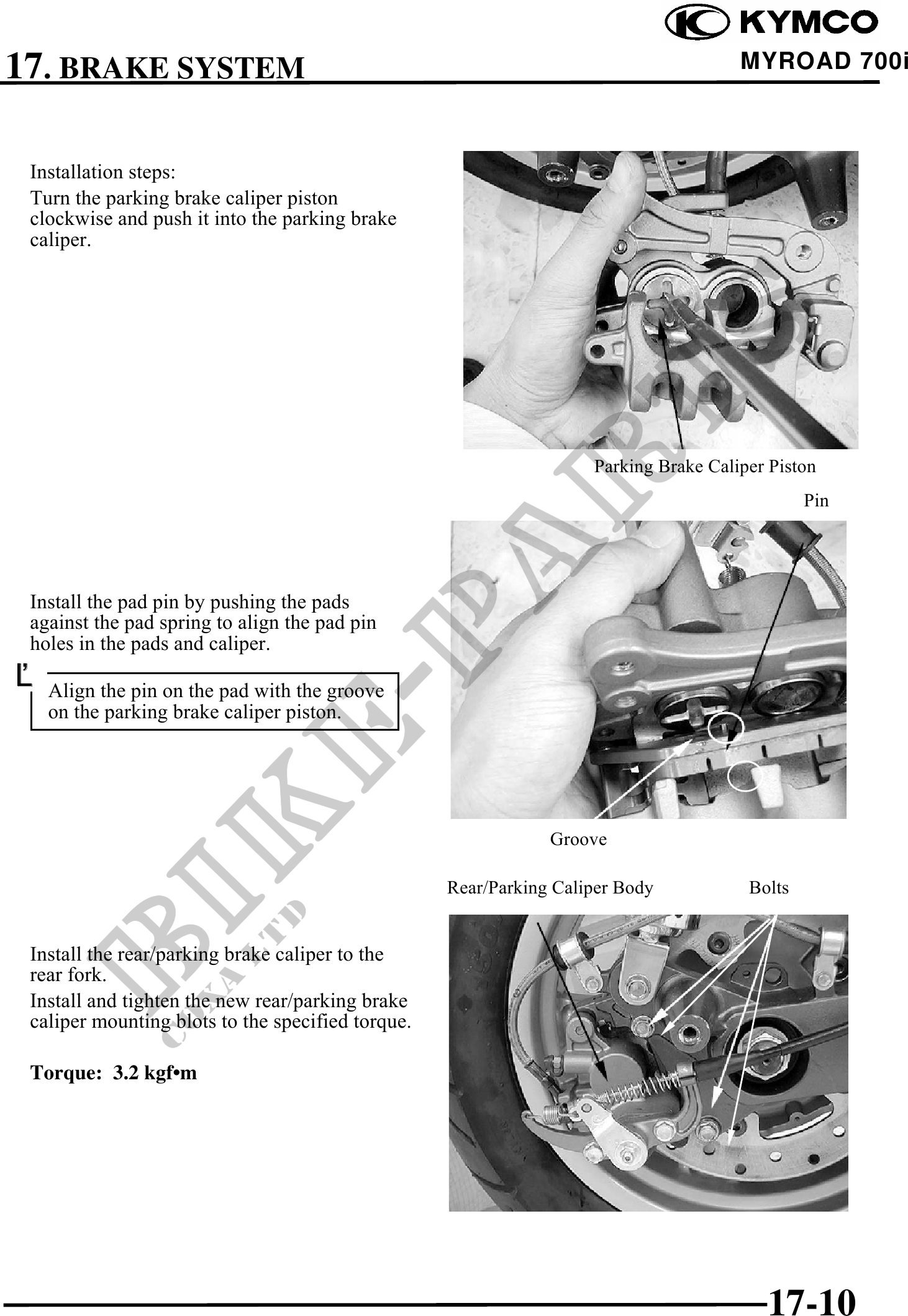

17. BRAKE SYSTEM MYROAD 700i
Installation steps:
Turn the parking brake caliper piston
clockwise and push it into the parking brake
caliper.
Parking Brake Caliper Piston
Pin
Install the pad pin by pushing the pads
against the pad spring to align the pad pin
holes in the pads and caliper.
Align the pin on the pad with the groove
on the parking brake caliper piston.
Groove
Rear/Parking Caliper Body Bolts
Install the rear/parking brake caliper to the
rear fork.
Install and tighten the new rear/parking brake
caliper mounting blots to the specified torque.
Torque: 3.2 kgf·m
17-10
