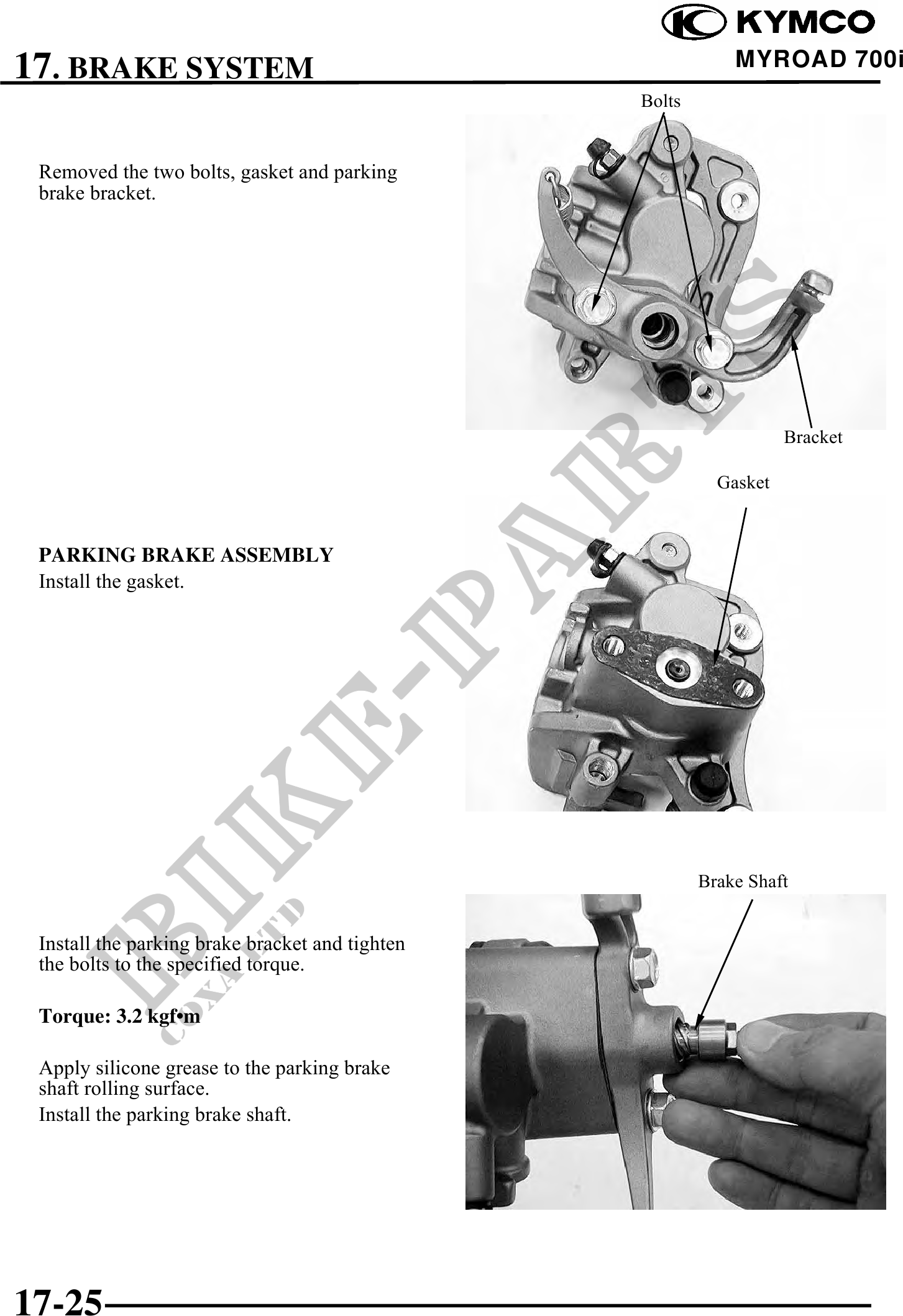

          17. BRAKE SYSTEM                                             MYROAD 700i
                                                 Bolts


 Removed the two bolts, gasket and parking
 brake bracket.




                                                                    Bracket

                                                           Gasket


 PARKING BRAKE ASSEMBLY
 Install the gasket.




                                                         Brake Shaft


 Install the parking brake bracket and tighten
 the bolts to the specified torque.

 Torque: 3.2 kgf·m

 Apply silicone grease to the parking brake
 shaft rolling surface.
 Install the parking brake shaft.
