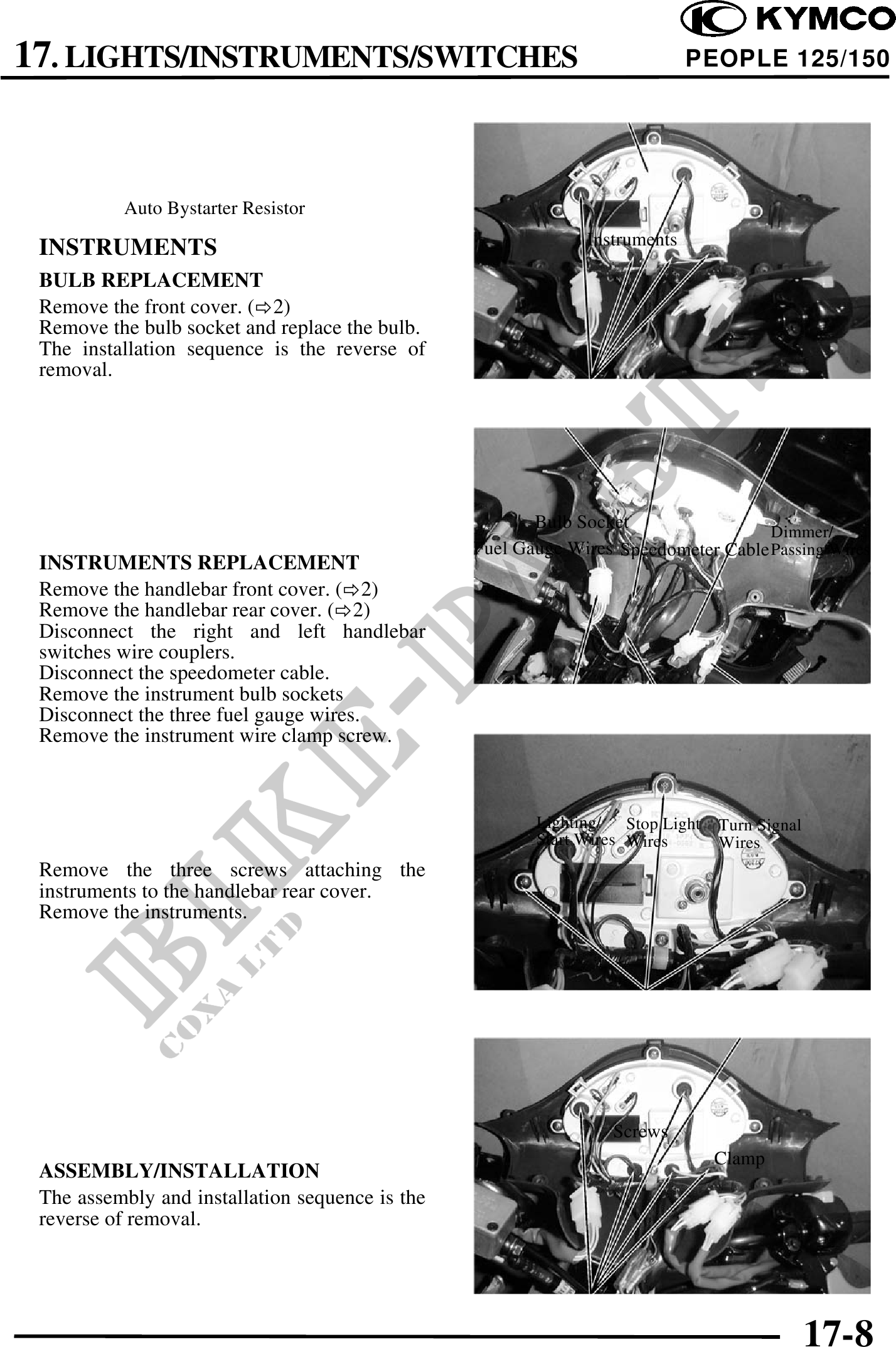

17. LIGHTS/INSTRUMENTS/SWITCHES PEOPLE 125/150
Auto Bystarter Resistor
INSTRUMENTS Instruments
BULB REPLACEMENT
Remove the front cover. ( 2)
Remove the bulb socket and replace the bulb.
The installation sequence is the reverse of
removal.
Bulb Socket Dimmer/
Fuel Gauge Wires Speedometer Cable Passing Wires
INSTRUMENTS REPLACEMENT
Remove the handlebar front cover. ( 2)
Remove the handlebar rear cover. ( 2)
Disconnect the right and left handlebar
switches wire couplers.
Disconnect the speedometer cable.
Remove the instrument bulb sockets
Disconnect the three fuel gauge wires.
Remove the instrument wire clamp screw.
Lighting/ Stop Light Turn Signal
Start Wires Wires Wires
Remove the three screws attaching the
instruments to the handlebar rear cover.
Remove the instruments.
Screws
Clamp
ASSEMBLY/INSTALLATION
The assembly and installation sequence is the
reverse of removal.
