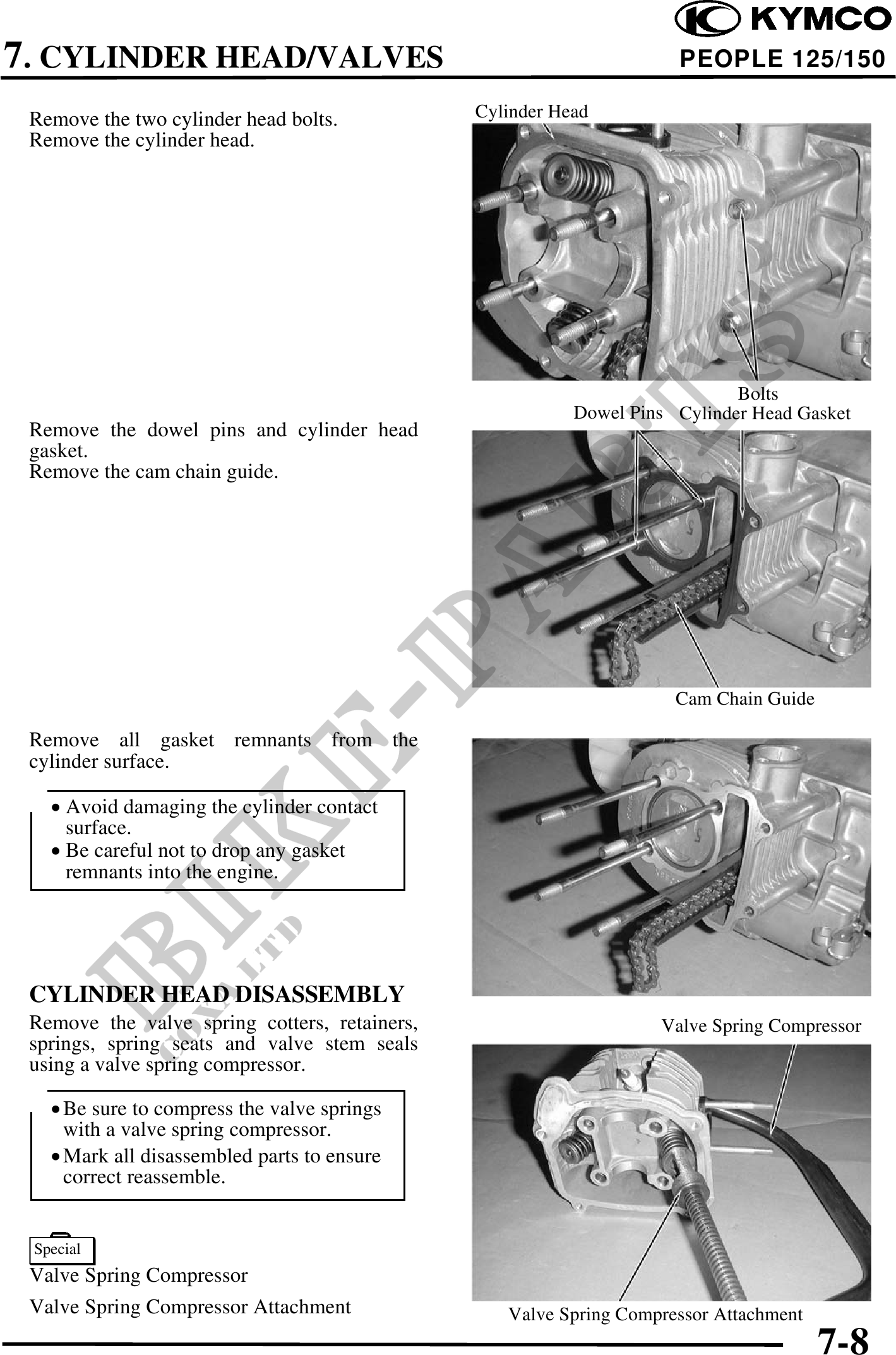

7. CYLINDER HEAD/VALVES PEOPLE 125/150
Remove the two cylinder head bolts. Cylinder Head
Remove the cylinder head.
Bolts
Dowel Pins Cylinder Head Gasket
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Cam Chain Guide
Remove all gasket remnants from the
cylinder surface.
· Avoid damaging the cylinder contact
surface.
· Be careful not to drop any gasket
remnants into the engine.
CYLINDER HEAD DISASSEMBLY
Remove the valve spring cotters, retainers, Valve Spring Compressor
springs, spring seats and valve stem seals
using a valve spring compressor.
· Be sure to compress the valve springs
with a valve spring compressor.
· Mark all disassembled parts to ensure
correct reassemble.
Special
Valve Spring Compressor
Valve Spring Compressor Attachment Valve Spring Compressor Attachment
7-8
