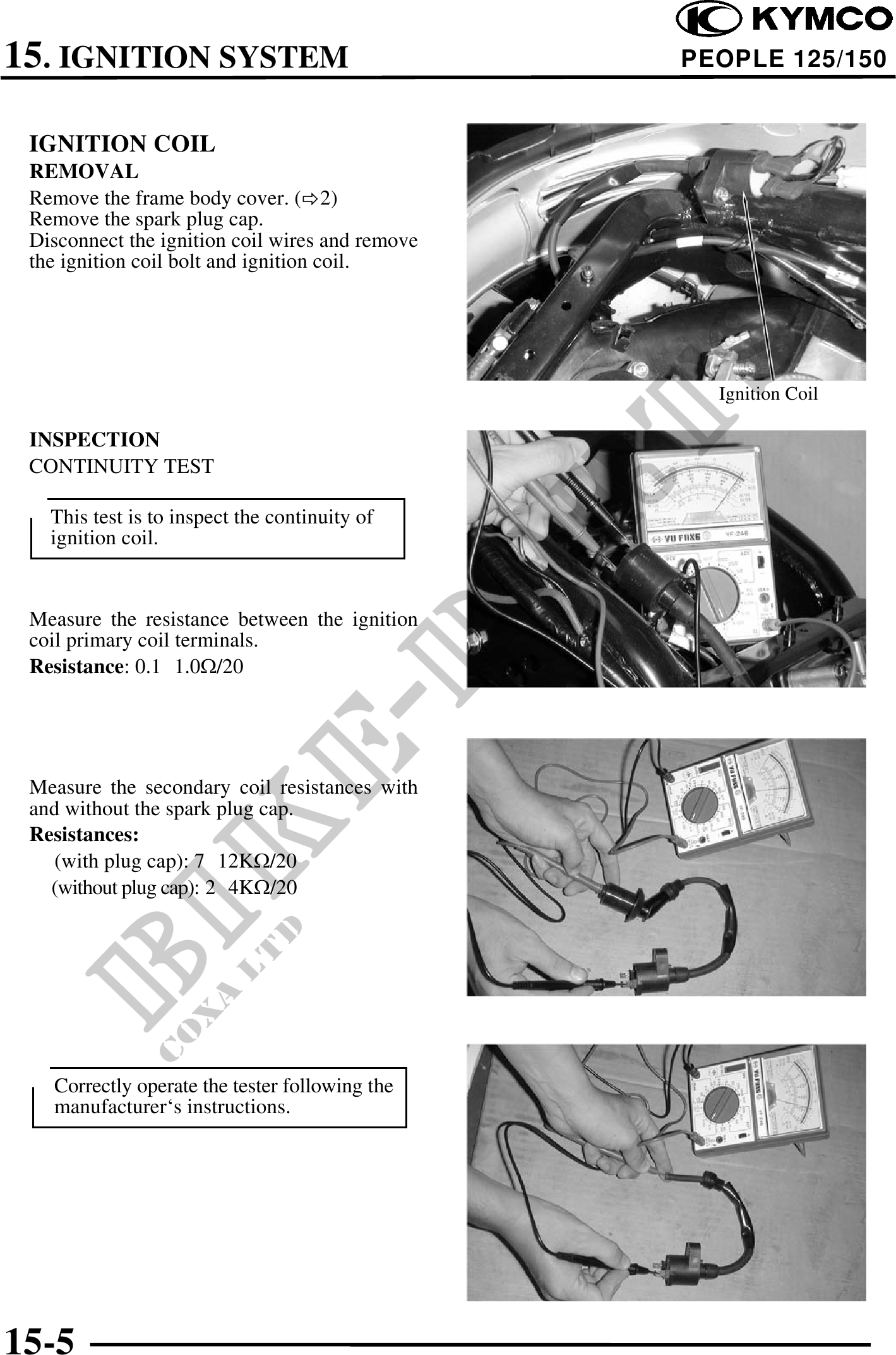

15. IGNITION SYSTEM PEOPLE 125/150
IGNITION COIL
REMOVAL
Remove the frame body cover. ( 2)
Remove the spark plug cap.
Disconnect the ignition coil wires and remove
the ignition coil bolt and ignition coil.
Ignition Coil
INSPECTION
CONTINUITY TEST
This test is to inspect the continuity of
ignition coil.
Measure the resistance between the ignition
coil primary coil terminals.
Resistance: 0.1 1.0/20
Measure the secondary coil resistances with
and without the spark plug cap.
Resistances:
(with plug cap): 7 12K/20
(without plug cap): 2 4K/20
Correctly operate the tester following the
manufacturer`s instructions.
15-5
