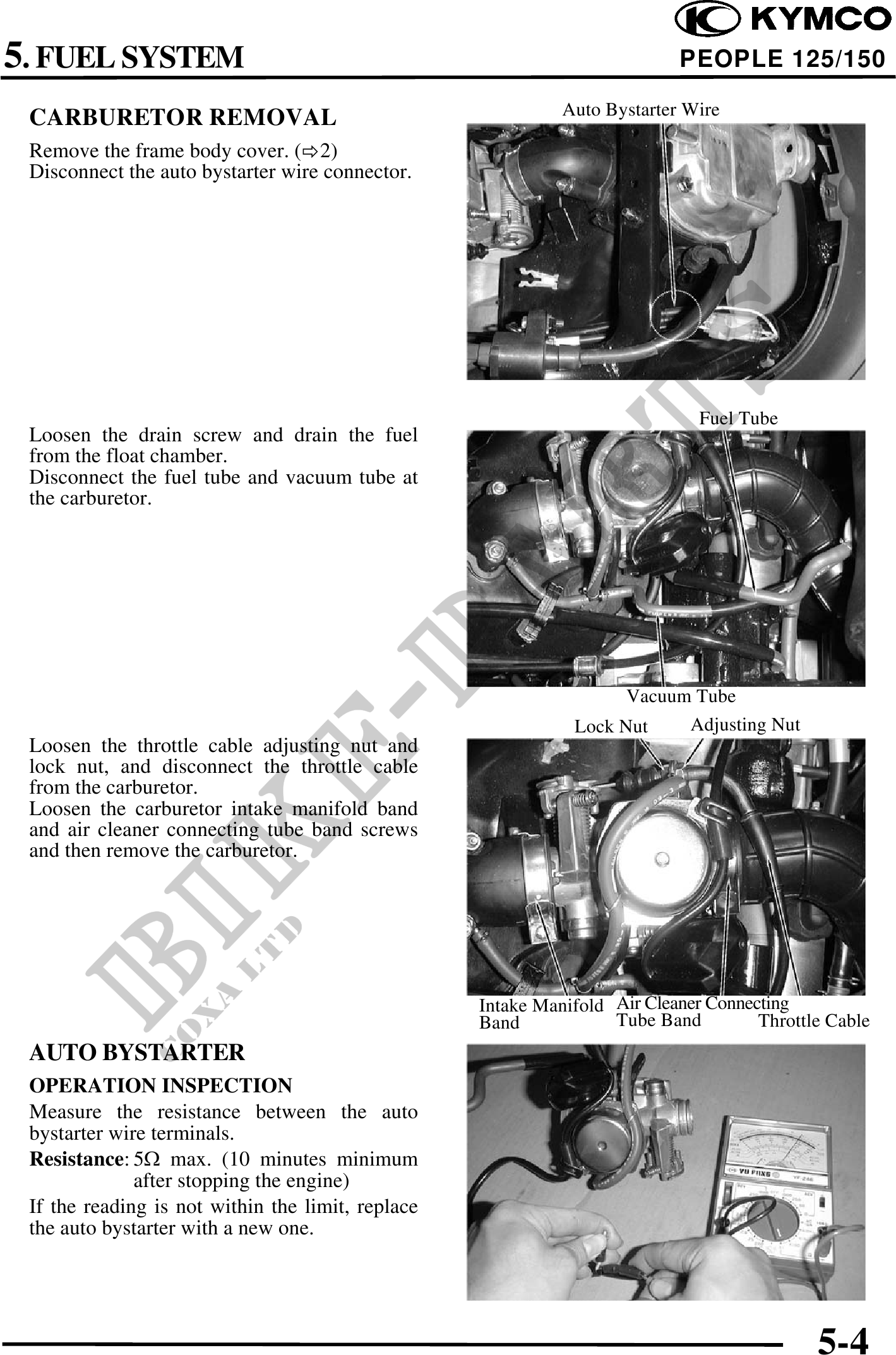

5. FUEL SYSTEM PEOPLE 125/150
CARBURETOR REMOVAL Auto Bystarter Wire
Remove the frame body cover. ( 2)
Disconnect the auto bystarter wire connector.
Fuel Tube
Loosen the drain screw and drain the fuel
from the float chamber.
Disconnect the fuel tube and vacuum tube at
the carburetor.
Vacuum Tube
Lock Nut Adjusting Nut
Loosen the throttle cable adjusting nut and
lock nut, and disconnect the throttle cable
from the carburetor.
Loosen the carburetor intake manifold band
and air cleaner connecting tube band screws
and then remove the carburetor.
Intake Manifold Air Cleaner Connecting
Band Tube Band Throttle Cable
AUTO BYSTARTER
OPERATION INSPECTION
Measure the resistance between the auto
bystarter wire terminals.
Resistance: 5 max. (10 minutes minimum
after stopping the engine)
If the reading is not within the limit, replace
the auto bystarter with a new one.
5-4
