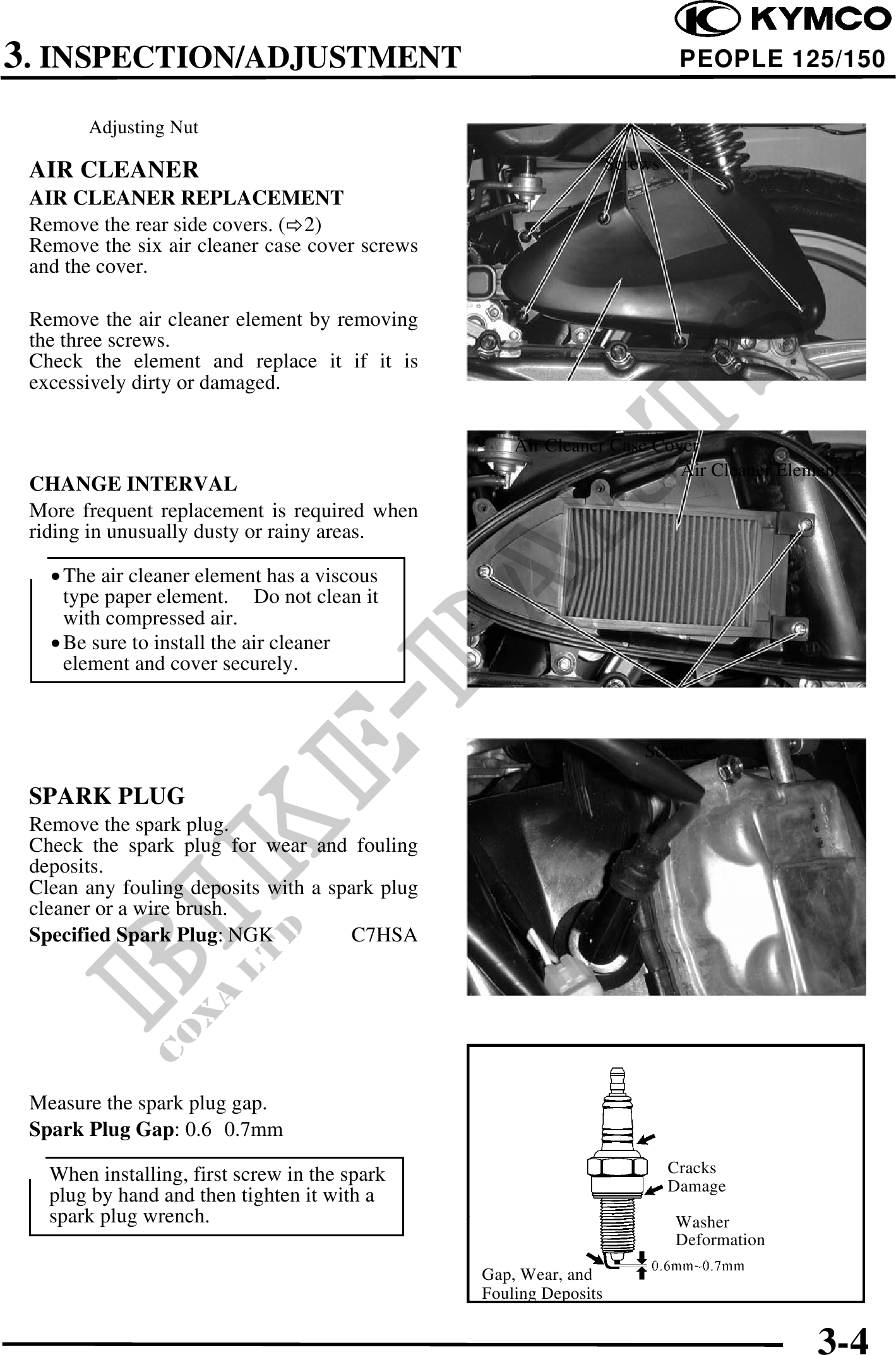

3. INSPECTION/ADJUSTMENT PEOPLE 125/150
Adjusting Nut
AIR CLEANER Screws
AIR CLEANER REPLACEMENT
Remove the rear side covers. ( 2)
Remove the six air cleaner case cover screws
and the cover.
Remove the air cleaner element by removing
the three screws.
Check the element and replace it if it is
excessively dirty or damaged.
Air Cleaner Case Cover
Air Cleaner Element
CHANGE INTERVAL
More frequent replacement is required when
riding in unusually dusty or rainy areas.
· The air cleaner element has a viscous
type paper element. Do not clean it
with compressed air.
· Be sure to install the air cleaner
element and cover securely.
Screws
SPARK PLUG
Remove the spark plug.
Check the spark plug for wear and fouling
deposits.
Clean any fouling deposits with a spark plug
cleaner or a wire brush.
Specified Spark Plug: NGK C7HSA
Measure the spark plug gap.
Spark Plug Gap: 0.6 0.7mm
When installing, first screw in the spark Cracks
Damage
plug by hand and then tighten it with a
spark plug wrench. Washer
Deformation
Gap, Wear, and
Fouling Deposits
3-4
