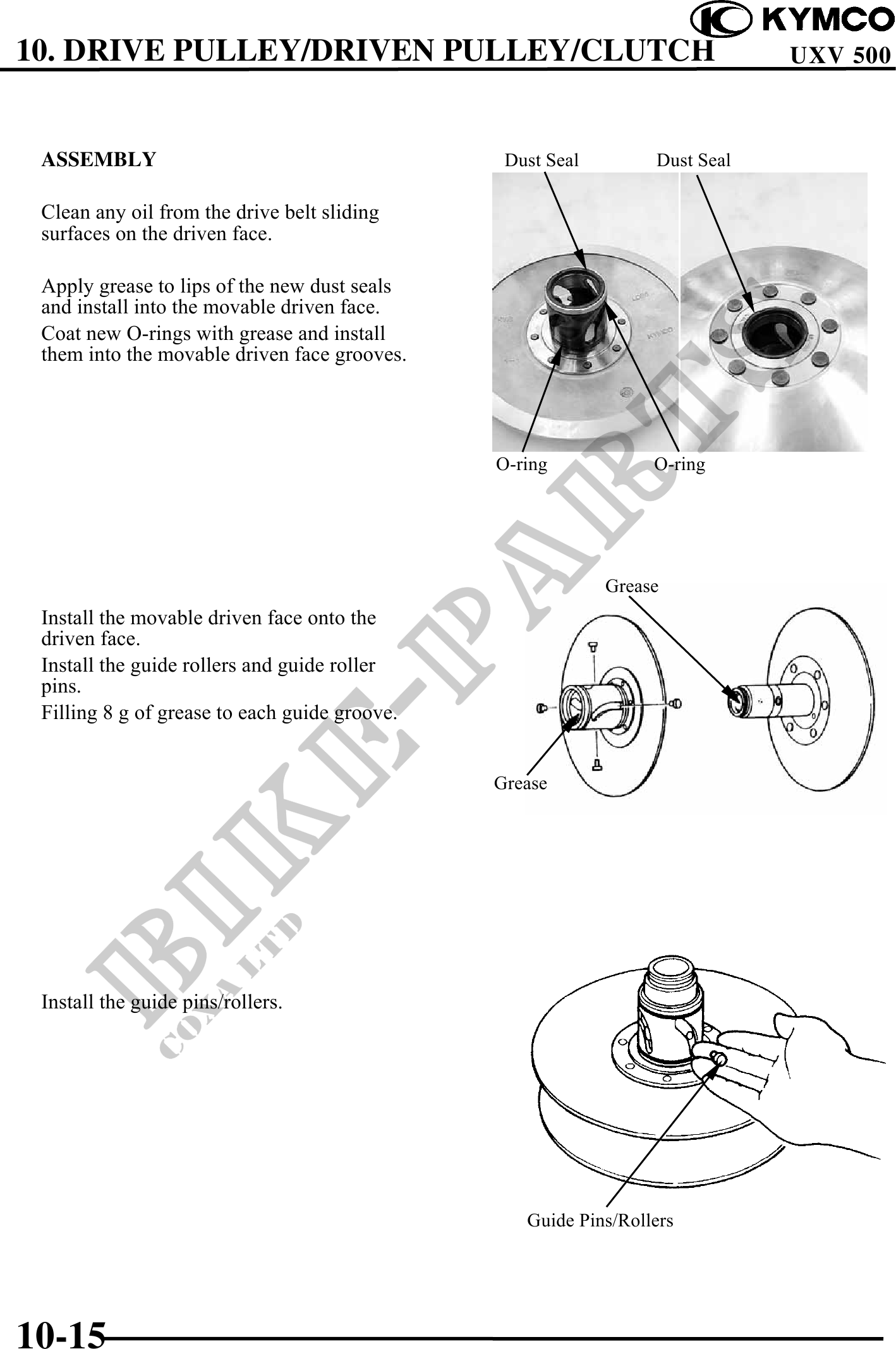

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH UXV 500
ASSEMBLY Dust Seal Dust Seal
Clean any oil from the drive belt sliding
surfaces on the driven face.
Apply grease to lips of the new dust seals
and install into the movable driven face.
Coat new O-rings with grease and install
them into the movable driven face grooves.
O-ring O-ring
Grease
Install the movable driven face onto the
driven face.
Install the guide rollers and guide roller
pins.
Filling 8 g of grease to each guide groove.
Grease
Install the guide pins/rollers.
Guide Pins/Rollers
10-15
