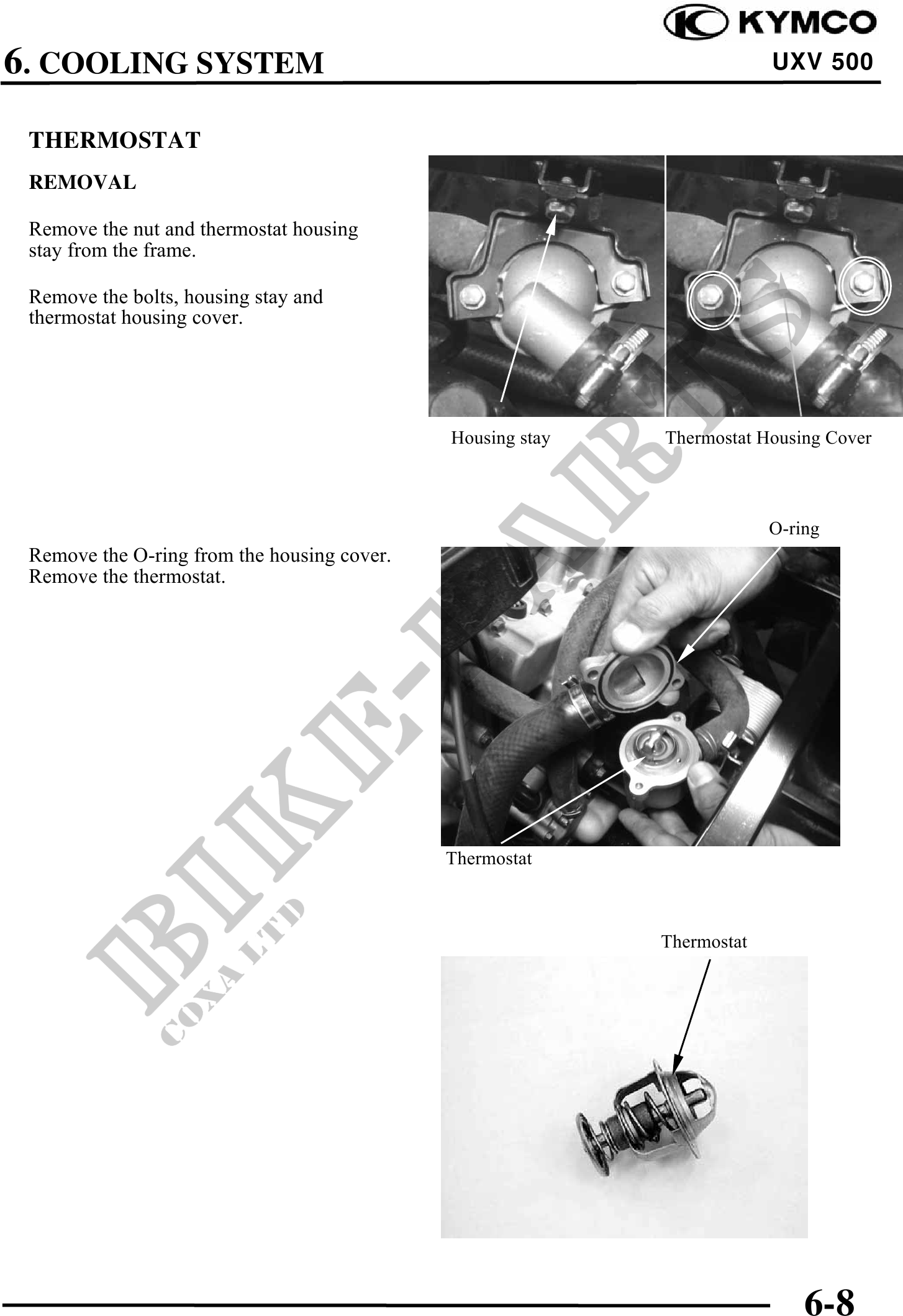

          6. COOLING SYSTEM                                                        UXV 500


 THERMOSTAT
 REMOVAL

 Remove the nut and thermostat housing
 stay from the frame.

 Remove the bolts, housing stay and
 thermostat housing cover.




                                             Housing stay   Thermostat Housing Cover



                                                                         O-ring
 Remove the O-ring from the housing cover.
 Remove the thermostat.




                                             Thermostat



                                                            Thermostat
