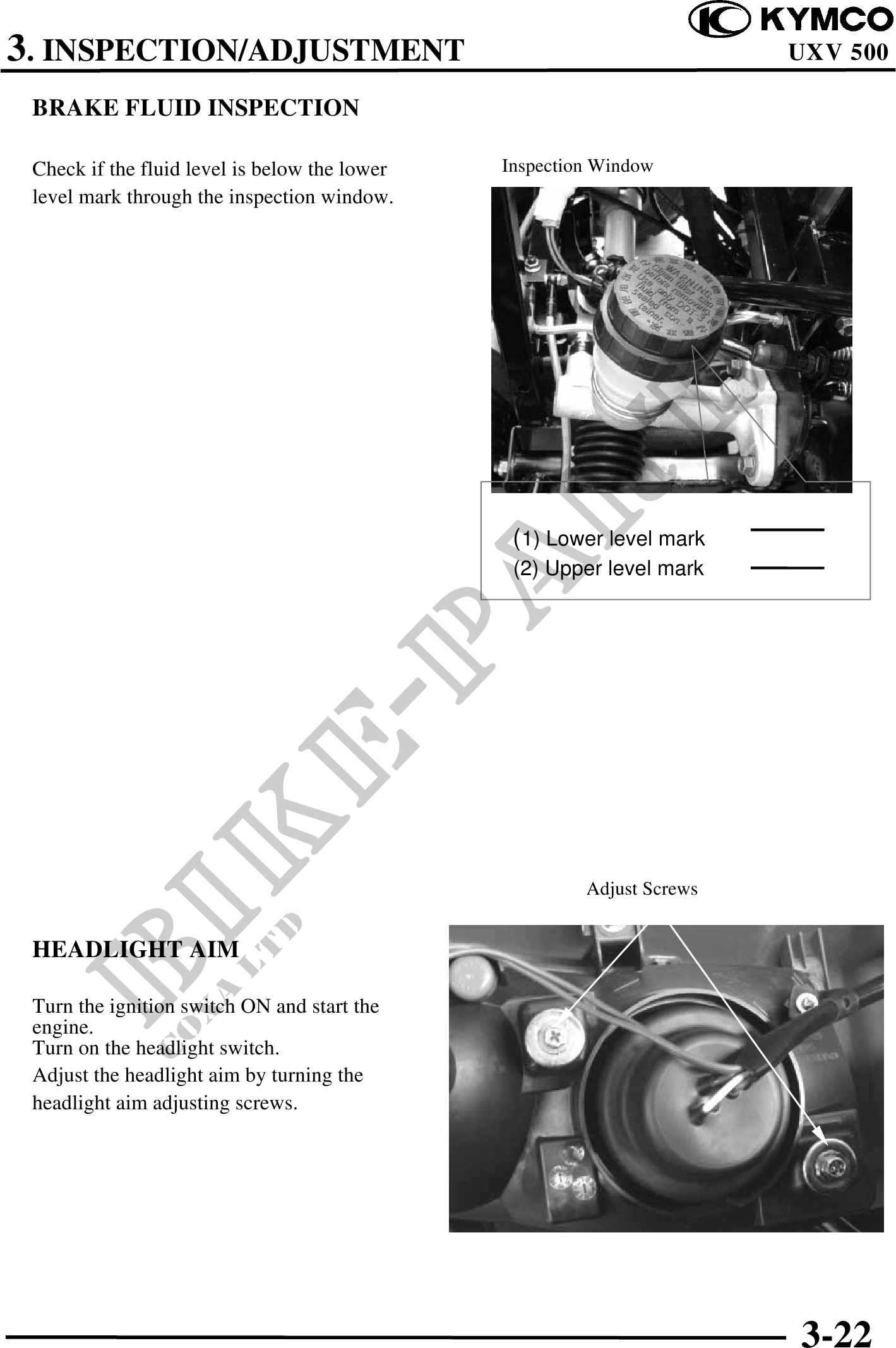

          3. INSPECTION/ADJUSTMENT                                                UXV 500

 BRAKE FLUID INSPECTION

 Check if the fluid level is below the lower   Inspection Window
 level mark through the inspection window.




                                                (1) Lower level mark
                                                (2) Upper level mark




                                                        Adjust Screws


 HEADLIGHT AIM

 Turn the ignition switch ON and start the
 engine.
 Turn on the headlight switch.
 Adjust the headlight aim by turning the
 headlight aim adjusting screws.




                                                                        3-22
