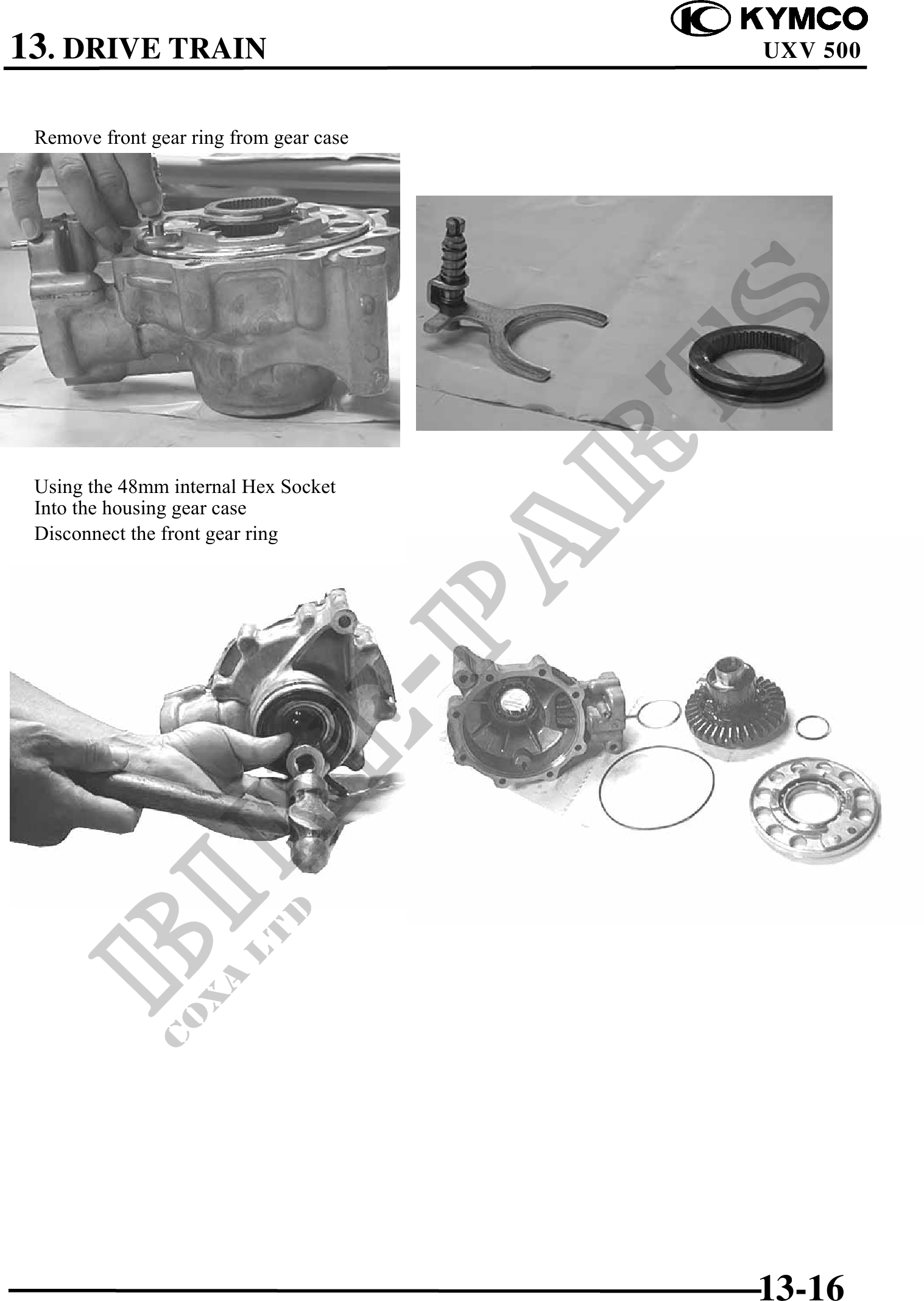

          13. DRIVE TRAIN                          UXV 500


 Remove front gear ring from gear case




 Using the 48mm internal Hex Socket
 Into the housing gear case
 Disconnect the front gear ring




 Remove the 2WD/4WD shifting




                                         13-16
