          16. ELECTRICAL EQUIPMENT                                              VITALITY 50


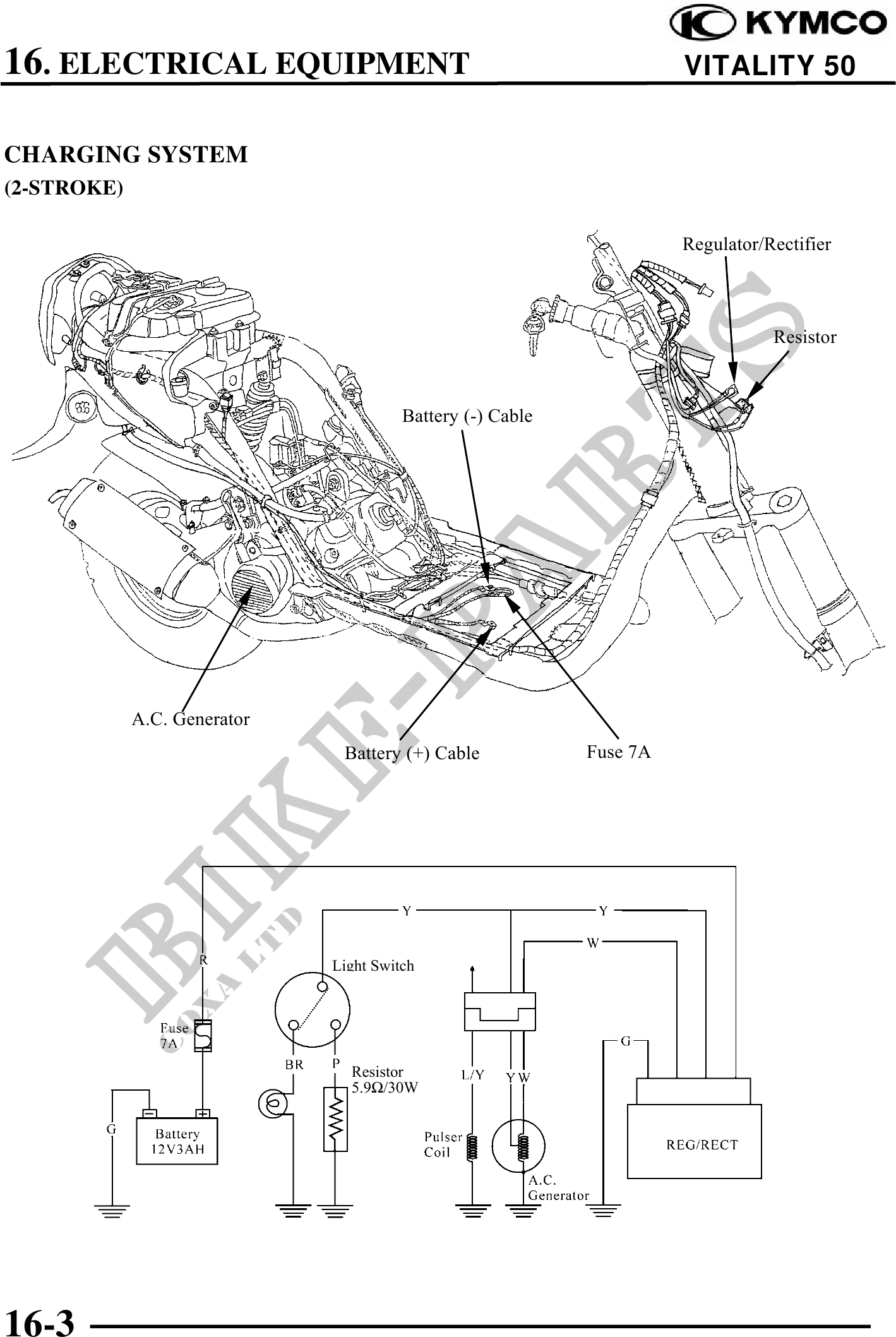

CHARGING SYSTEM
(2-STROKE)

                                                                      Regulator/Rectifier



                                                                                 Resistor



                                        Battery (-) Cable




             A.C. Generator
                               Battery (+) Cable            Fuse 7A




                              Light Switch




                                Resistor
                                5.9/30W




16-3
