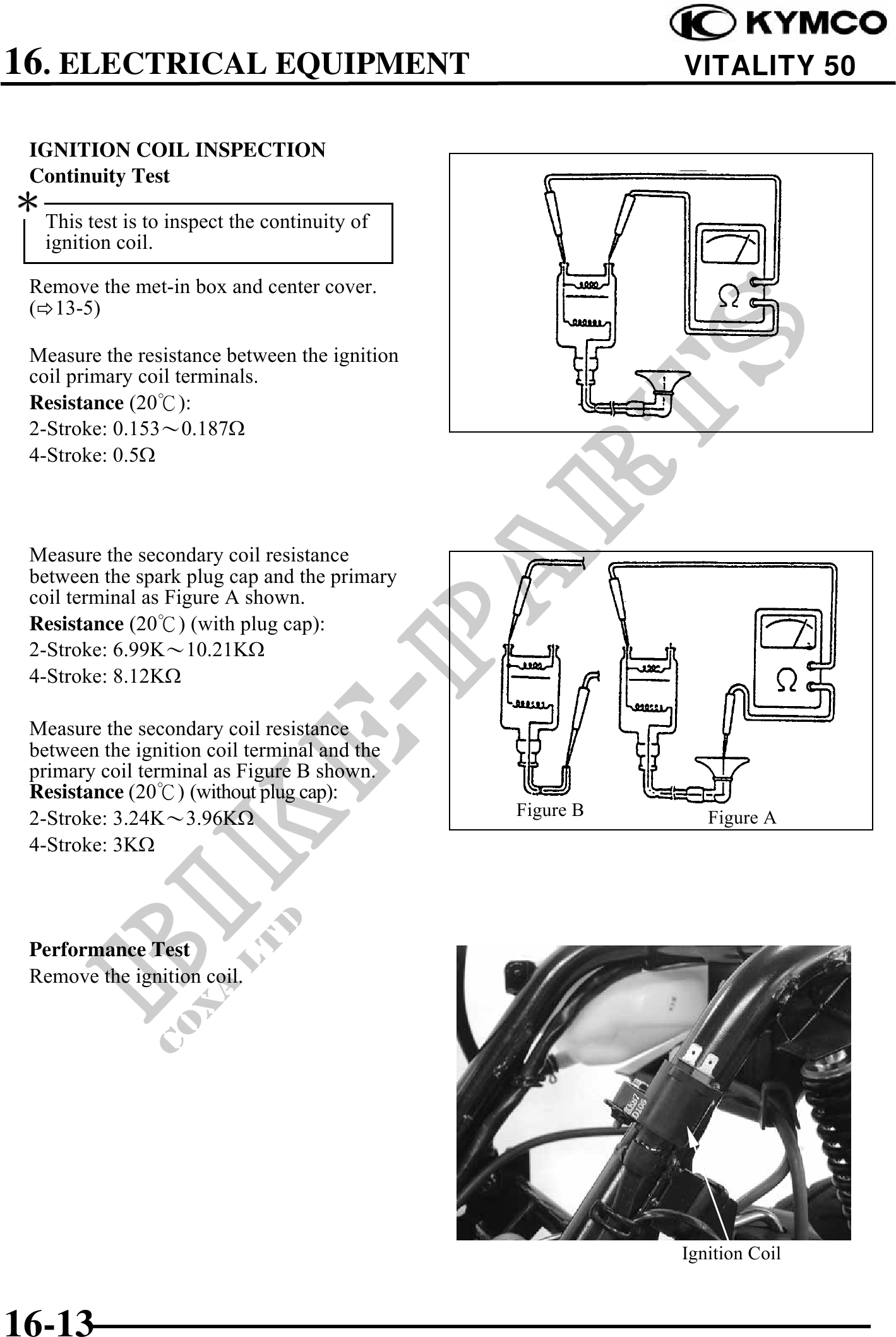

16. ELECTRICAL EQUIPMENT VITALITY 50
IGNITION COIL INSPECTION
Continuity Test
This test is to inspect the continuity of
ignition coil.
Remove the met-in box and center cover.
( 13-5)
Measure the resistance between the ignition
coil primary coil terminals.
Resistance (20):
2-Stroke: 0.1530.187
4-Stroke: 0.5
Measure the secondary coil resistance
between the spark plug cap and the primary
coil terminal as Figure A shown.
Resistance (20) (with plug cap):
2-Stroke: 6.99K10.21K
4-Stroke: 8.12K
Measure the secondary coil resistance
between the ignition coil terminal and the
primary coil terminal as Figure B shown.
Resistance (20) (without plug cap):
2-Stroke: 3.24K3.96K Figure B Figure A
4-Stroke: 3K
Performance Test
Remove the ignition coil.
Ignition Coil
16-13
