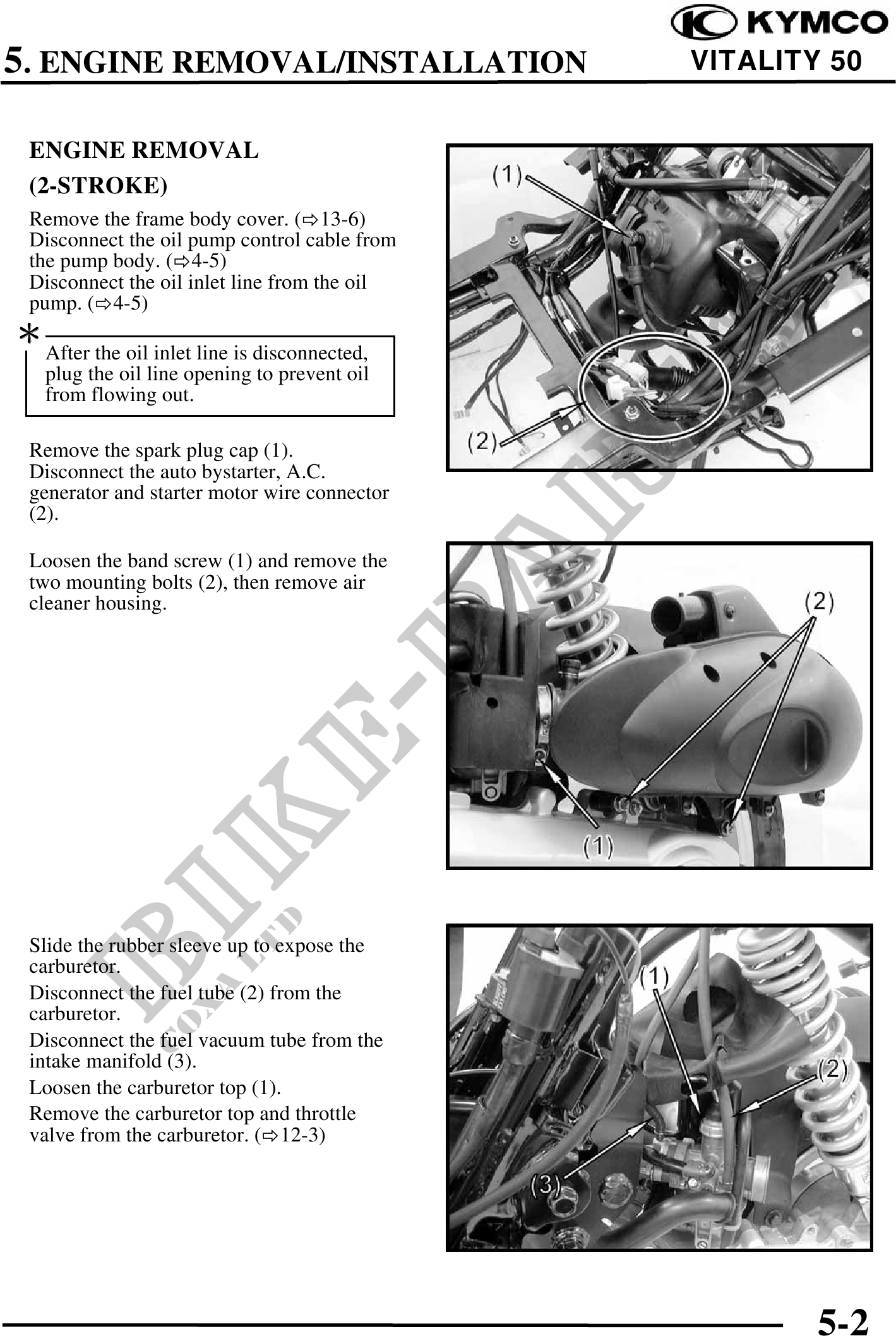

5. ENGINE REMOVAL/INSTALLATION VITALITY 50
ENGINE REMOVAL
(2-STROKE)
Remove the frame body cover. ( 13-6)
Disconnect the oil pump control cable from
the pump body. ( 4-5)
Disconnect the oil inlet line from the oil
pump. ( 4-5)
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
Remove the spark plug cap (1).
Disconnect the auto bystarter, A.C.
generator and starter motor wire connector
(2).
Loosen the band screw (1) and remove the
two mounting bolts (2), then remove air
cleaner housing.
Slide the rubber sleeve up to expose the
carburetor.
Disconnect the fuel tube (2) from the
carburetor.
Disconnect the fuel vacuum tube from the
intake manifold (3).
Loosen the carburetor top (1).
Remove the carburetor top and throttle
valve from the carburetor. ( 12-3)
5-2
