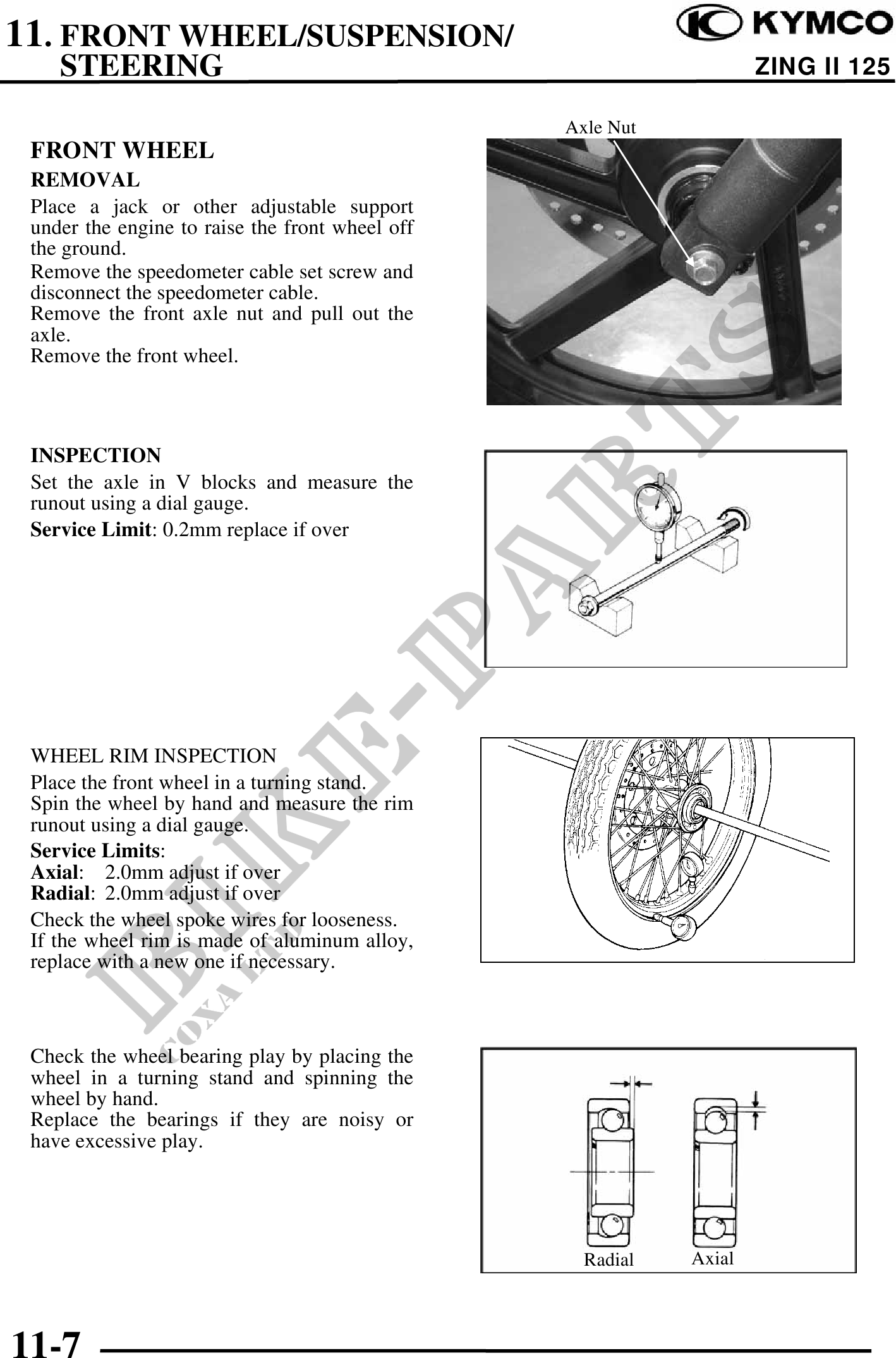

          11. FRONT WHEEL/SUSPENSION/
    STEERING                                                        ZING II 125

                                                 Axle Nut
 FRONT WHEEL
 REMOVAL
 Place a jack or other adjustable support
 under the engine to raise the front wheel off
 the ground.
 Remove the speedometer cable set screw and
 disconnect the speedometer cable.
 Remove the front axle nut and pull out the
 axle.
 Remove the front wheel.



 INSPECTION
 Set the axle in V blocks and measure the
 runout using a dial gauge.
 Service Limit: 0.2mm replace if over




 WHEEL RIM INSPECTION
 Place the front wheel in a turning stand.
 Spin the wheel by hand and measure the rim
 runout using a dial gauge.
 Service Limits:
 Axial: 2.0mm adjust if over
 Radial: 2.0mm adjust if over
 Check the wheel spoke wires for looseness.
 If the wheel rim is made of aluminum alloy,
 replace with a new one if necessary.



 Check the wheel bearing play by placing the
 wheel in a turning stand and spinning the
 wheel by hand.
 Replace the bearings if they are noisy or
 have excessive play.




                                                   Radial   Axial



11-7
