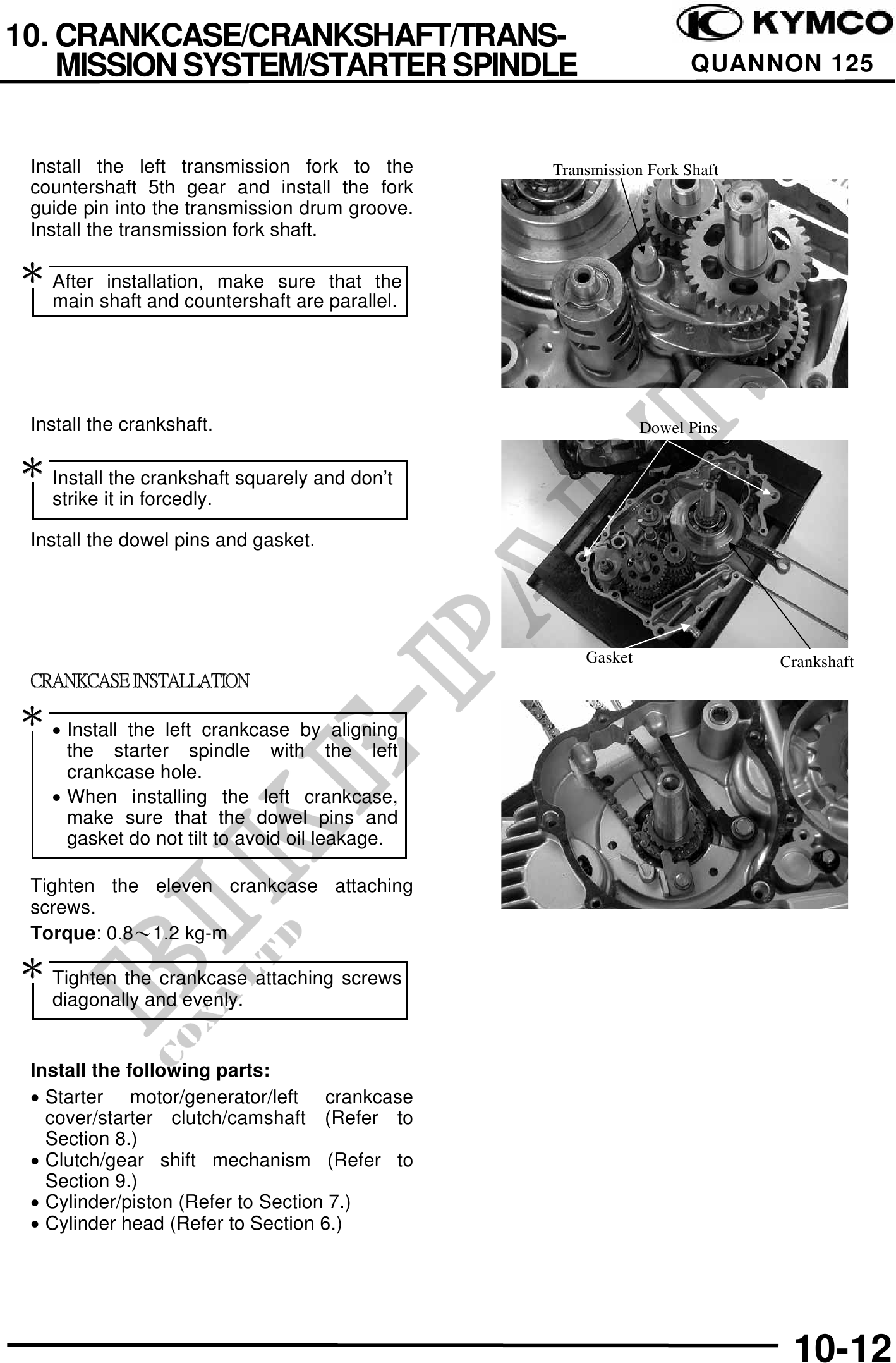

10. CRANKCASE/CRANKSHAFT/TRANS-
MISSION SYSTEM/STARTER SPINDLE QUANNON 125
Install the left transmission fork to the Transmission Fork Shaft
countershaft 5th gear and install the fork
guide pin into the transmission drum groove.
Install the transmission fork shaft.
After installation, make sure that the
main shaft and countershaft are parallel.
Install the crankshaft. Dowel Pins
Install the crankshaft squarely and don't
strike it in forcedly.
Install the dowel pins and gasket.
Gasket Crankshaft
CRANKCASE INSTALLATION
· Install the left crankcase by aligning
the starter spindle with the left
crankcase hole.
· When installing the left crankcase,
make sure that the dowel pins and
gasket do not tilt to avoid oil leakage.
Tighten the eleven crankcase attaching
screws.
Torque: 0.81.2 kg-m
Tighten the crankcase attaching screws
diagonally and evenly.
Install the following parts:
· Starter motor/generator/left crankcase
cover/starter clutch/camshaft (Refer to
Section 8.)
· Clutch/gear shift mechanism (Refer to
Section 9.)
· Cylinder/piston (Refer to Section 7.)
· Cylinder head (Refer to Section 6.)
10-12
