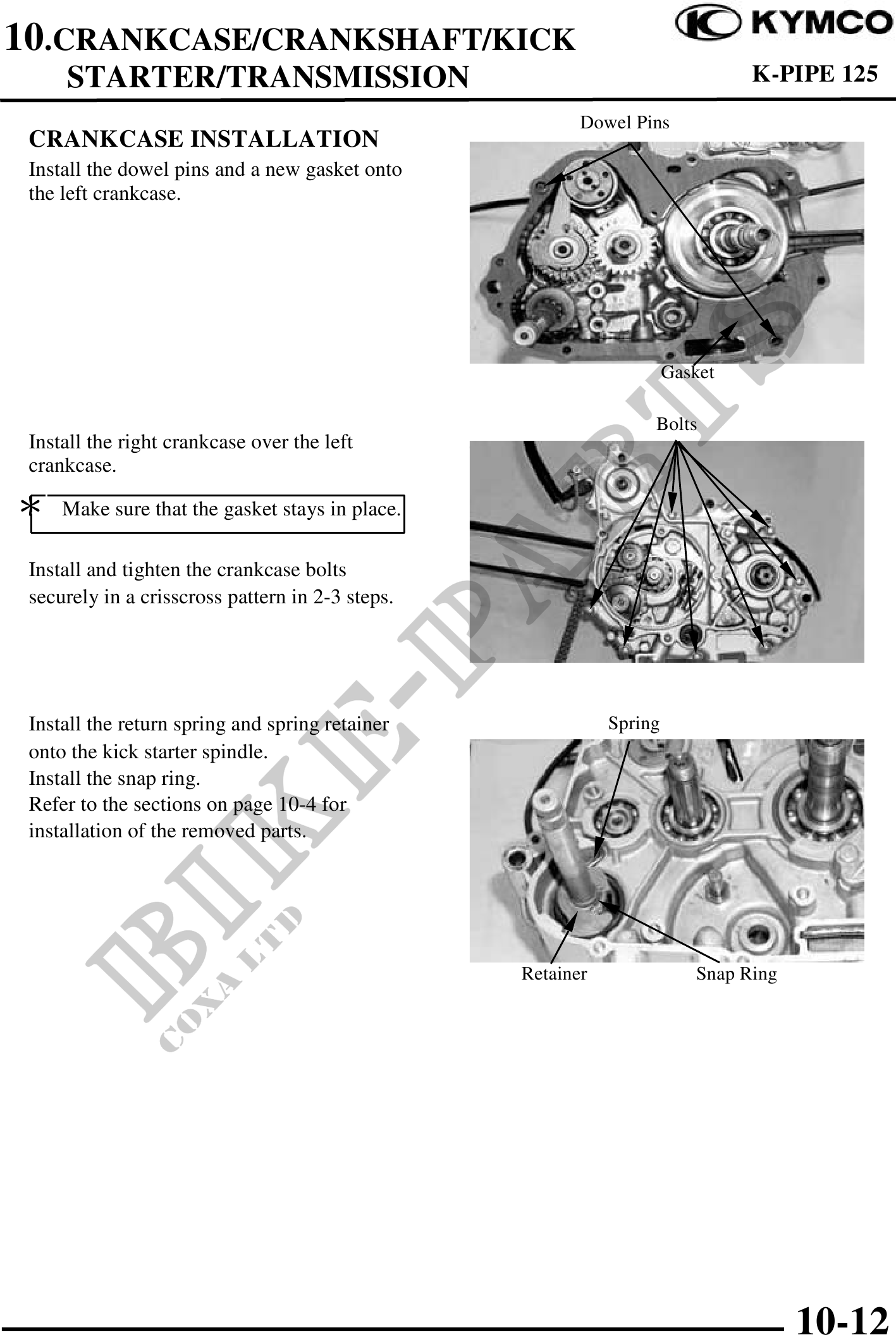

10.CRANKCASE/CRANKSHAFT/KICK
STARTER/TRANSMISSION K-PIPE 125
Dowel Pins
CRANKCASE INSTALLATION
Install the dowel pins and a new gasket onto
the left crankcase.
Gasket
Bolts
Install the right crankcase over the left
crankcase.
Make sure that the gasket stays in place.
Install and tighten the crankcase bolts
securely in a crisscross pattern in 2-3 steps.
Install the return spring and spring retainer Spring
onto the kick starter spindle.
Install the snap ring.
Refer to the sections on page 10-4 for
installation of the removed parts.
Retainer Snap Ring
10-12
