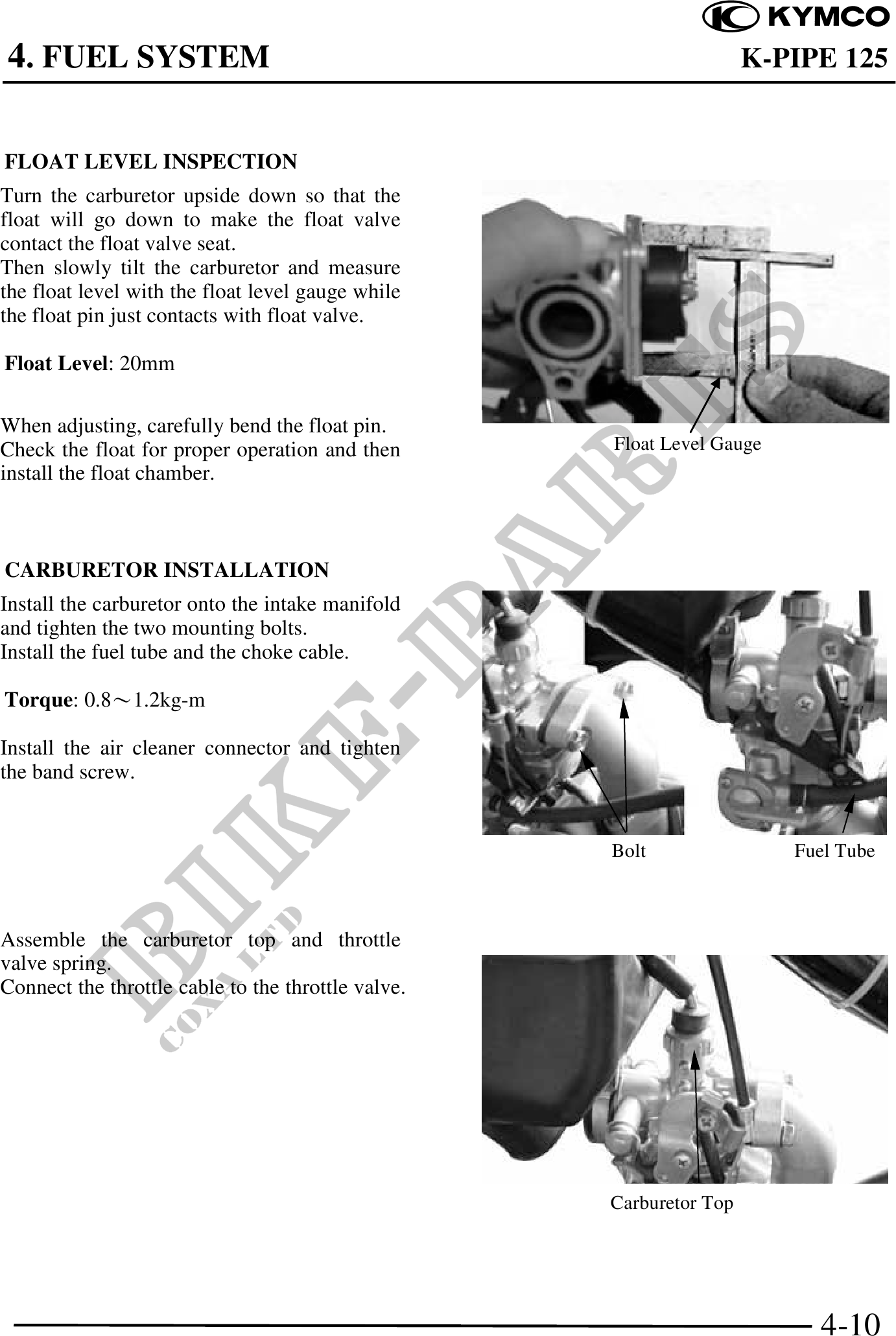

4. FUEL SYSTEM K-PIPE 125
FLOAT LEVEL INSPECTION
Turn the carburetor upside down so that the
float will go down to make the float valve
contact the float valve seat.
Then slowly tilt the carburetor and measure
the float level with the float level gauge while
the float pin just contacts with float valve.
Float Level: 20mm
When adjusting, carefully bend the float pin.
Check the float for proper operation and then Float Level Gauge
install the float chamber.
CARBURETOR INSTALLATION
Install the carburetor onto the intake manifold
and tighten the two mounting bolts.
Install the fuel tube and the choke cable.
Torque: 0.81.2kg-m
Install the air cleaner connector and tighten
the band screw.
Bolt Fuel Tube
Assemble the carburetor top and throttle
valve spring.
Connect the throttle cable to the throttle valve.
Carburetor Top
4-10
