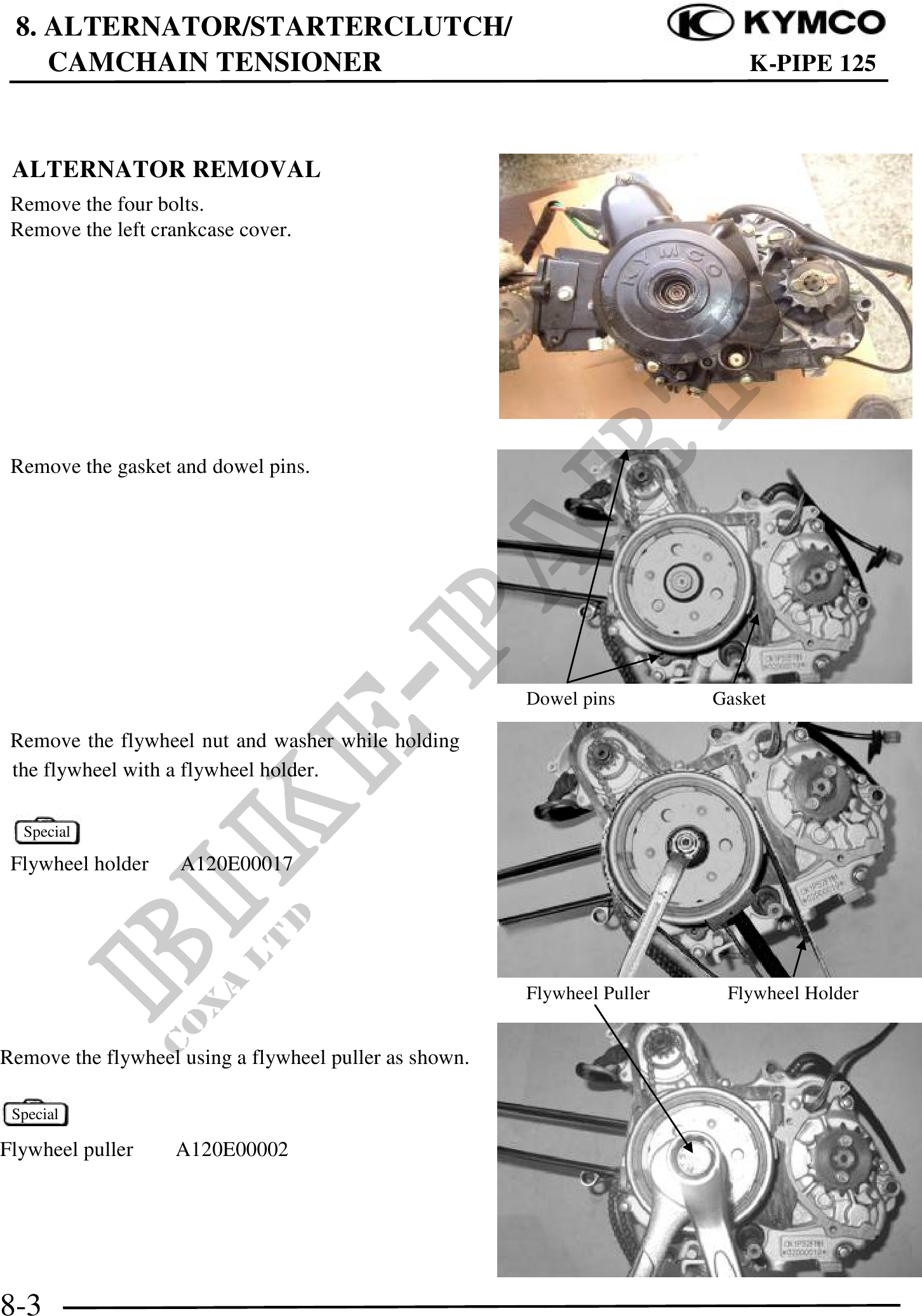

8. ALTERNATOR/STARTERCLUTCH/
CAMCHAIN TENSIONER K-PIPE 125
ALTERNATOR REMOVAL
Remove the four bolts.
Remove the left crankcase cover.
Remove the gasket and dowel pins.
Dowel pins Gasket
Remove the flywheel nut and washer while holding
the flywheel with a flywheel holder.
Special
Flywheel holder A120E00017
Flywheel Puller Flywheel Holder
Remove the flywheel using a flywheel puller as shown.
Special
Flywheel puller A120E00002
8-3
