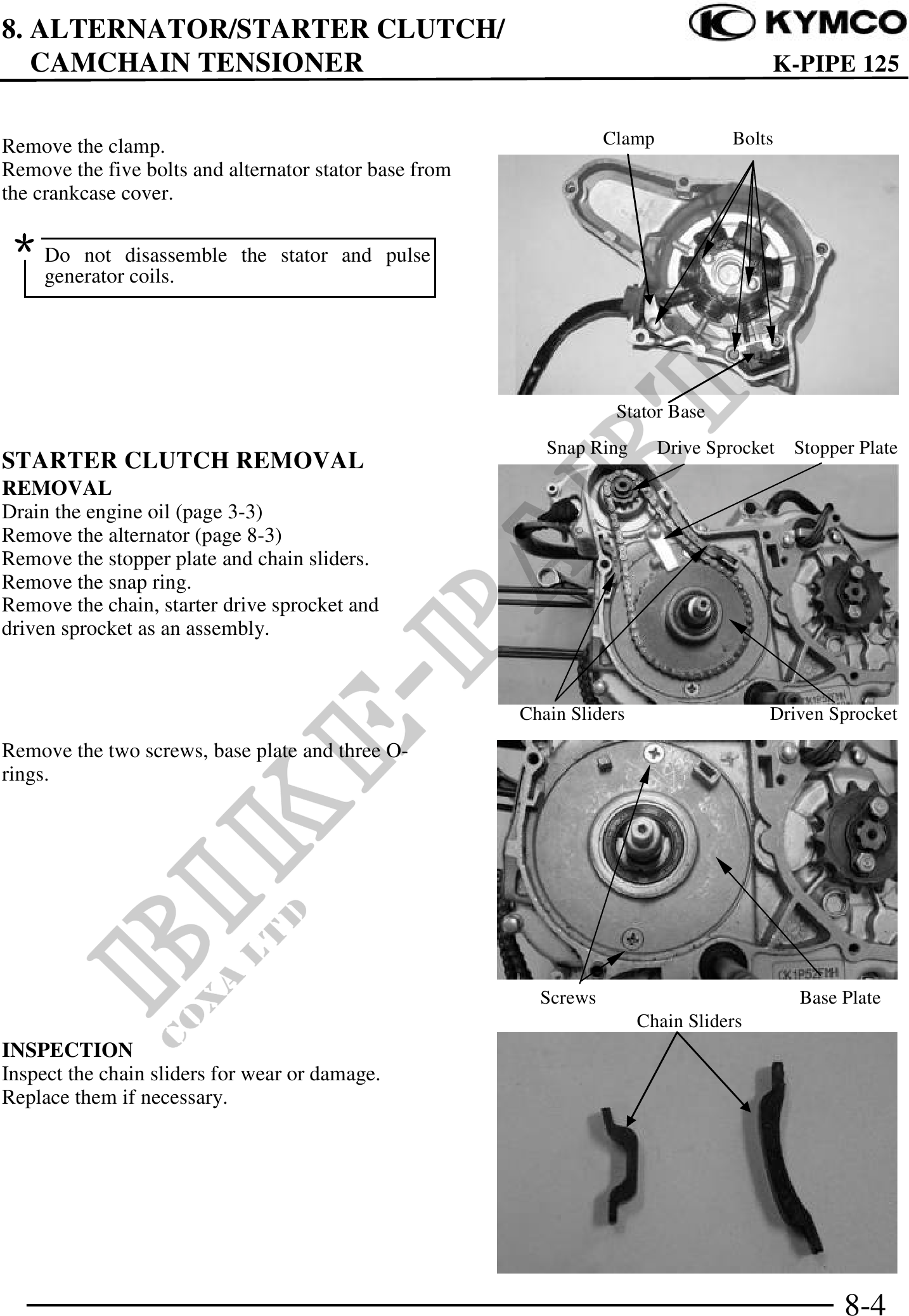

8. ALTERNATOR/STARTER CLUTCH/
CAMCHAIN TENSIONER K-PIPE 125
Remove the clamp. Clamp Bolts
Remove the five bolts and alternator stator base from
the crankcase cover.
Do not disassemble the stator and pulse
generator coils.
Stator Base
Snap Ring Drive Sprocket Stopper Plate
STARTER CLUTCH REMOVAL
REMOVAL
Drain the engine oil (page 3-3)
Remove the alternator (page 8-3)
Remove the stopper plate and chain sliders.
Remove the snap ring.
Remove the chain, starter drive sprocket and
driven sprocket as an assembly.
Chain Sliders Driven Sprocket
Remove the two screws, base plate and three O-
rings.
Screws Base Plate
Chain Sliders
INSPECTION
Inspect the chain sliders for wear or damage.
Replace them if necessary.
8-4
