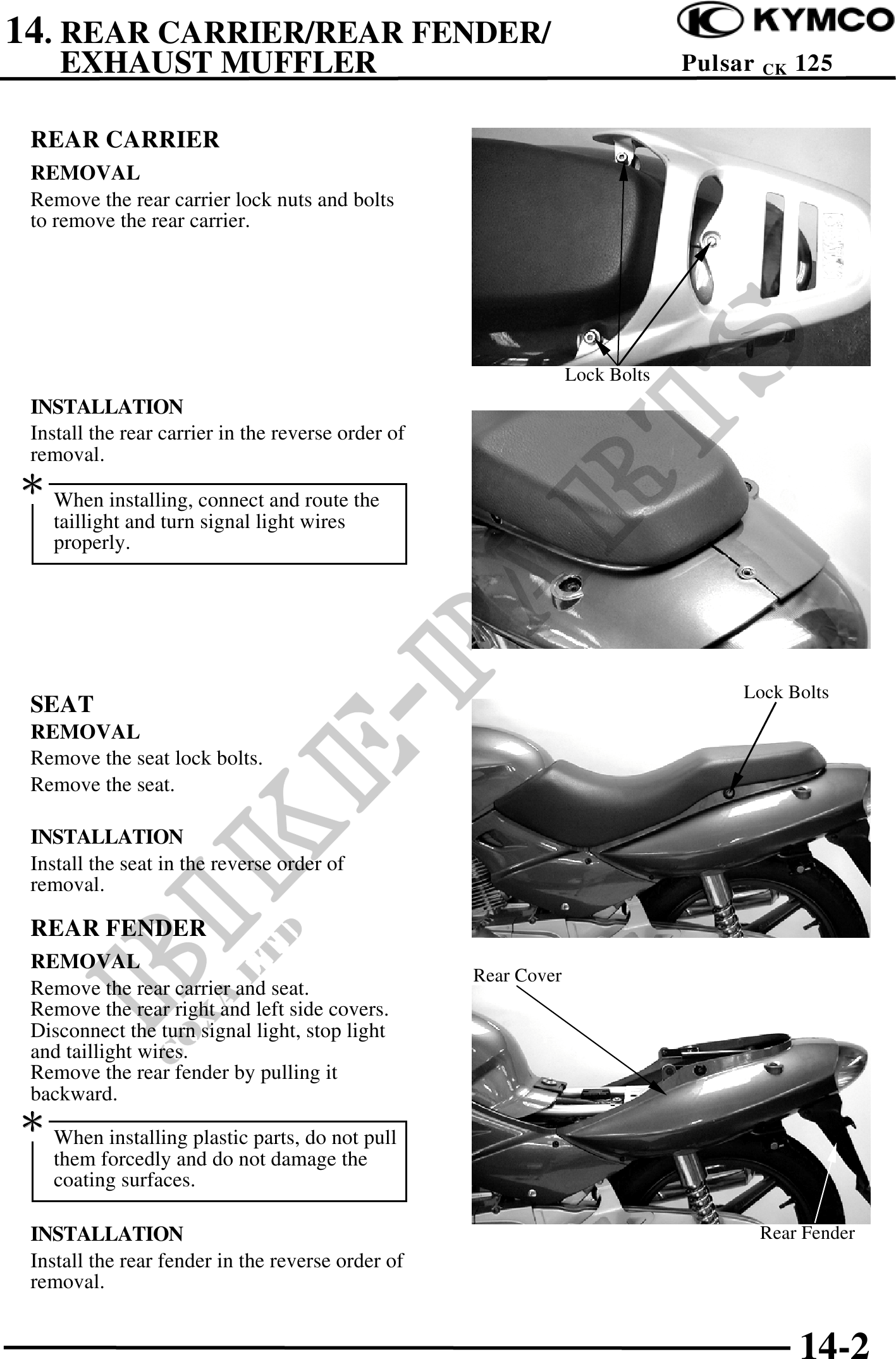

          14. REAR CARRIER/REAR FENDER/
    EXHAUST MUFFLER                                                           Pulsar   CK   125


 REAR CARRIER
 REMOVAL
 Remove the rear carrier lock nuts and bolts
 to remove the rear carrier.




                                                                 Lock Bolts
 INSTALLATION
 Install the rear carrier in the reverse order of
 removal.
 When installing, connect and route the
    taillight and turn signal light wires
    properly.




                                                                                   Lock Bolts
 SEAT
 REMOVAL
 Remove the seat lock bolts.
 Remove the seat.

 INSTALLATION
 Install the seat in the reverse order of
 removal.

 REAR FENDER
 REMOVAL
                                                    Rear Cover
 Remove the rear carrier and seat.
 Remove the rear right and left side covers.
 Disconnect the turn signal light, stop light
 and taillight wires.
 Remove the rear fender by pulling it
 backward.
 When installing plastic parts, do not pull
    them forcedly and do not damage the
    coating surfaces.

 INSTALLATION                                                                          Rear Fender
 Install the rear fender in the reverse order of
 removal.


                                                                                            14-2
