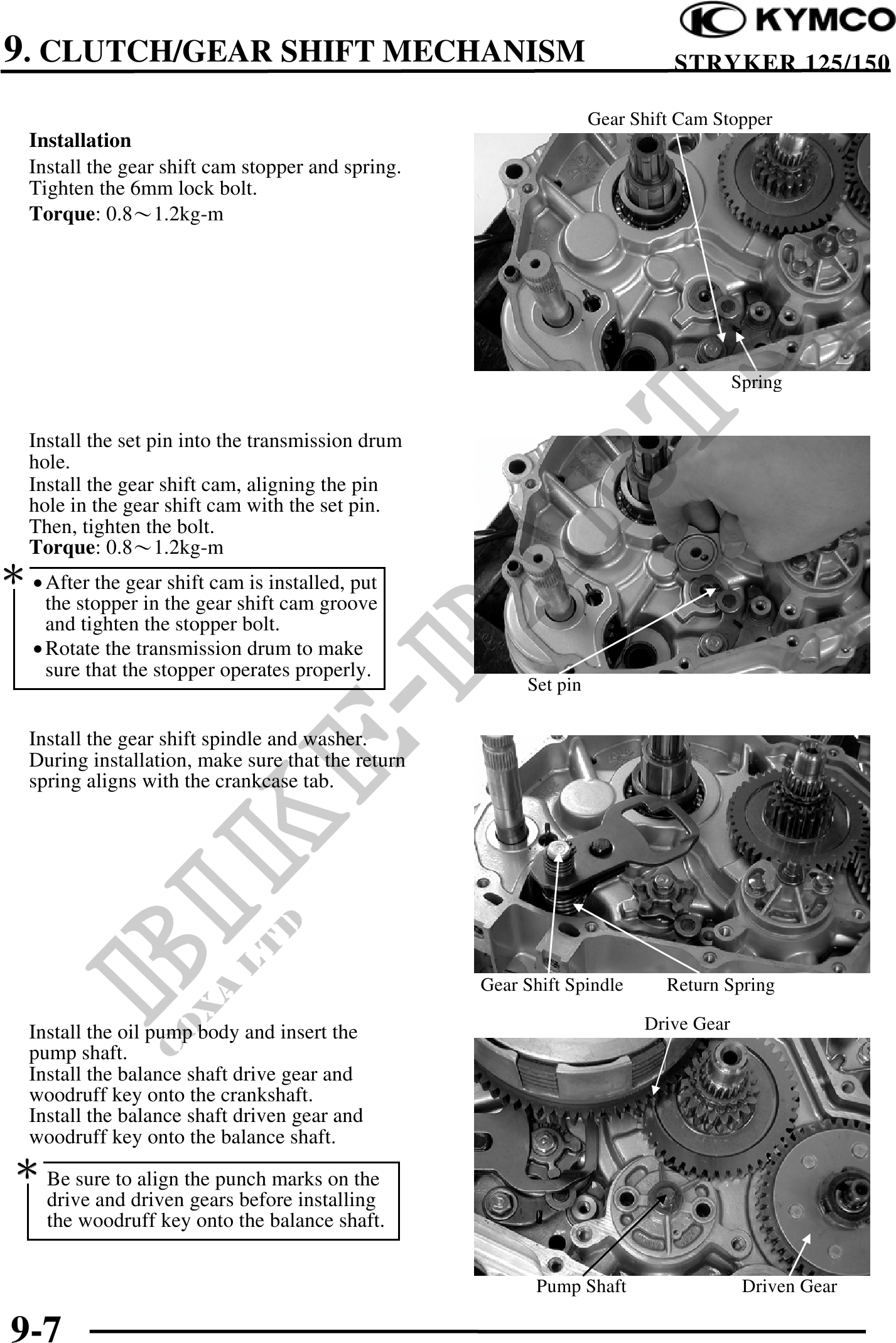

          9. CLUTCH/GEAR SHIFT MECHANISM                                               STRYKER 125/150

                                                                   Gear Shift Cam Stopper
   Installation
   Install the gear shift cam stopper and spring.
   Tighten the 6mm lock bolt.
   Torque: 0.81.2kg-m




                                                                                      Spring


   Install the set pin into the transmission drum
   hole.
   Install the gear shift cam, aligning the pin
   hole in the gear shift cam with the set pin.
   Then, tighten the bolt.
   Torque: 0.81.2kg-m
 · After the gear shift cam is installed, put
      the stopper in the gear shift cam groove
      and tighten the stopper bolt.
    · Rotate the transmission drum to make
      sure that the stopper operates properly.
                                                         Set pin

   Install the gear shift spindle and washer.
   During installation, make sure that the return
   spring aligns with the crankcase tab.




                                                    Gear Shift Spindle      Return Spring

   Install the oil pump body and insert the                              Drive Gear
   pump shaft.
   Install the balance shaft drive gear and
   woodruff key onto the crankshaft.
   Install the balance shaft driven gear and
   woodruff key onto the balance shaft.
  Be sure to align the punch marks on the
     drive and driven gears before installing
     the woodruff key onto the balance shaft.


                                                           Pump Shaft                  Driven Gear

 9-7
