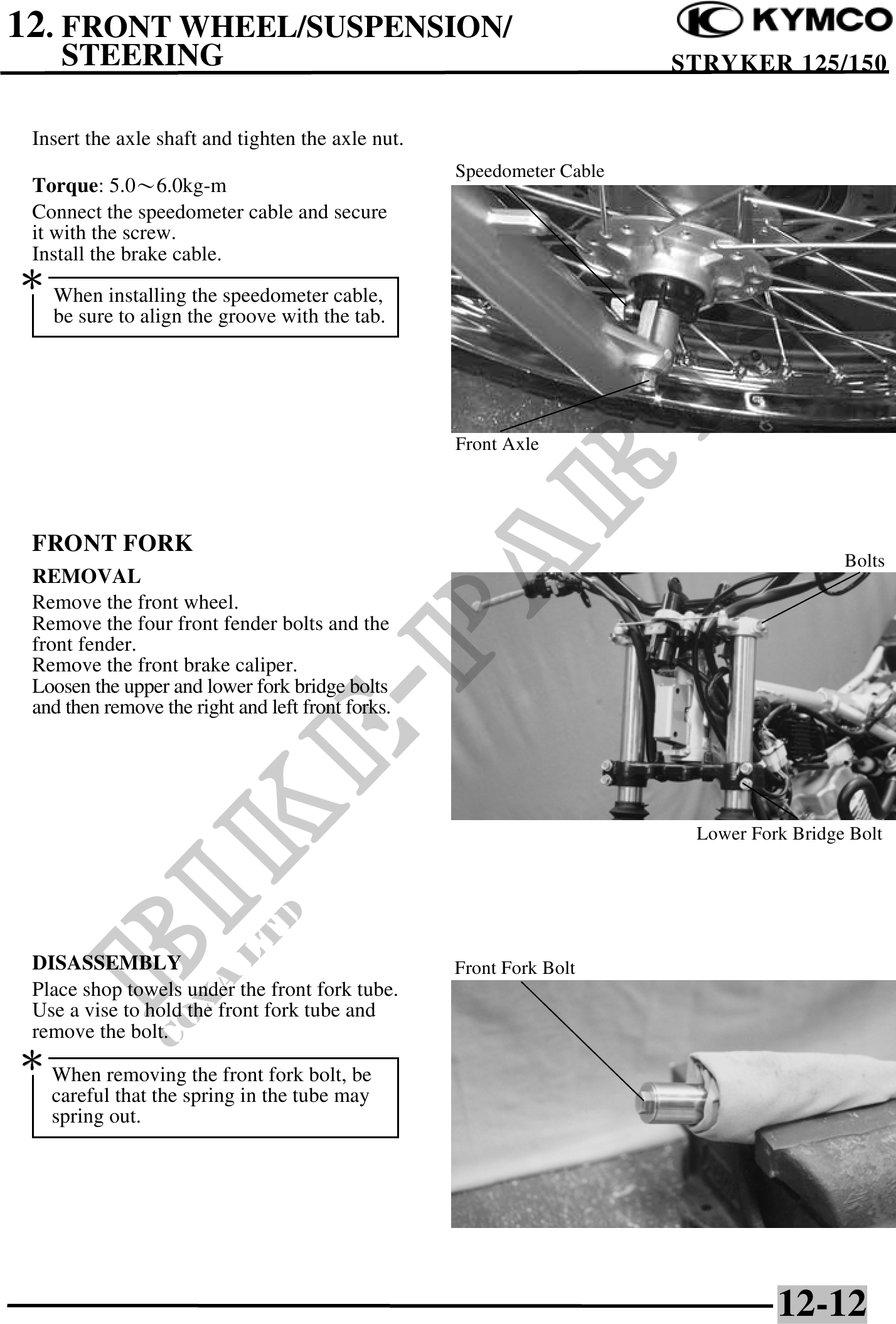

12. FRONT WHEEL/SUSPENSION/
STEERING STRYKER 125/150
Insert the axle shaft and tighten the axle nut.
Speedometer Cable
Torque: 5.06.0kg-m
Connect the speedometer cable and secure
it with the screw.
Install the brake cable.
When installing the speedometer cable,
be sure to align the groove with the tab.
Front Axle
FRONT FORK
Bolts
REMOVAL
Remove the front wheel.
Remove the four front fender bolts and the
front fender.
Remove the front brake caliper.
Loosen the upper and lower fork bridge bolts
and then remove the right and left front forks.
Lower Fork Bridge Bolt
DISASSEMBLY Front Fork Bolt
Place shop towels under the front fork tube.
Use a vise to hold the front fork tube and
remove the bolt.
When removing the front fork bolt, be
careful that the spring in the tube may
spring out.
12-12
