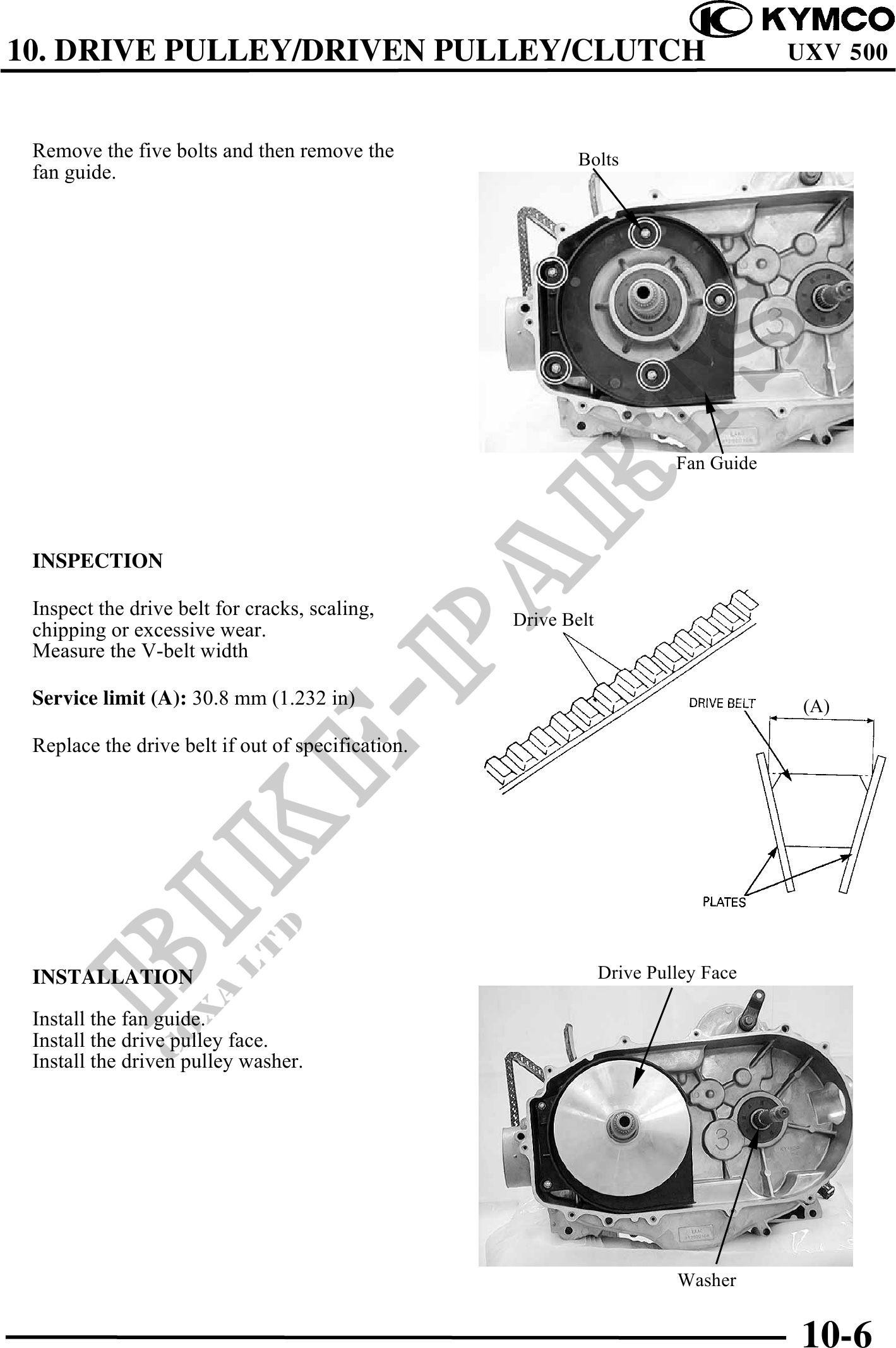

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH UXV 500
Remove the five bolts and then remove the Bolts
fan guide.
Fan Guide
INSPECTION
Inspect the drive belt for cracks, scaling, Drive Belt
chipping or excessive wear.
Measure the V-belt width
Service limit (A): 30.8 mm (1.232 in) (A)
Replace the drive belt if out of specification.
INSTALLATION Drive Pulley Face
Install the fan guide.
Install the drive pulley face.
Install the driven pulley washer.
Washer
10-6
