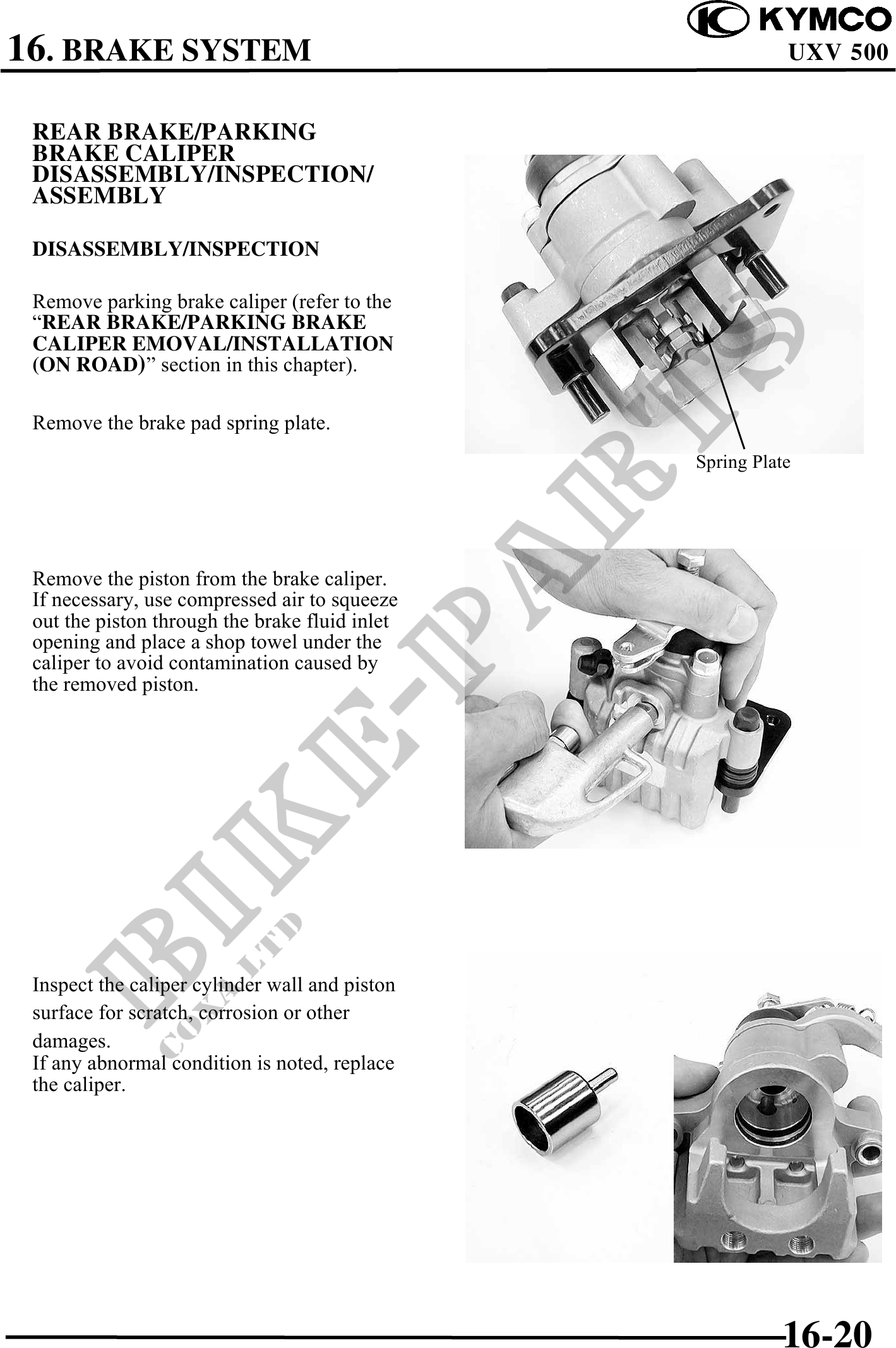

16. BRAKE SYSTEM UXV 500
REAR BRAKE/PARKING
BRAKE CALIPER
DISASSEMBLY/INSPECTION/
ASSEMBLY
DISASSEMBLY/INSPECTION
Remove parking brake caliper (refer to the
"REAR BRAKE/PARKING BRAKE
CALIPER EMOVAL/INSTALLATION
(ON ROAD)" section in this chapter).
Remove the brake pad spring plate.
Spring Plate
Remove the piston from the brake caliper.
If necessary, use compressed air to squeeze
out the piston through the brake fluid inlet
opening and place a shop towel under the
caliper to avoid contamination caused by
the removed piston.
Inspect the caliper cylinder wall and piston
surface for scratch, corrosion or other
damages.
If any abnormal condition is noted, replace
the caliper.
16-20
