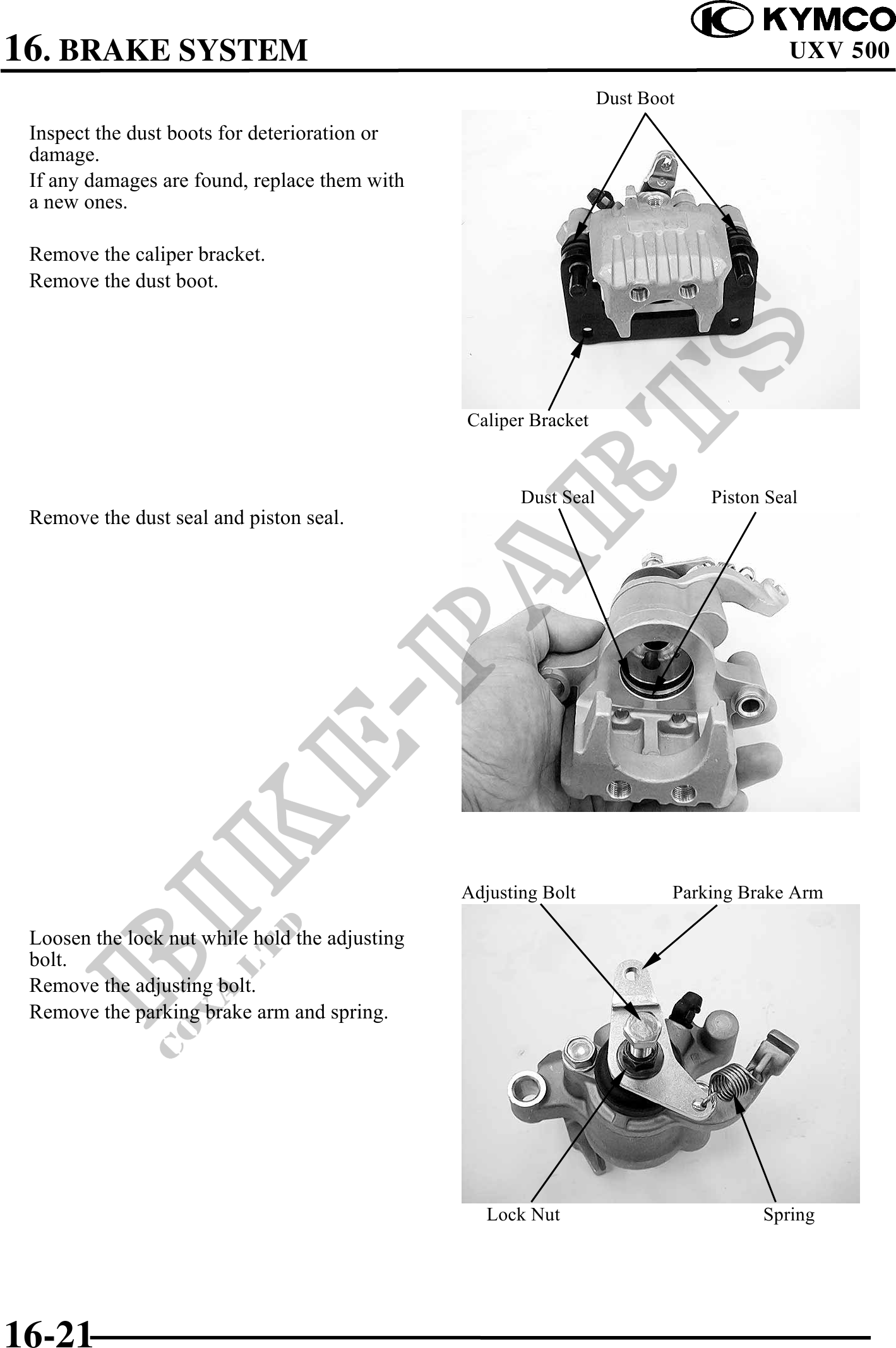

16. BRAKE SYSTEM UXV 500
Dust Boot
Inspect the dust boots for deterioration or
damage.
If any damages are found, replace them with
a new ones.
Remove the caliper bracket.
Remove the dust boot.
Caliper Bracket
Dust Seal Piston Seal
Remove the dust seal and piston seal.
Adjusting Bolt Parking Brake Arm
Loosen the lock nut while hold the adjusting
bolt.
Remove the adjusting bolt.
Remove the parking brake arm and spring.
Lock Nut Spring
16-21
