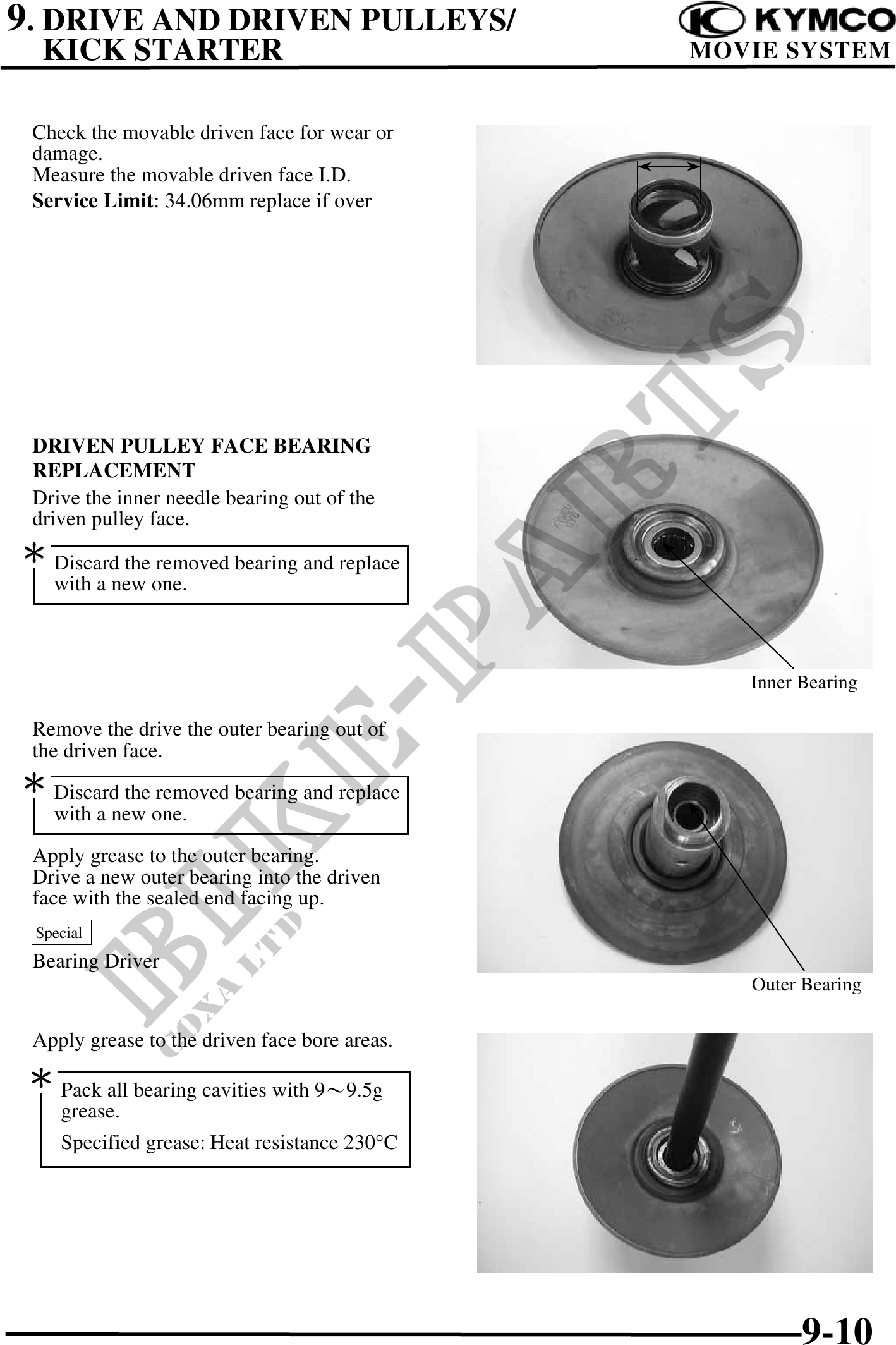

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER MOVIE SYSTEM
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit: 34.06mm replace if over
DRIVEN PULLEY FACE BEARING
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Discard the removed bearing and replace
with a new one.
Inner Bearing
Remove the drive the outer bearing out of
the driven face.
Discard the removed bearing and replace
with a new one.
Apply grease to the outer bearing.
Drive a new outer bearing into the driven
face with the sealed end facing up.
Special
Bearing Driver
Outer Bearing
Apply grease to the driven face bore areas.
Pack all bearing cavities with 99.5g
grease.
Specified grease: Heat resistance 230°C
9-10
