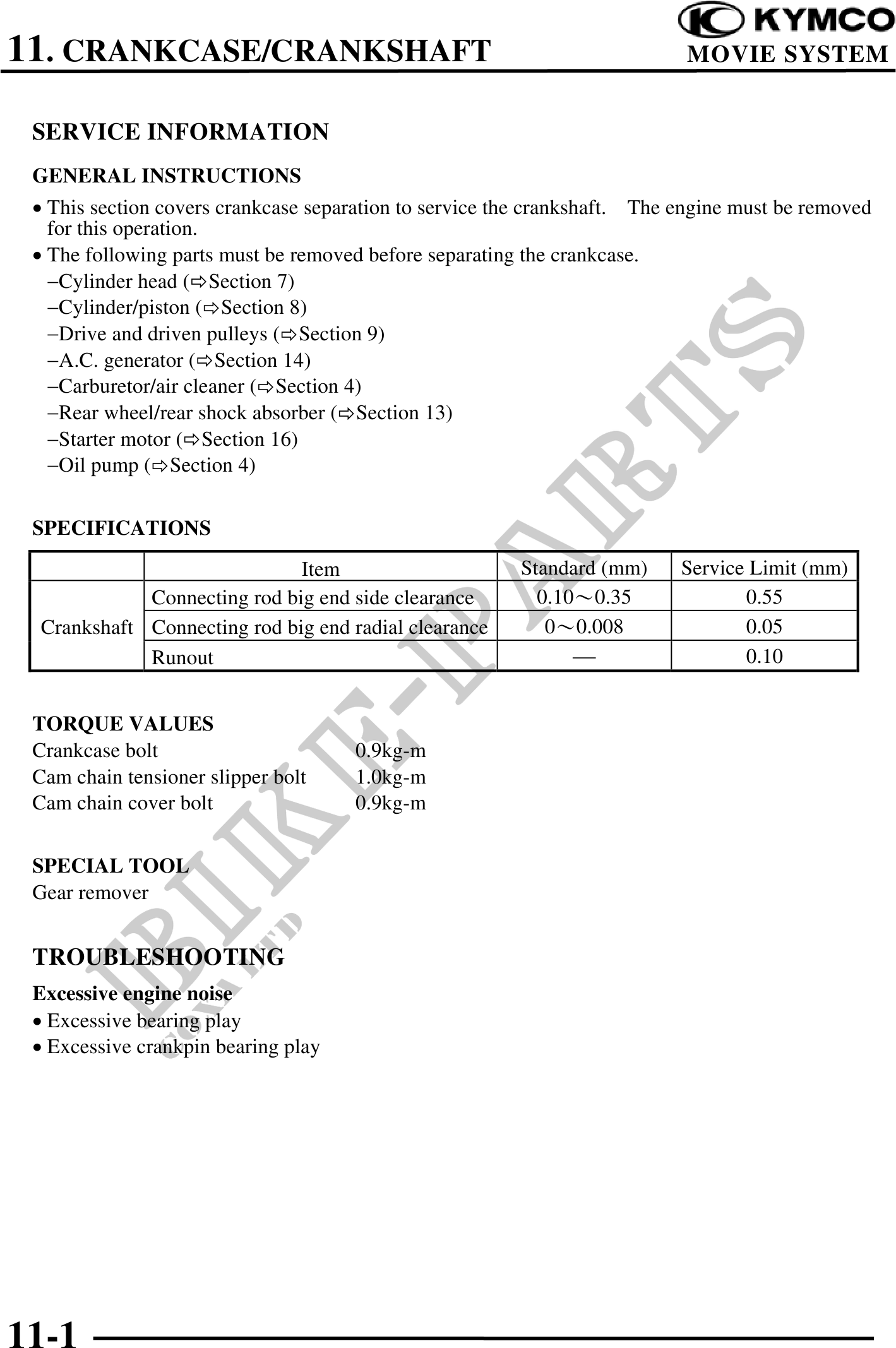

          11. CRANKCASE/CRANKSHAFT                                                   MOVIE SYSTEM


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · This section covers crankcase separation to service the crankshaft. The engine must be removed
   for this operation.
 · The following parts must be removed before separating the crankcase.
   -Cylinder head ( Section 7)
   -Cylinder/piston ( Section 8)
   -Drive and driven pulleys ( Section 9)
   -A.C. generator ( Section 14)
   -Carburetor/air cleaner ( Section 4)
   -Rear wheel/rear shock absorber ( Section 13)
   -Starter motor ( Section 16)
   -Oil pump ( Section 4)


 SPECIFICATIONS
                             Item                       Standard (mm)      Service Limit (mm)
            Connecting rod big end side clearance         0.100.35                0.55
 Crankshaft Connecting rod big end radial clearance        00.008                 0.05
            Runout                                                                0.10


 TORQUE VALUES
 Crankcase bolt                      0.9kg-m
 Cam chain tensioner slipper bolt    1.0kg-m
 Cam chain cover bolt                0.9kg-m


 SPECIAL TOOL
 Gear remover


 TROUBLESHOOTING
 Excessive engine noise
 · Excessive bearing play
 · Excessive crankpin bearing play




11-1
