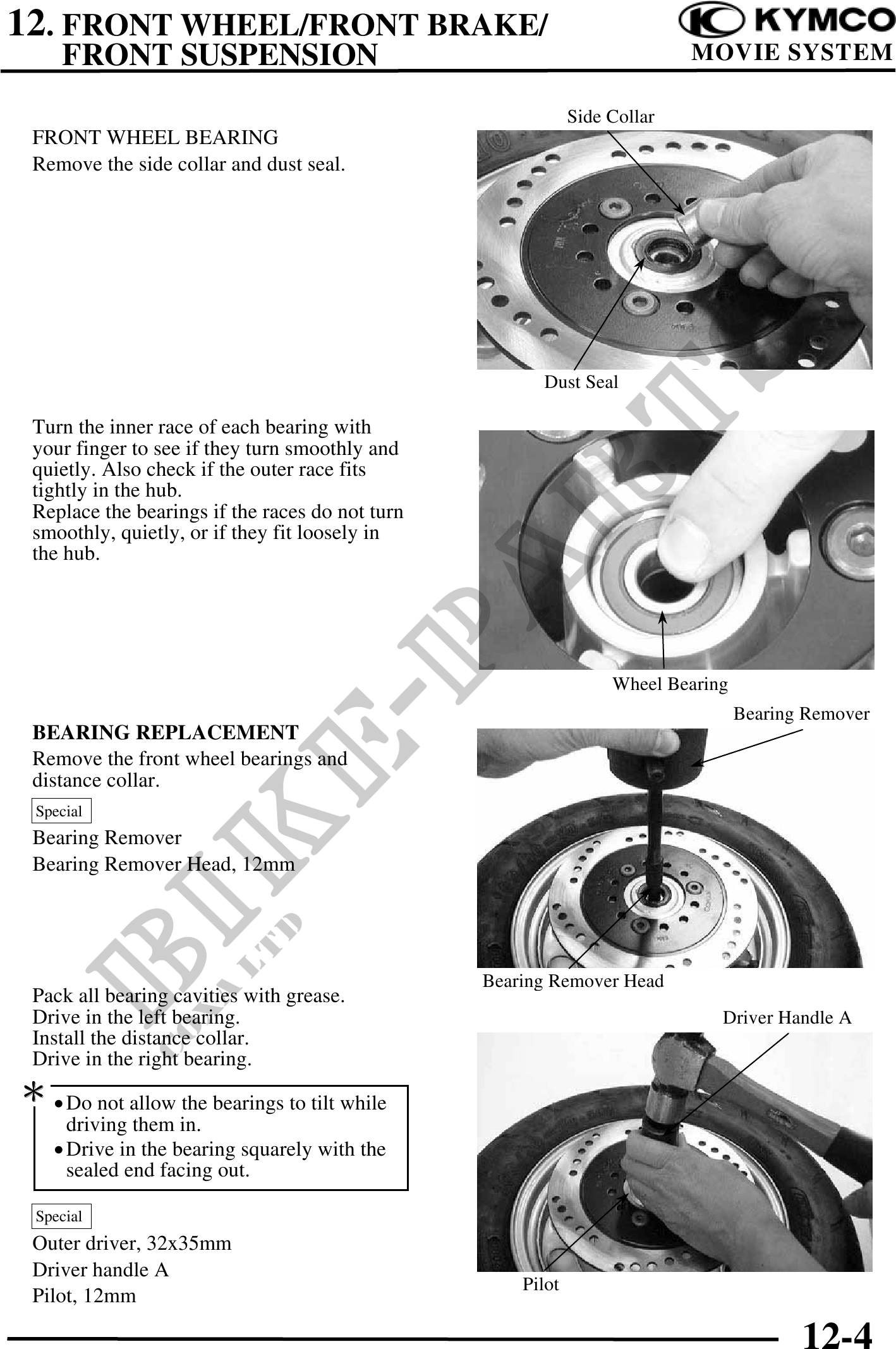

          12. FRONT WHEEL/FRONT BRAKE/
     FRONT SUSPENSION                                                      MOVIE SYSTEM

                                                             Side Collar
 FRONT WHEEL BEARING
 Remove the side collar and dust seal.




                                                       Dust Seal

 Turn the inner race of each bearing with
 your finger to see if they turn smoothly and
 quietly. Also check if the outer race fits
 tightly in the hub.
 Replace the bearings if the races do not turn
 smoothly, quietly, or if they fit loosely in
 the hub.




                                                                  Wheel Bearing
                                                                                  Bearing Remover
 BEARING REPLACEMENT
 Remove the front wheel bearings and
 distance collar.
  Special
 Bearing Remover
 Bearing Remover Head, 12mm




                                                 Bearing Remover Head
 Pack all bearing cavities with grease.
 Drive in the left bearing.                                                   Driver Handle A
 Install the distance collar.
 Drive in the right bearing.
 · Do not allow the bearings to tilt while
      driving them in.
    · Drive in the bearing squarely with the
      sealed end facing out.

  Special
 Outer driver, 32x35mm
 Driver handle A
                                                     Pilot
 Pilot, 12mm

                                                                                         12-4
