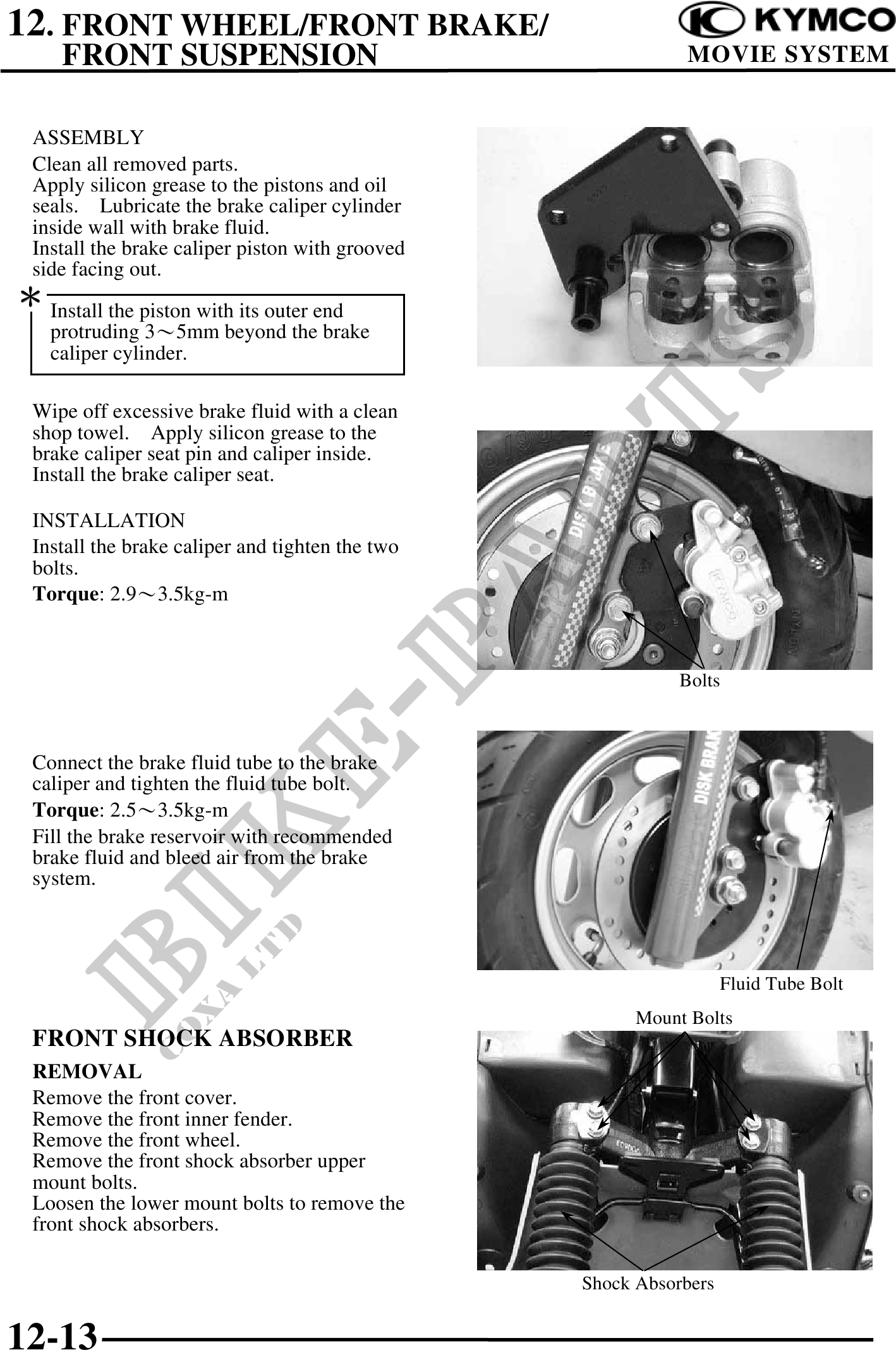

          12. FRONT WHEEL/FRONT BRAKE/
     FRONT SUSPENSION                                         MOVIE SYSTEM


  ASSEMBLY
  Clean all removed parts.
  Apply silicon grease to the pistons and oil
  seals. Lubricate the brake caliper cylinder
  inside wall with brake fluid.
  Install the brake caliper piston with grooved
  side facing out.
 Install the piston with its outer end
    protruding 35mm beyond the brake
    caliper cylinder.

  Wipe off excessive brake fluid with a clean
  shop towel. Apply silicon grease to the
  brake caliper seat pin and caliper inside.
  Install the brake caliper seat.

  INSTALLATION
  Install the brake caliper and tighten the two
  bolts.
  Torque: 2.93.5kg-m



                                                             Bolts



  Connect the brake fluid tube to the brake
  caliper and tighten the fluid tube bolt.
  Torque: 2.53.5kg-m
  Fill the brake reservoir with recommended
  brake fluid and bleed air from the brake
  system.



                                                                    Fluid Tube Bolt
                                                        Mount Bolts
  FRONT SHOCK ABSORBER
  REMOVAL
  Remove the front cover.
  Remove the front inner fender.
  Remove the front wheel.
  Remove the front shock absorber upper
  mount bolts.
  Loosen the lower mount bolts to remove the
  front shock absorbers.

                                                  Shock Absorbers


12-13
