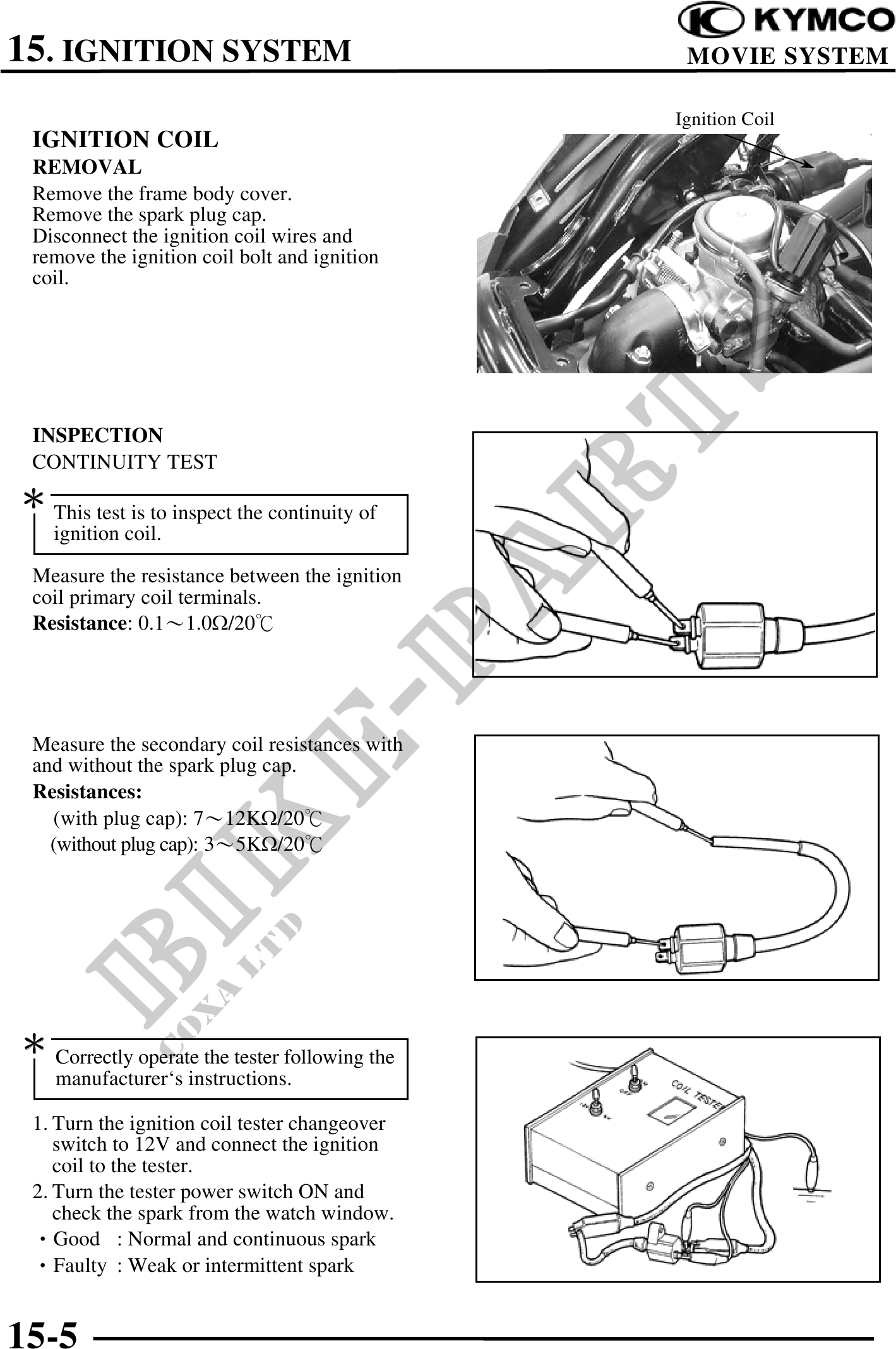

15. IGNITION SYSTEM MOVIE SYSTEM
Ignition Coil
IGNITION COIL
REMOVAL
Remove the frame body cover.
Remove the spark plug cap.
Disconnect the ignition coil wires and
remove the ignition coil bolt and ignition
coil.
INSPECTION
CONTINUITY TEST
This test is to inspect the continuity of
ignition coil.
Measure the resistance between the ignition
coil primary coil terminals.
Resistance: 0.11.0/20
Measure the secondary coil resistances with
and without the spark plug cap.
Resistances:
(with plug cap): 712K/20
(without plug cap): 35K/20
Correctly operate the tester following the
manufacturer`s instructions.
1. Turn the ignition coil tester changeover
switch to 12V and connect the ignition
coil to the tester.
2. Turn the tester power switch ON and
check the spark from the watch window.
Good : Normal and continuous spark
Faulty : Weak or intermittent spark
15-5
