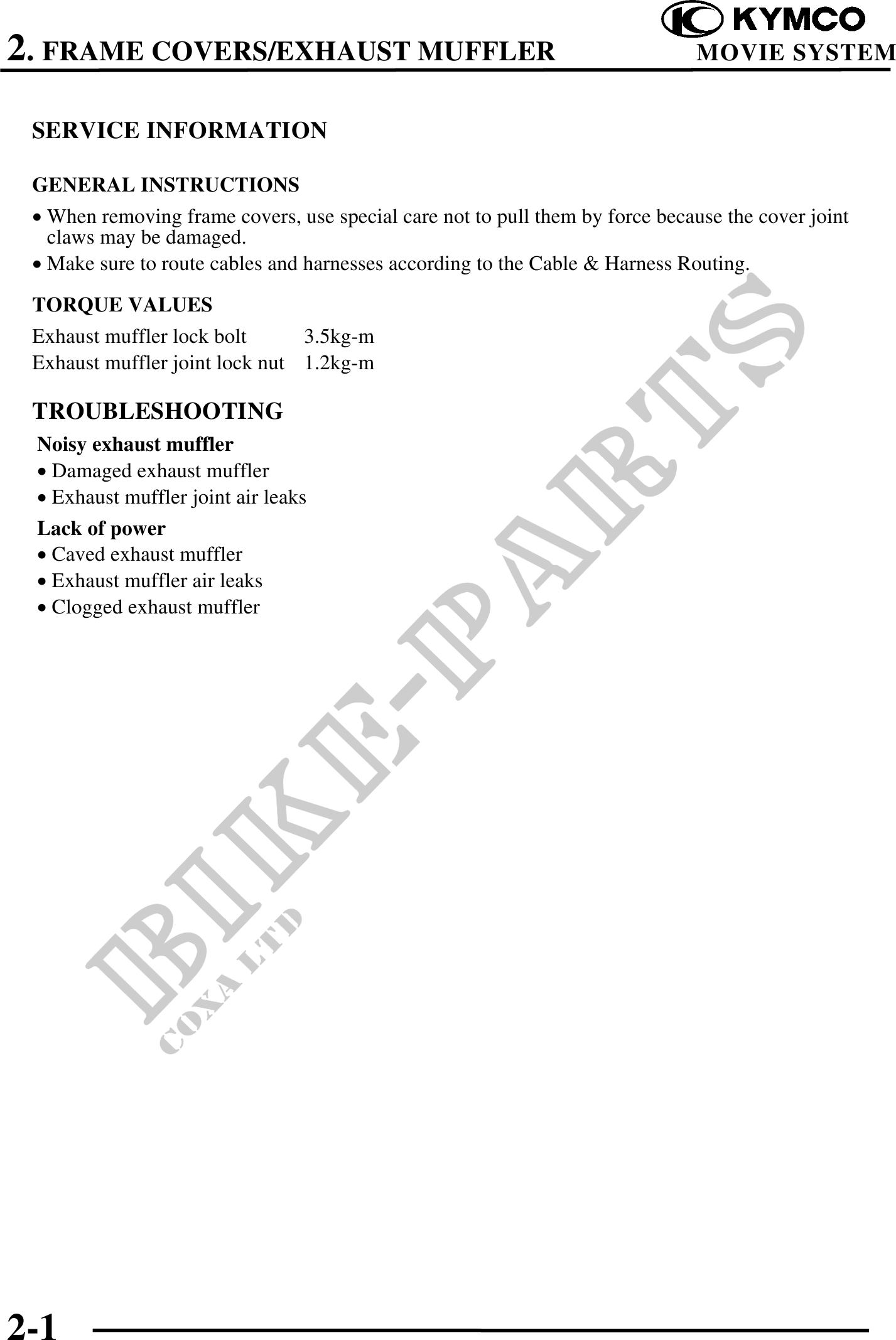

2. FRAME COVERS/EXHAUST MUFFLER MOVIE SYSTEM
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· When removing frame covers, use special care not to pull them by force because the cover joint
claws may be damaged.
· Make sure to route cables and harnesses according to the Cable & Harness Routing.
TORQUE VALUES
Exhaust muffler lock bolt 3.5kg-m
Exhaust muffler joint lock nut 1.2kg-m
TROUBLESHOOTING
Noisy exhaust muffler
· Damaged exhaust muffler
· Exhaust muffler joint air leaks
Lack of power
· Caved exhaust muffler
· Exhaust muffler air leaks
· Clogged exhaust muffler
2-1
