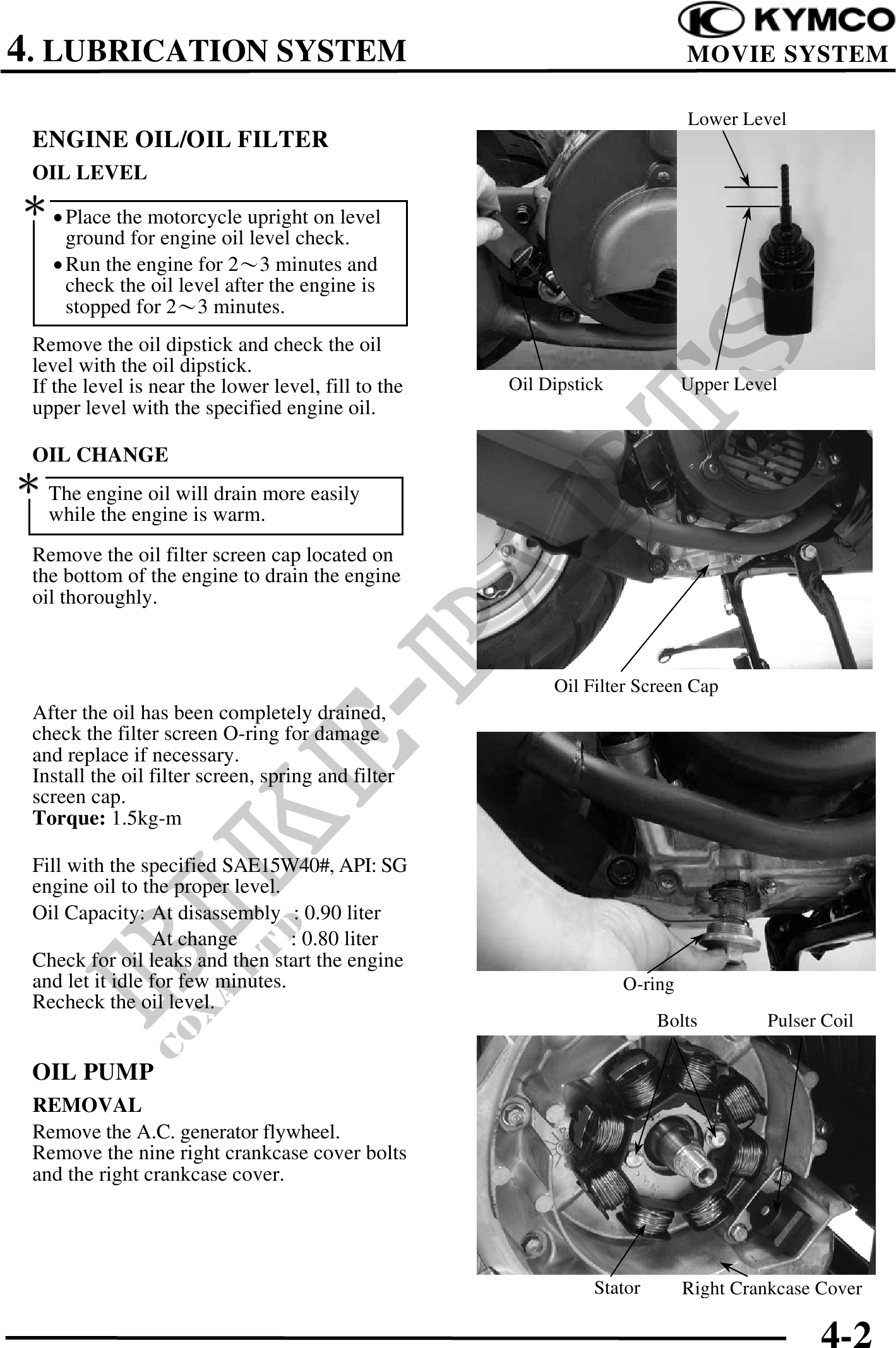

          4. LUBRICATION SYSTEM                                                         MOVIE SYSTEM

                                                                              Lower Level
  ENGINE OIL/OIL FILTER
  OIL LEVEL
 · Place the motorcycle upright on level
      ground for engine oil level check.
    · Run the engine for 23 minutes and
      check the oil level after the engine is
      stopped for 23 minutes.
  Remove the oil dipstick and check the oil
  level with the oil dipstick.
  If the level is near the lower level, fill to the   Oil Dipstick            Upper Level
  upper level with the specified engine oil.

  OIL CHANGE
 The engine oil will drain more easily
    while the engine is warm.
  Remove the oil filter screen cap located on
  the bottom of the engine to drain the engine
  oil thoroughly.



                                                           Oil Filter Screen Cap
  After the oil has been completely drained,
  check the filter screen O-ring for damage
  and replace if necessary.
  Install the oil filter screen, spring and filter
  screen cap.
  Torque: 1.5kg-m

  Fill with the specified SAE15W40#, API: SG
  engine oil to the proper level.
  Oil Capacity: At disassembly : 0.90 liter
                  At change        : 0.80 liter
  Check for oil leaks and then start the engine
  and let it idle for few minutes.                                   O-ring
  Recheck the oil level.
                                                                         Bolts         Pulser Coil

  OIL PUMP
  REMOVAL
  Remove the A.C. generator flywheel.
  Remove the nine right crankcase cover bolts
  and the right crankcase cover.




                                                                Stator        Right Crankcase Cover

                                                                                              4-2
