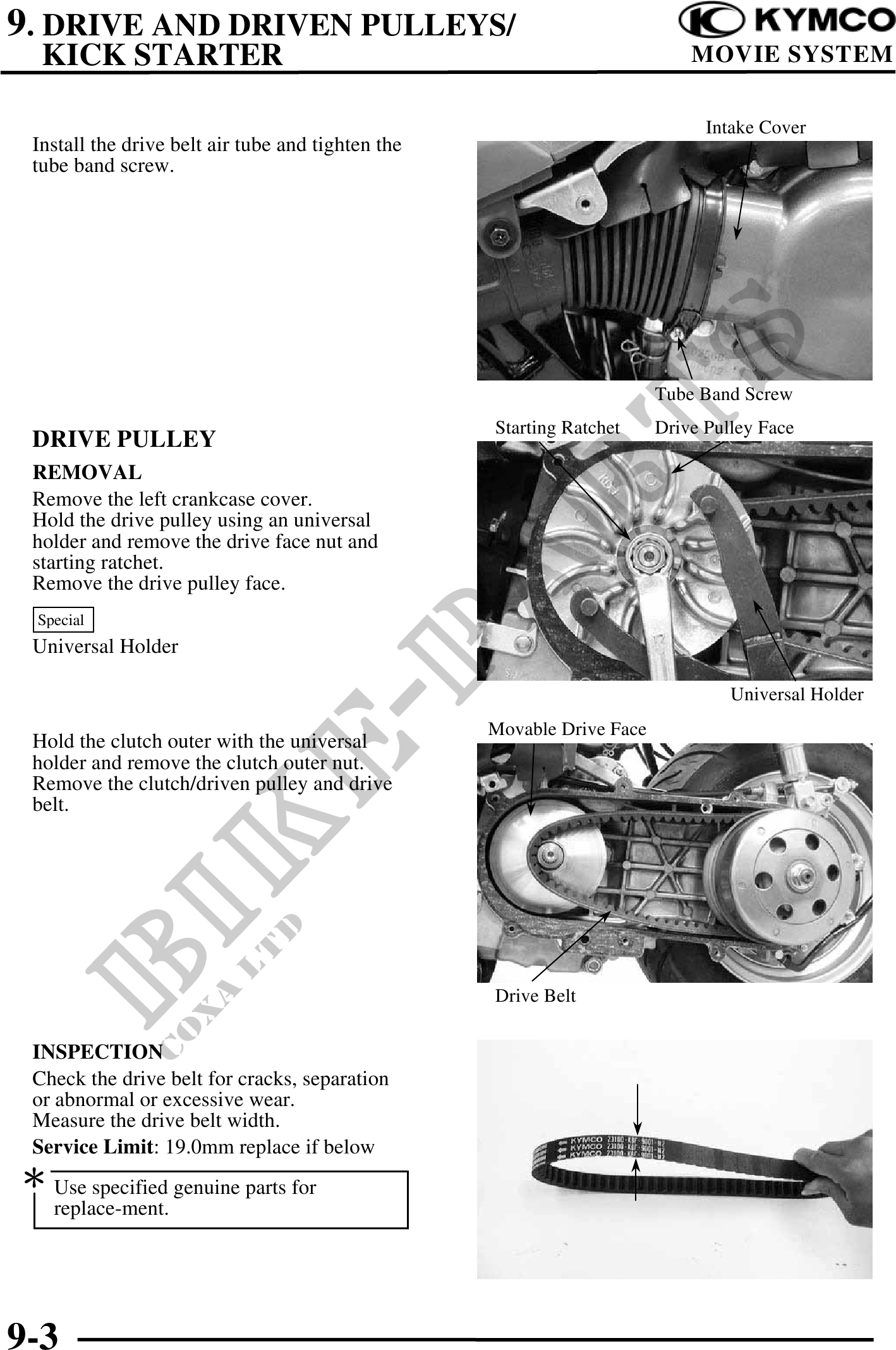

          9. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                              MOVIE SYSTEM

                                                                              Intake Cover
 Install the drive belt air tube and tighten the
 tube band screw.




                                                                        Tube Band Screw
                                                   Starting Ratchet     Drive Pulley Face
 DRIVE PULLEY
 REMOVAL
 Remove the left crankcase cover.
 Hold the drive pulley using an universal
 holder and remove the drive face nut and
 starting ratchet.
 Remove the drive pulley face.
  Special
 Universal Holder

                                                                                 Universal Holder
                                                   Movable Drive Face
 Hold the clutch outer with the universal
 holder and remove the clutch outer nut.
 Remove the clutch/driven pulley and drive
 belt.




                                                   Drive Belt

 INSPECTION
 Check the drive belt for cracks, separation
 or abnormal or excessive wear.
 Measure the drive belt width.
 Service Limit: 19.0mm replace if below
 Use specified genuine parts for
    replace-ment.




9-3
