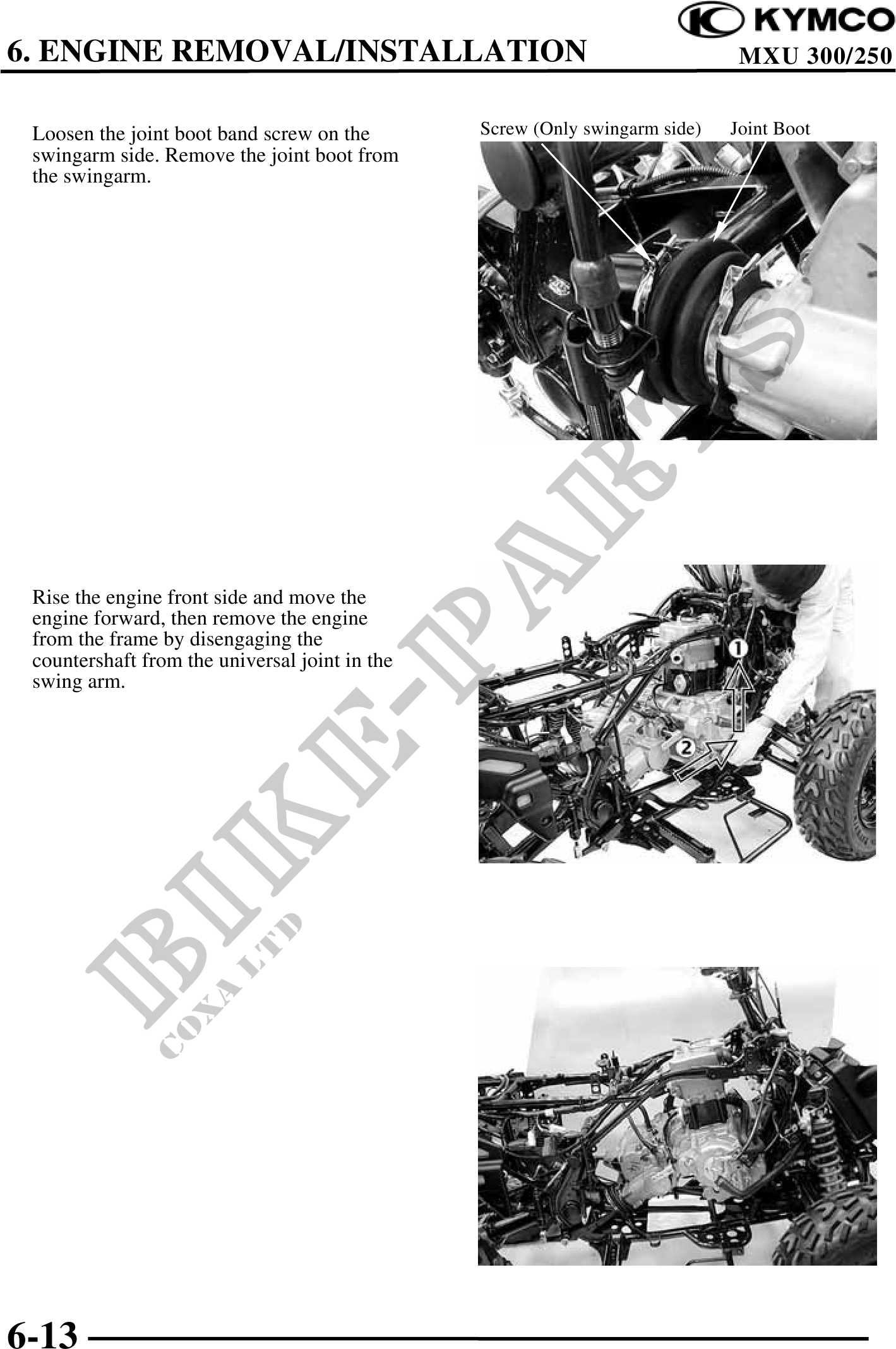

          6. ENGINE REMOVAL/INSTALLATION                                                MXU 300/250


 Loosen the joint boot band screw on the        Screw (Only swingarm side)   Joint Boot
 swingarm side. Remove the joint boot from
 the swingarm.




 Rise the engine front side and move the
 engine forward, then remove the engine
 from the frame by disengaging the
 countershaft from the universal joint in the
 swing arm.




6-13
