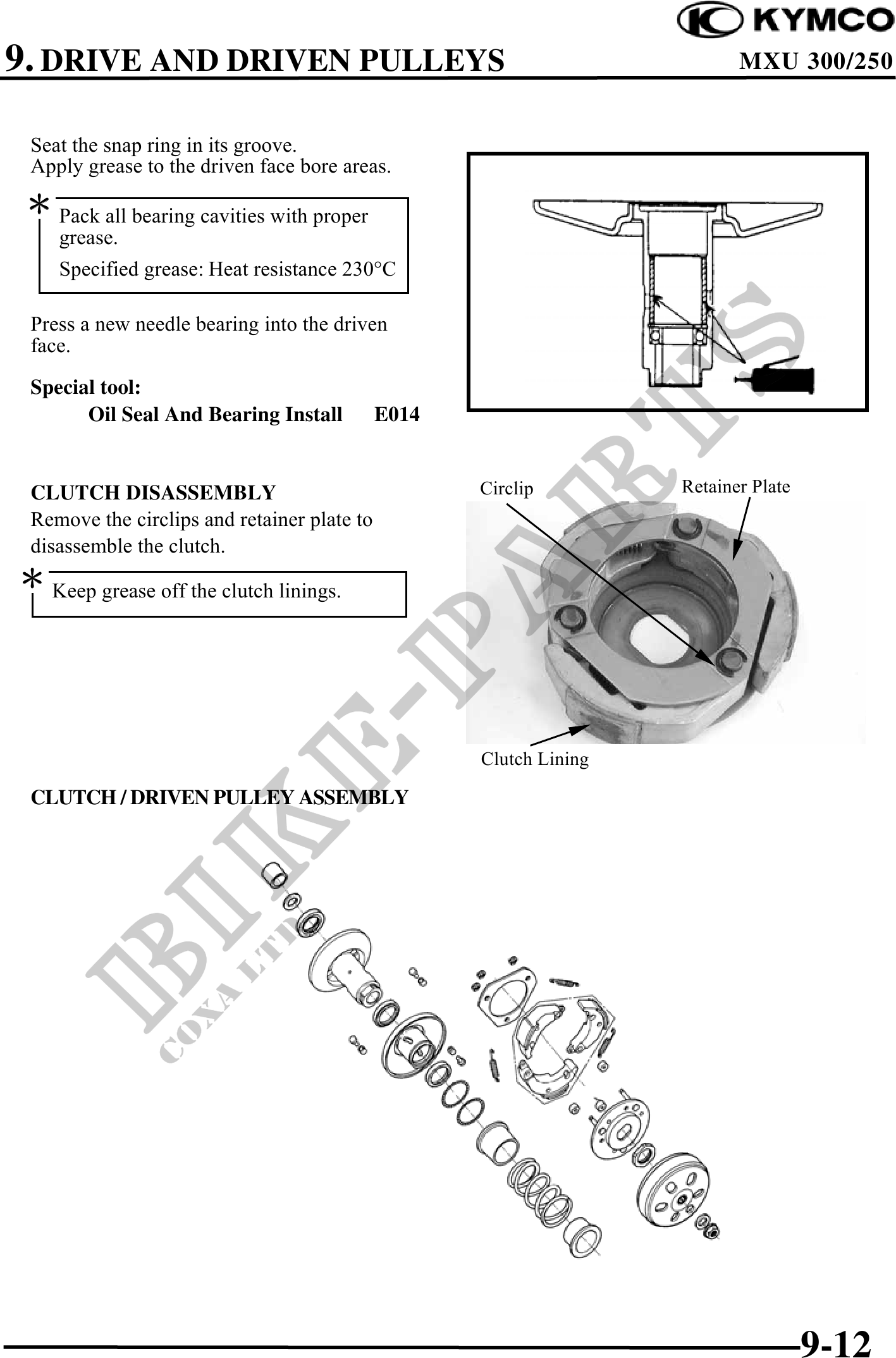

          9. DRIVE AND DRIVEN PULLEYS                                                MXU 300/250


 Seat the snap ring in its groove.
 Apply grease to the driven face bore areas.
 Pack all bearing cavities with proper
    grease.
    Specified grease: Heat resistance 230°C

 Press a new needle bearing into the driven
 face.

 Special tool:
       Oil Seal And Bearing Install          E014


 CLUTCH DISASSEMBLY                                 Circlip         Retainer Plate
 Remove the circlips and retainer plate to
 disassemble the clutch.
 Keep grease off the clutch linings.




                                                    Clutch Lining

 CLUTCH / DRIVEN PULLEY ASSEMBLY




                                                                                     9-12
