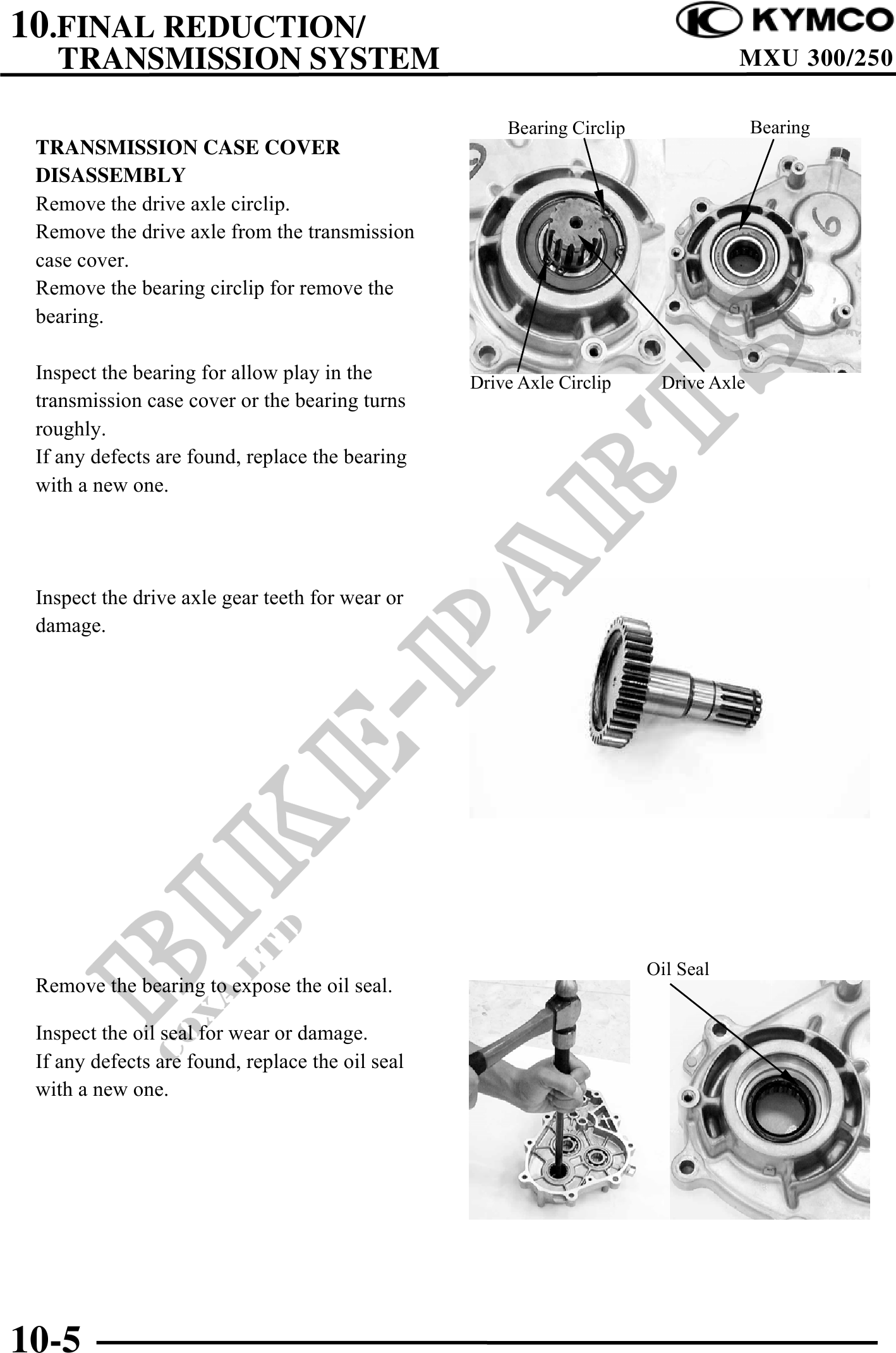

          10.FINAL REDUCTION/
   TRANSMISSION SYSTEM                                                             MXU 300/250

                                                      Bearing Circlip                 Bearing
 TRANSMISSION CASE COVER
 DISASSEMBLY
 Remove the drive axle circlip.
 Remove the drive axle from the transmission
 case cover.
 Remove the bearing circlip for remove the
 bearing.

 Inspect the bearing for allow play in the        Drive Axle Circlip     Drive Axle
 transmission case cover or the bearing turns
 roughly.
 If any defects are found, replace the bearing
 with a new one.




 Inspect the drive axle gear teeth for wear or
 damage.




                                                                        Oil Seal
 Remove the bearing to expose the oil seal.

 Inspect the oil seal for wear or damage.
 If any defects are found, replace the oil seal
 with a new one.




10-5
