          1. GENERAL INFORMATION                                                              MXU 300/250


 FRAME

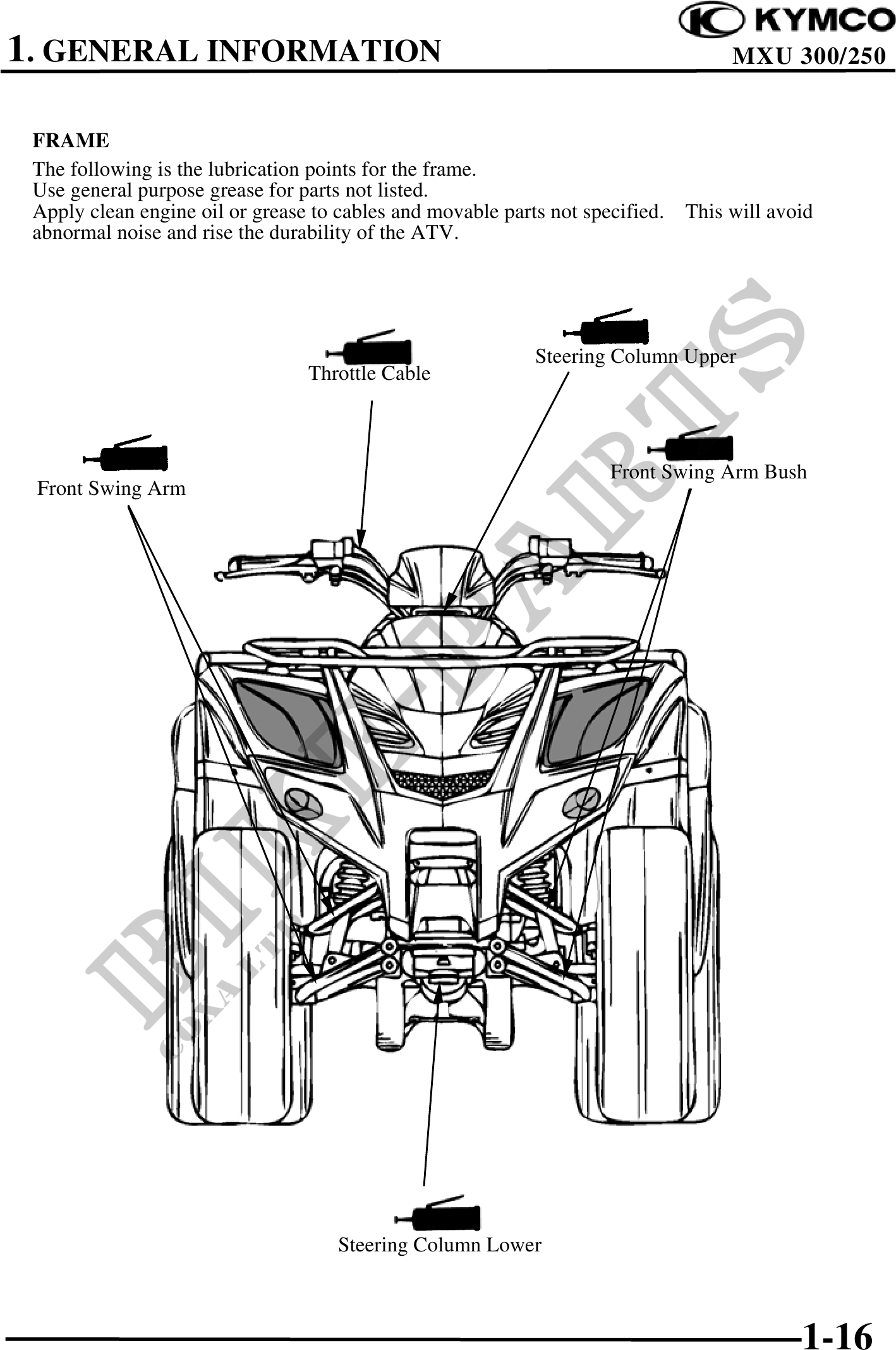

 The following is the lubrication points for the frame.
 Use general purpose grease for parts not listed.
 Apply clean engine oil or grease to cables and movable parts not specified.   This will avoid
 abnormal noise and rise the durability of the ATV.




                                                            Steering Column Upper
                                 Throttle Cable



                                                                     Front Swing Arm Bush
 Front Swing Arm




                                     Steering Column Lower



                                                                                            1-16
