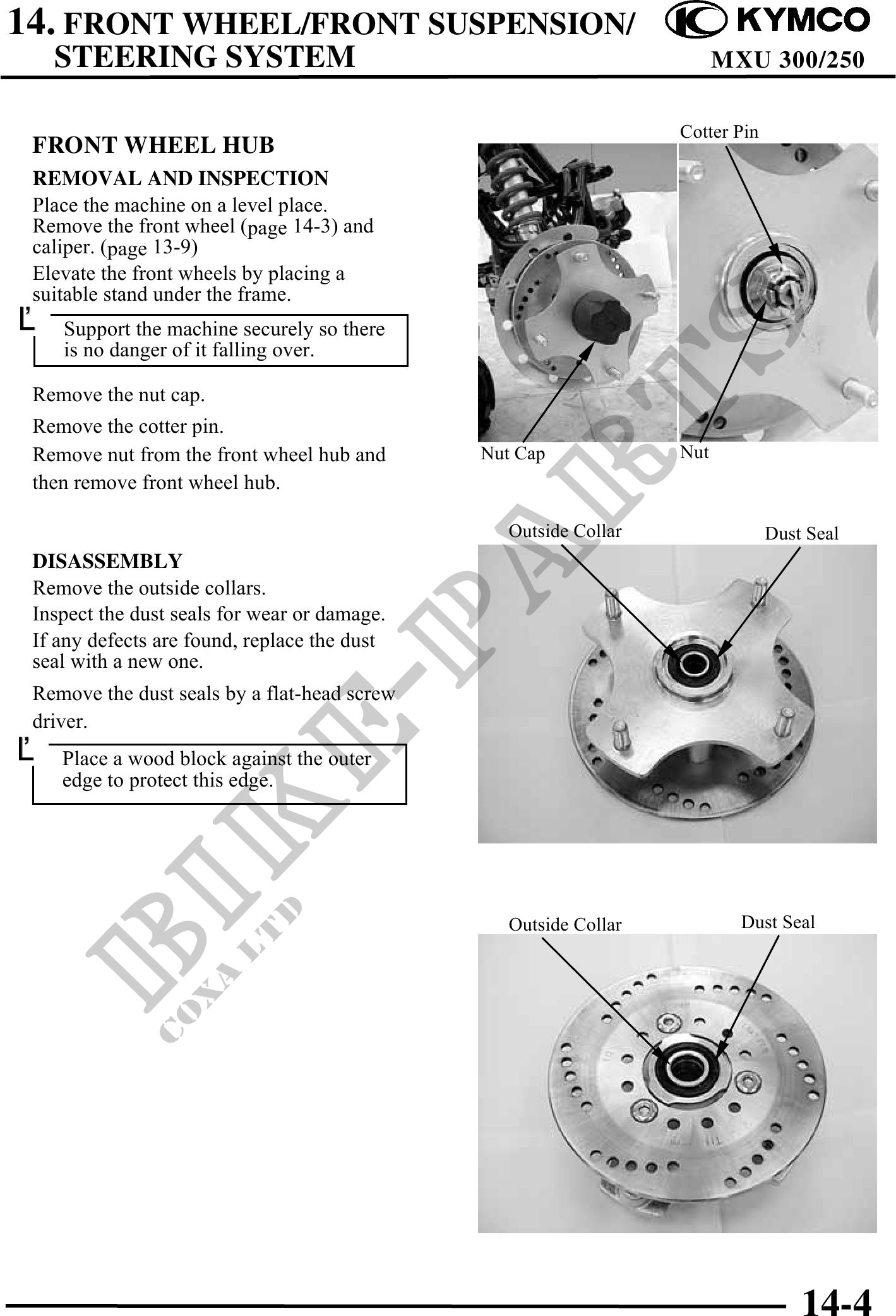

14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM MXU 300/250
Cotter Pin
FRONT WHEEL HUB
REMOVAL AND INSPECTION
Place the machine on a level place.
Remove the front wheel (page 14-3) and
caliper. (page 13-9)
Elevate the front wheels by placing a
suitable stand under the frame.
Support the machine securely so there
is no danger of it falling over.
Remove the nut cap.
Remove the cotter pin.
Remove nut from the front wheel hub and Nut Cap Nut
then remove front wheel hub.
Outside Collar Dust Seal
DISASSEMBLY
Remove the outside collars.
Inspect the dust seals for wear or damage.
If any defects are found, replace the dust
seal with a new one.
Remove the dust seals by a flat-head screw
driver.
Place a wood block against the outer
edge to protect this edge.
Outside Collar Dust Seal
14-4
